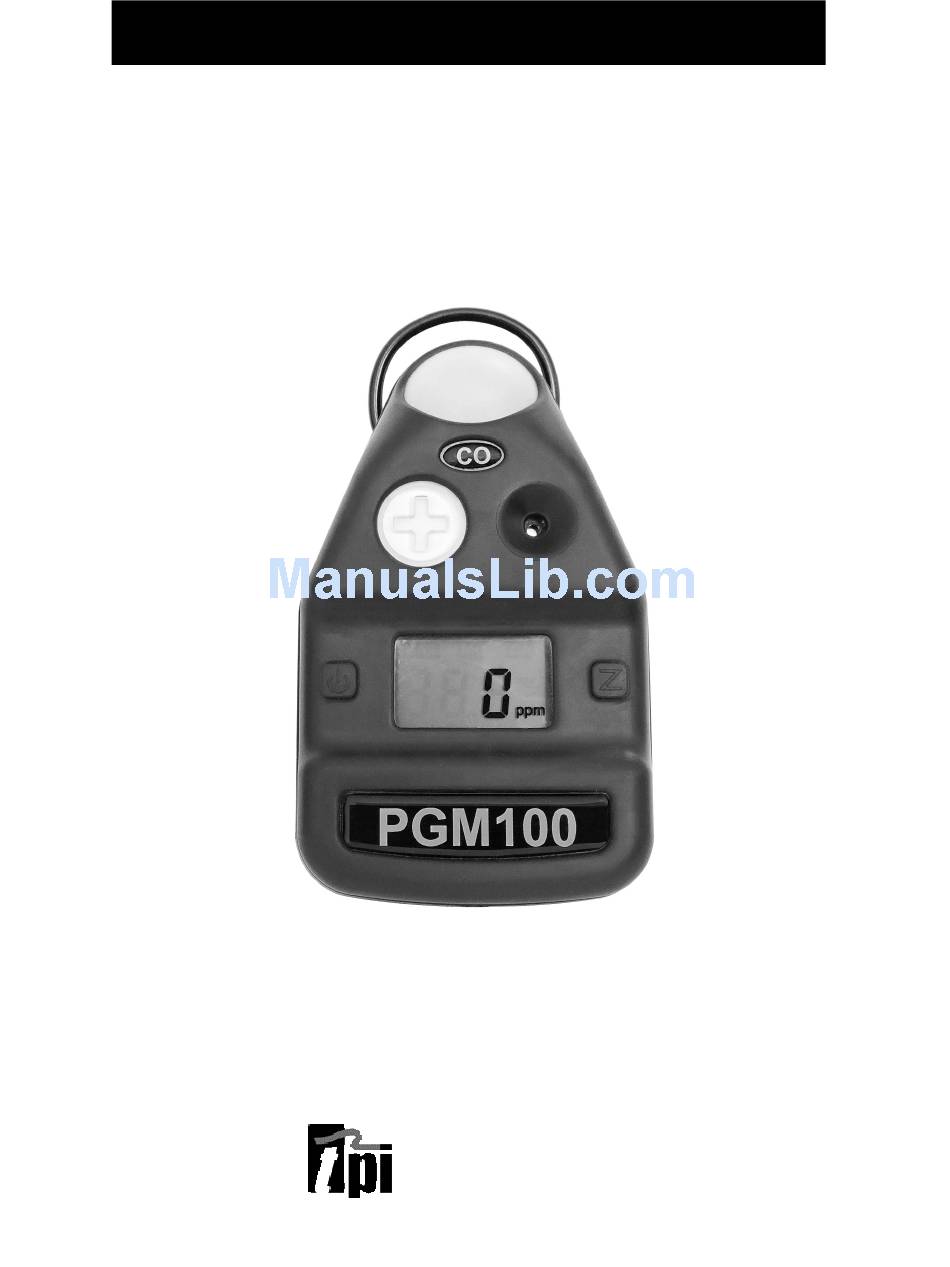

- Page 1 Single Gas Monitor PGM100 Carbon Monoxide The Value Leader www.tpi-thevalueleader.com...
-
Page 2: Table Of Contents
Contents Agency Listings........... 1 Safety Information..........2 General Description & Physical Specifications....3 Product Features..........4 Sensor Specifications, Alarm Settings, Bump Testing..5 Adjust Date / Time..........6 Alarm Adjustment..........7 Calibration............8 Operation and Use..........9-10 Warranty and Repair Policy........11... -
Page 3: Agency Listings
TPI PGM100 SINGLE GAS MONITOR INSTRUCTION MANUAL For use with Carbon Monoxide (CO) Read and understand instructions before use. Warning: To prevent ignition of flammable or combustible atmos- pheres, disconnect power before servicing. Warning: To reduce the risk of ignition of a flammable atmosphere, bat- teries must only be changed in an area known to be nonflammable. -
Page 4: Safety Information
Safety Information 1. IMPORTANT: Read and understand this manual prior to use. 2. IMPORTANT: Oxygen instruments will show high readings for up to 30 minutes if taken from warm air to cold temperatures and vice-versa. For best results let them "soak" in the ambient conditions prior to use. 3. -
Page 5: General Description & Physical Specifications
General Description The TPI PGM100 is an exceptionally rugged personal gas monitor. The PGM100 is available in single gas configurations only. Preset alarms pro- vide visual, audible and vibration alerts for low and high alarm conditions. Built-in "Time Weighted Average" (TWA) and "Short Term Exposure Limit"... -
Page 6: Product Features
PRODUCT FEATURES The PGM100 is constructed of durable ABS plastic. The top housing is additionally protected with a shock absorbing material to protect the instrument from the rigors of field use. The front of the instrument has an opening for the sensor and sounder. These are sealed to maintain the integrity of the IP65 rating. -
Page 7: Sensor Specifications, Alarm Settings, Bump Testing
1ppm 0-999 ALARMS The PGM100 has two basic styles of alarm. Low Alarms activate at two second intervals while High Alarms activate at one second intervals. The sound, LEDs and vibrating motor are sequenced during alarms. The alarm settings are controlled during the set-up of the product. All instruments are preset for the standards that need to be adhered for various locations and needs. -
Page 8: Adjust Date/Time
To adjust the PGM100 date/time manually, enter the menu by simultaneously pressing both buttons then release them. (The PGM100 will force the user to update the time if it is invalid during startup.) PGM100 will show "Pin". Press and release either button to show "900". -
Page 9: Alarm Adjustment
ALARM ADJUSTMENT 1. Press both buttons together when unit starts up and displays Gas Type and then release it OR. 2. From working display, push both buttons simultaneously and release. The unit will display Pin, press either key to display 900. 3. -
Page 10: Calibration
CALIBRATION Turn on the PGM100 until the working display is illuminated. Wait for 2 minutes prior to beginning the calibration process. 1. Prepare the approved gas cylinder and regulator with the calibration adapter attached. The flow should be 200-400 cc/min. -
Page 11: Operation And Use
OPERATION and USE Press the ON button to start the instrument in an area known to be gas free and with nor- mal oxygen content. The following will display as a normal start up sequence: 1. Activate all segments and icons 2. - Page 12 OPERATION and USE (Continued) To view the remaining operational time in continuous mode, press the zero button for 2-3 seconds and release. It will display the time remaining prior to performing auto zero. BAT indicates low battery output and service will be needed soon. Only factory trained personnel should perform any internal servicing.
-
Page 13: Warranty And Repair Policy
WARRANTY and REPAIR POLICY Your TPI PGM100 is warranted to be free from defects in materials and workmanship for a period of 2 years after purchase (excluding calibration). If within the warranty period, your instrument should become inoperative from such defects, the unit will be repaired or replaced at our option. This... - Page 14 Notes:...
- Page 15 Notes:...
- Page 16 Test Products International, Inc. 9615 SW Allen Blvd., Ste. 104 Beaverton, OR 97005 Tel: 503-520-9197 Fax: 503-520-1225 www.testproductsintl.com Test Products International, Ltd. 342 Bronte Road South, Unit #9 Milton Ontario Canada L9T5B7 Tel: 905-693-8558 Fax: 905-693-0888 www.testproductsintl.com Test Products International Europe Ltd. Longley House, International Drive Southgate, Crawley, West Sussex RH10 6AQ Tel:: +44 (0) 1293 530196 Fax: +44 (0) 1293 531870...
