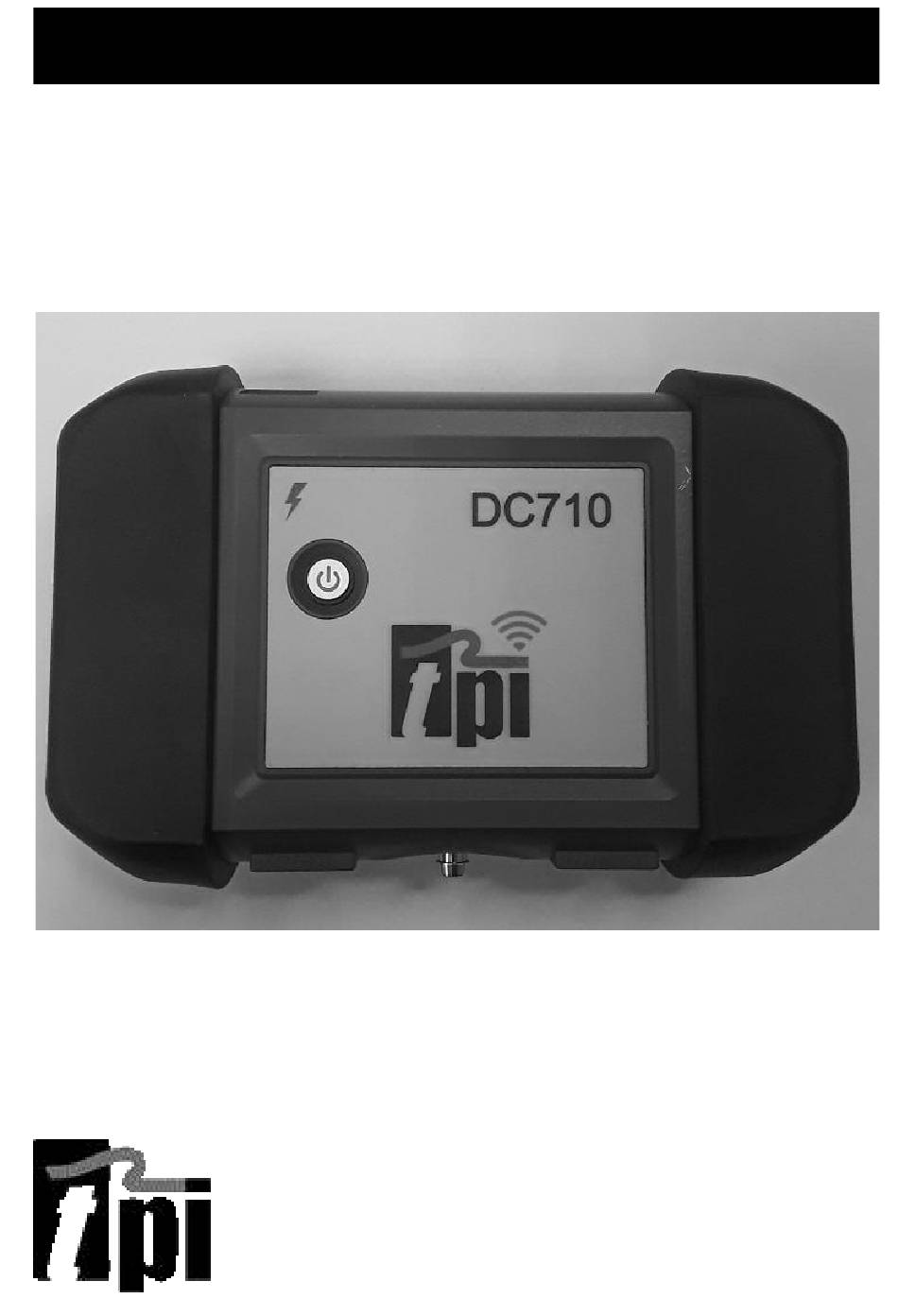

- Page 1 Smart Flue Gas Analyser DC710 to be used in conjunction with a Smart Phone/Tablet using the TPI View app. The Value Leader www.tpieurope.com...
-
Page 2: Table Of Contents
Calibration & Service Warranty Appendix A - General Maintenance & Function Tests 11, 12 & 13 Download the TPI View App Download the TPI View app from the Apple app store or the ® Google play store to begin using your DC710. ®... -
Page 3: Introduction
Introduction Thank you for purchasing TPI brand products. The TPI DC710 combustion analyser is state of the art and easy to use. Connect it to your smart device and you are ready to perform combustion analysis. The instrument is ruggedly constructed and comes with a 5 Year... - Page 4 General Overview (Continued) This manual will guide you through the functions of the TPI DC710 which will give you many years of reliable service. You should keep the battery of your DC710 charged so power is constantly being supplied to your sensors.
-

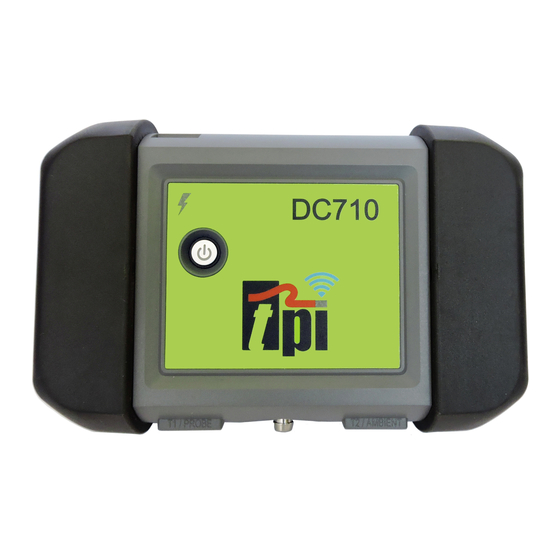

Page 5: Front View
End Caps Gas Sample Input Port Input Power Button Used to turn the DC710 on and off. Illuminates green when power is on. USB Charger Input Jack Connection for included charger. Charge Indicator Red = Charging. Green = Fully charged. -
Page 6: Back View
Label Magnets: Used to attach the DC710 to a metallic surface for hands free operation. Note: ensure to check that surface is not hot or the DC710 may be damaged. Hanging Hook: Used to hang the DC710 for hands free operation. -
Page 7: Basic Analyser Functions
It is important to keep battery power to the sensors in your analyser even when it is not in use. Your analyser battery status is indicated at the top right corner of the TPI View App. and visible at all times when connected to the app. - Page 8 Connecting to the App (Continued) Note: It is recommended you perform routine general maintenance on you analyser to ensure proper function. Please refer to Appendix A for general maintenance schedule and function tests. Make sure you are in a “clean air” environment and tap “Start Pump”.
-
Page 9: Turning The Analyser Off
19% and the power key is held down to turn the analyser off, the pump will continue to run until the CO and O2 are within limits. The Bluetooth Indicator Light, on the DC710, will Flash Pink whilst the Purge Period is running. This purge period is necessary to remove any Gas that is... -
Page 10: Specifications 8
SPECIFICATIONS Instrument Operating Temperature Range -10°C to 50°C (-14°F to 122°F) Battery Type Rechargeable Li-ion (3.7V/2600mA) Battery Life >6 hours typical Charger Port USB Connection Fuel Option (within View app) Natural Gas, Light Oil, Heavy Oil, LPG, Bituminous Coal, Anthracite Coal, Coke, Butane, Wood (Dry), Bagasse, Wood Pellet Dimensions... - Page 11 +/- (0.3% of rdg + 1°C) or +/- (0.3% of rdg + 2°F) * The thermocouple supplied (GK11M) has the ability to measure temperatures in the -45°C to 510°C (-50°F to 950°F) range. The DC710 accepts industry standard K-type thermocouple probes with sub-mini connectors. Bluetooth Communication Bluetooth Version: 4.2...
-
Page 12: Calibration & Service
CALIBRATION & SERVICE It is a requirement that your analyser be calibrated every 12 months. Please consult TPI Europe Ltd for further details or call our service department on the following number : - 01293 530196 Opt. 2 Alterntively visit : - https://www.tpieurope.com/annual-service-warranty-procedure/... - Page 13 Signs of dirty or water saturated filters are a slow pump, when the flue probe is connected, and measurements that take longer than normal. TPI analyzers use three filters to protect the pump and sensors. The first filter to check is the A763 mini pump protection filter. (see picture...
-
Page 14: Appendix A - General Maintenance & Function Tests 11, 12
Pump Operation Check 1. Turn the analyser on as outlined on page 5 and connect to the TPI View app. Do not connect anything to the inlet. Turn the pump on by tapping “Start Pump” prior to proceeding to step 2. - Page 15 NOTE: Perform this check after performing the Pump Operation Check outlined on the previous page. 1. Turn the analyser on as outlined on page 5 and connect to the TPI View app. Do not connect anything to the inlet. Turn the pump on by tapping “Start Pump”...
- Page 16 Test Products International, Inc. 9615 SW Allen Blvd., Ste. 104 Beaverton, OR 97005 Tel: 503-520-9197 www.testproductsintl.com Test Products International, Ltd. 342 Bronte Road South, Unit #6 Milton Ontario Canada L9T 5B7 Tel: 905-693-8558 www.tpicanada.com Test Products International Europe Ltd. Longley House, International Drive Southgate, Crawley, West Sussex RH10 6AQ Tel:: +44 (0) 1293 530196 www.tpieurope.com...
