- Page 1 Flue Gas Analyzer DC710 The Value Leader www.tpi-thevalueleader.com...
-
Page 2: Table Of Contents
Carbon Monoxide Facts......27 Appendix F Carbon Monoxide Limits in Ambient Air Chart.. 28 Download the TPI View App ® ® Download the TPI View app from the Apple app store or the Google play store to begin using your DC710. -
Page 3: Introduction
This warranty does not cover sensors damaged through misuse of the analyzer. You should keep the battery of your DC710 charged so power is con- stantly being supplied to your sensors. The following guidelines will help prevent damage to your sensors: Always use the mini pump filter when testing flue gases. - Page 4 Always keep the A796 water trap / filter assembly clean and replace the filter as necessary. Replacement filter part number is A762F. This manual will guide you through the functions of the TPI DC710 which will give you many years of reliable service.
-

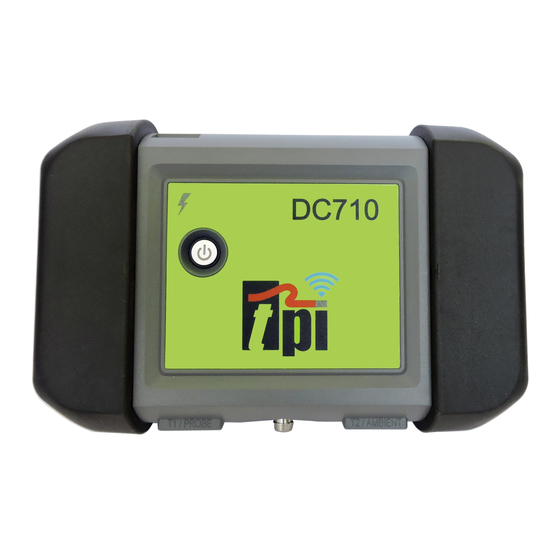

Page 5: Instrument Overview
End Cap Gas Sample Input Port Input Power Button Used to turn the DC710 on and off. Illuminates green when power is on. USB Charger Input Jack Connection for included charger. Charge Indicator Red = Charging. Green = Fully charged. -
Page 6: Back View
Hanging Hook Magnets Information Label Magnets: Used to attach the DC710 to a metallic surface for hands free operation. Note: ensure to surface is not hot or the DC710 may be damaged. Hanging Hook: Used to attach hang the DC710 for hands free operation. -
Page 7: Basic Analyzer Functions
Start the TPI View App and tap the center icon to begin scanning for TPI smart instruments. A list of devices will be seen Select the DC710 to connect to by tapping on the desired device. Once connected the Bluetooth indicator on the DC710 will turn blue and the app will display measurement information. -
Page 8: Turning The Analyzer Off
Stop Pump icon will be active. Once the pump is off close the app or discon- nect from the DC710. Press and hold the power key on the DC710 to turn the analyzer off. If the app is disconnected before the CO is... -
Page 9: Combustion Analysis Overview
To ensure accurate and consistent combustion tests, it is important gas and temperature samples be taken at the same location. This is easy with the TPI flue probe because the temperature sensor is an integral part of the probe. -
Page 10: Combustion Test Procedure
Please refer to Appendix A for general maintenance schedule and function tests. 1. Turn the DC710 on and connect it to the TPI View app as outlined on page 5. Make sure you are in a “clean air” environment (no CO) and tap “Start Pump”. - Page 11 IMPORTANT: Prior to taking a sample, the device under test should be on and at operating temperature. Putting the flue probe in the sample area prior to starting the device may cause saturation of the sensors due to the higher initial concentration of carbon monoxide that may be encountered upon start up.
-
Page 12: Typical Test Locations
TYPICAL TEST LOCATIONS Atmospheric Gas Fired Fan Assist Boiler / Furnace Typical Test Locations Figure 1 It is important to use manufacturers recommended test locations whenever possible. - Page 13 TYPICAL TEST LOCATIONS Condensing Boiler / Furnace Typical Test Locations Figure 2 It is important to use manufacturers recommended test locations whenever possible.
- Page 14 TYPICAL TEST LOCATIONS Atmospheric Forced Air Furnace Typical Test Locations Carbon Monoxide Test all exhaust ports at the top of the heat exchanger. Figure 3 It is important to use manufacturers recommended test locations whenever possible.
- Page 15 4. Insert the flue probe into the sample hole of the device under test. The probe tip should be in the middle of the flue pipe or exhaust stream. Ensure the In-Line Filter / Water Trap hangs below the analyzer in the proper vertical position when readings are being taken.
- Page 16 5. The combustion analysis readings will be displayed on the TPI View app. Allow the readings to stabilize. The date, time, battery status, last calibration date, and calibration due date are displayed at the top. The fuel type is selectable by tapping on the down arrow next to the diplayed fuel.
- Page 17 6. A report of the test results can be generated and sent via email or printed to the optional A740BT Bluetooth printer. Tap “Create Report” to start the report generation process. A box will pop up asking you to enter a report reference. This is like the job name or number of the report.
-
Page 18: Typical Test Results
TYPICAL TEST RESULTS Power Burners (Gas Fired) Oxygen 3% to 6% Carbon Monoxide Less than 100ppm (air free) Stack Temperature to 500 ° F ° F Draft -0.15 inH2O Power Burners (Oil Fired) Oxygen 4% to 7% Carbon Monoxide Less than 100ppm (air free) Stack Temperature to 625 °... -
Page 19: Specifications
SPECIFICATIONS Instrument Operating Temperature Range 14°F to 122°F (-10°C to 50°C) Battery Type Rechargeable Li-ion (3.7V/2600mA) Battery Life >6 hours typical Charger Port USB Connection Pre-Programmed Fuels Natural Gas, LPG, Light Oil, Heavy Oil, Bituminous Coal, Coke, Butane, Wood, Bagasse Dimensions 150mm x 100mm x 58mm Weight... - Page 20 +/- (0.3% of rdg + 2°F) or +/- (0.3% of rdg + 1°C) * The thermocouple supplied (GK11M) has the ability to measure tempera- tures in the -50°F to 950°F range. The DC710 accepts industry standard K- type thermocouple probes with sub-mini connectors.
-
Page 21: Calibration & Service
**Carbon Monoxide Sensor User / Factory Replaceable A760S **Sensor replacement requires calibration gas. Sensors for the DC710 can be replaced in the field. Please see appendix C for the replacement procedure. Factory calibration is recommended once per year. WARRANTY Your TPI DC710 Flue Gas Analyzer is guaranteed free from defects in materi- als and workmanship for 3 Years from the date of purchase. - Page 22 TPI analyzers use three filters to protect the pump and sensors. The first filter to check is the A763 mini pump protection filter. (see picture below)
- Page 23 The saturated filter can be left to dry and reused later. Pump Operation Check 1. Turn the analyzer on as outlined on page 5 and connect to the TPI View app. Do not connect anything to the inlet. Turn the pump on by tapping “Start Pump”...
- Page 24 NOTE: Perform this check after performing the Pump Operation Check outlined on the previous page. 1. Turn the analyzer on as outlined on page 5 and connect to the TPI View app. Do not connect anything to the inlet. Turn the pump on by tapping “Start Pump”...
-
Page 25: Appendix B A773 Sulfur Filter Installation & Maintenance. 21
Appendix B: A773 SULFUR FILTER INSTALLATION & MAINTENANCE When performing combustion tests on oil fired equipment it is important to use the optional A773 sulfur filter. Failure to do so can result in incorrect and readings. This filter also protects the sensors from the affects of sulfur. The A773 does not have to be removed when working with other types of fuels. - Page 26 Appendix B: A773 SULFUR FILTER INSTALLATION & MAINTENANCE 4. Beginning on the “Flue Probe” side of the A773 sulfur filter, pull the yellow thermocouple cord out of the channel of the flue probe tube. Pull out approx- imately the length of the water trap that was removed. 5.
-
Page 27: Appendix C Field Sensor Replacement
Appendix C: Field Sensor Replacement The DC710 uses field replaceable smart sensors. When you receive a sensor it will come pre-calibrated. Factory calibration once per year is still impor- tant to ensure your analyzer is functioning properly on all functions and ranges. - Page 28 Appendix C: Field Sensor Replacement (continued) 4. Once the back housing is removed you will have full access to the CO and O2 sensors. (see picture below) Carbon Monoxide Oxygen (O2) (CO) sensor sensor Sensor color is Sensor color is red.
- Page 29 Appendix C: Field Sensor Replacement (continued) 6. Once the hoses are off the sensor, pull the sensor straight out of the holder (see below). Smart Sensor Sensor connector after removal 7. Install the new sensor into the holder by orienting the flat corner of the sen- sor with the flat corner of the sensor holder.
- Page 30 Reattach the rubber end caps by pressing them on. Note that one cap has a hole in it and must line up with the exhaust hole on the side of the DC710. 11. Wait 24 hours prior to starting the analyzer. Make sure battery is charged or leave the DC710 on the charger so the sensors are under power.
-
Page 31: Appendix D Technical Notes
Appendix D: Technical Notes Note 1: Several factors affect combustion efficiency. Dirty or clogged air filters reduce the amount of air available for combustion therefore reducing efficiency. Obstructions in the flue block exhaust gases and alter the air mixture in the combustion chamber which reduces efficiency. -
Page 32: Appendix E Carbon Monoxide Facts
Appendix E: CARBON MONOXIDE FACTS Carbon Monoxide (CO) is invisible, odorless, and tasteless. It is the byproduct of combustion and levels are elevated when there is incomplete combustion. Sources of CO include: Unvented kerosene and gas space heaters Leaking chimneys & furnaces Gas water heaters Back drafting from furnaces Wood stoves&... - Page 33 Appendix F: Carbon Monoxide in Ambient Air Chart This chart contains maximum exposure levels and times for carbon monoxide. This is a general guidline only. It is recommended you check with your local government for guidelines in your area. Concentration of Toxic Symptoms CO in the air The maximium allowable concentration for...
- Page 34 Notes:...
- Page 35 Notes:...
- Page 36 Test Products International, Inc. 9615 SW Allen Blvd., Ste. 104 Beaverton, OR 97005 Tel: 503-520-9197 www.testproductsintl.com Test Products International, Ltd. 342 Bronte Road South, Unit #6 Milton Ontario Canada L9T 5B7 Tel: 905-693-8558 www.tpicanada.com Test Products International Europe Ltd. Longley House, International Drive Southgate, Crawley, West Sussex RH10 6AQ Tel:: +44 (0) 1293 530196 www.tpieurope.com...
