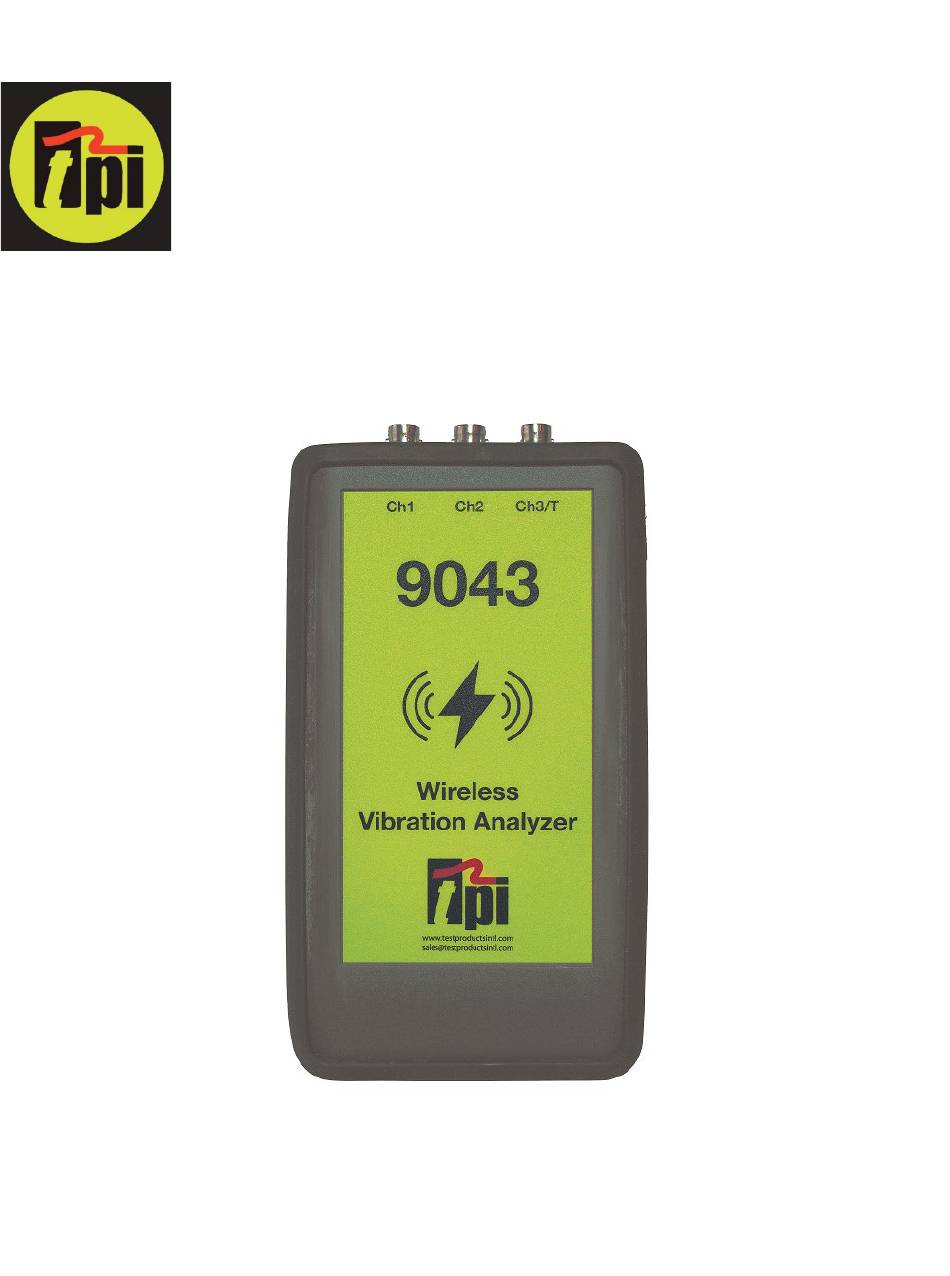

- Page 1 9043 Wireless Three Channel Vibration Analyzer & Data Collector Instruction Manual...

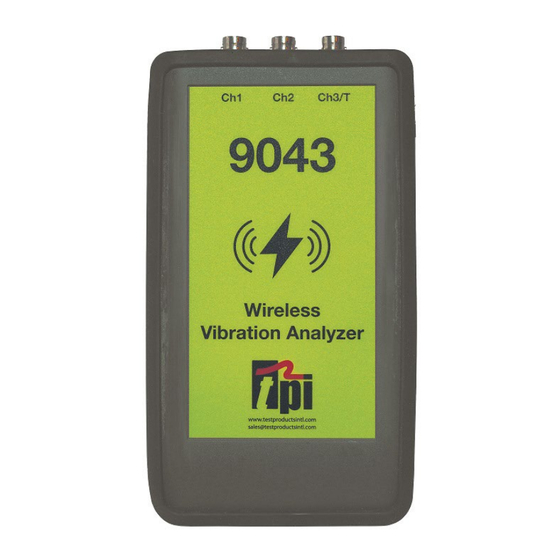

- Page 2 Description The 9043 is a 3-channel vibration analyzer and data collector with 2 plane balancing capability. It features true simultaneous 3 channel capture for versatility, 24-bit A/D converter for high resolution, and wireless communication to an Android tablet running the TPI Ultra III app.
- Page 3 Overview Front View BNC connectors for Channel 1, 2, and 3 inputs When performing 2 plane balancing, Channel 3 is used as a Tachometer input. Protective rubber boot with magnets and belt loop Wireless charging, Place this area onto wireless charging pad. Side View Power Indicator LED Bluetooth Indicator LED...
- Page 4 9043 is placed on the pad. Please see the charge indication icon below. USB-C Charging Connect the USB-C cable to the USB-C connection port on the 9043. Plug the USB puck into a suitable outlet. See the 9043 USB-C connection port below.
- Page 5 Using the 9043 1. Turn the 9043 on. The 9043 is ready to be connected to an Android tablet running the Ultra III app. 2. Open the Ultra III app on the Android tablet & enter Meter Mode. The Ultra III app will search for the 9043.
-
Page 6: Specifications
SPECIFICATIONS 9043 Signal Parameters Simultaneous Channel Capture 3 Channels Input options IEPE (Powered and Unpowered) DC or AC voltage Amplitude +/-0.5V, +/-5V, +/-30V Frequency Range / Resolution 1-Channel Mode l DC to 30kHz l 100 to 51,200 Lines 3-Channel Simultaneous l DC to 10kHz l 100 to 12,800 Lines... -
Page 7: Standard Accessories
To Obtain Warranty Performance: Include with the product: your name, address, phone number, written description of the problem and proof of purchase date. Carefully package and return to: TPI, Inc. TPI Canada TPI, Europe Ltd.. 9615 SW Allen Blvd. 342 Bronte Rd. S., Unit 6 Unit 6, Rutherford Way Industrial... - Page 8 Test Products International, Inc. 9615 SW Allen Blvd., Ste. 104 Beaverton, OR 97005 Tel: 503-520-9197 www.testproductsintl.com Test Products International, Ltd. 342 Bronte Road South, Unit #6 Milton Ontario Canada L9T 5B7 Tel: 905-693-8558 www.tpicanada.com Test Products International Europe Ltd. Rutherford Way Industrial Estate Rutherford Way Manor Royal Crawley...
