Interval Where?
As required
Maintenance
Version 1.0.1 dated 30 / 08 / 2012
What? How?
Replacing the
halogen lamp

Tilt the mill head a little to the right. This way you can
easily remove the lamp cover in order to allow replacing
of the halogen lamp.

Plug a small screw driver into the recess between the
lamp holder and the lamp cover.

By slightly turning the screw driver you can remove the
lamp cover.

Pull the halogen pin base lamp with a cloth and replace
the halogen lamp.
Type:
Halogen pin base lamp, Osram 12V - 10W, base G4
Original operating instructions
OPTIMUM
M A S C H I N E N - G E R M A N Y
Lamp holder
Halogen pin base lamp
Lamp cover

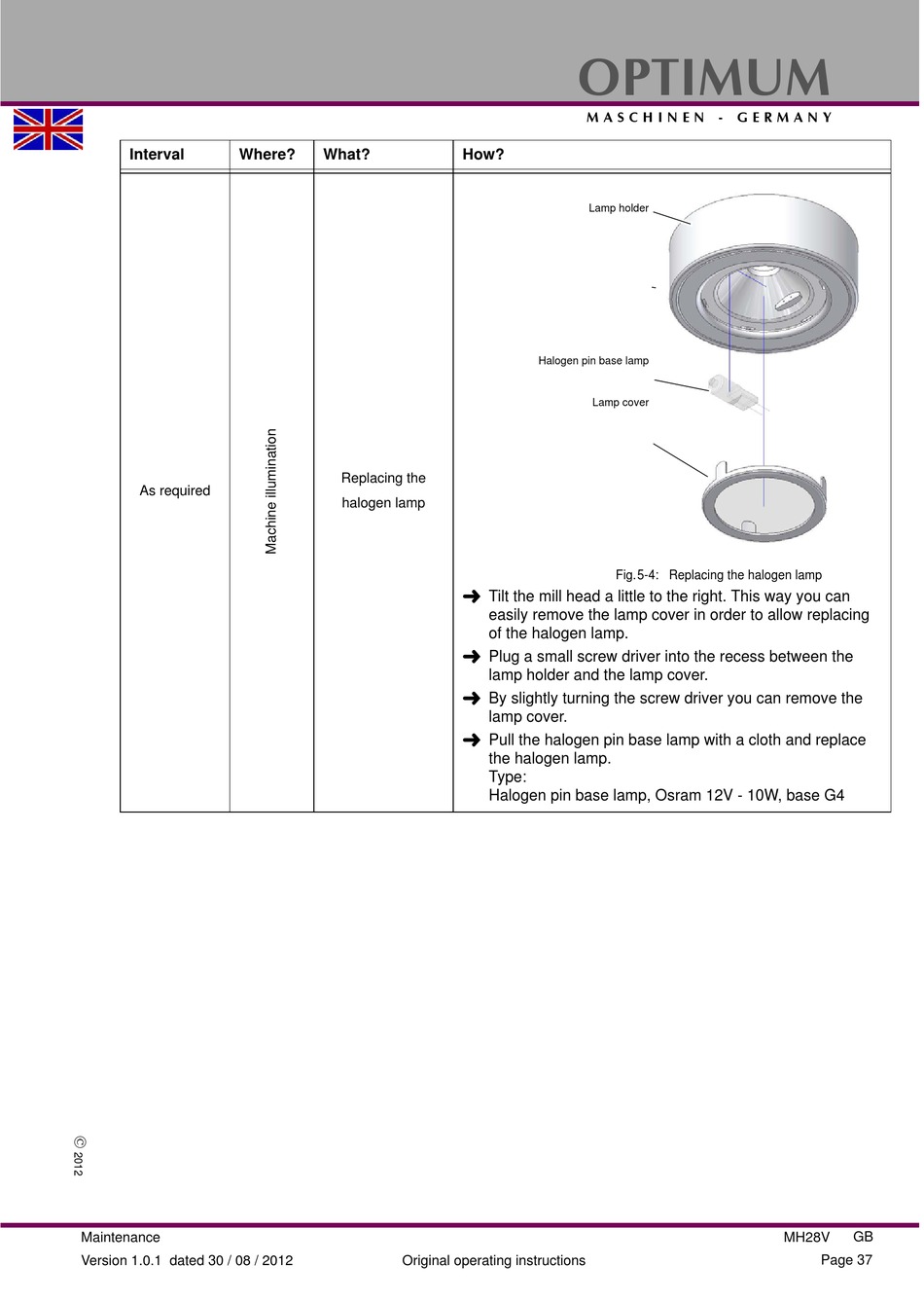

Fig.5-4: Replacing the halogen lamp
