4.5 VLAN

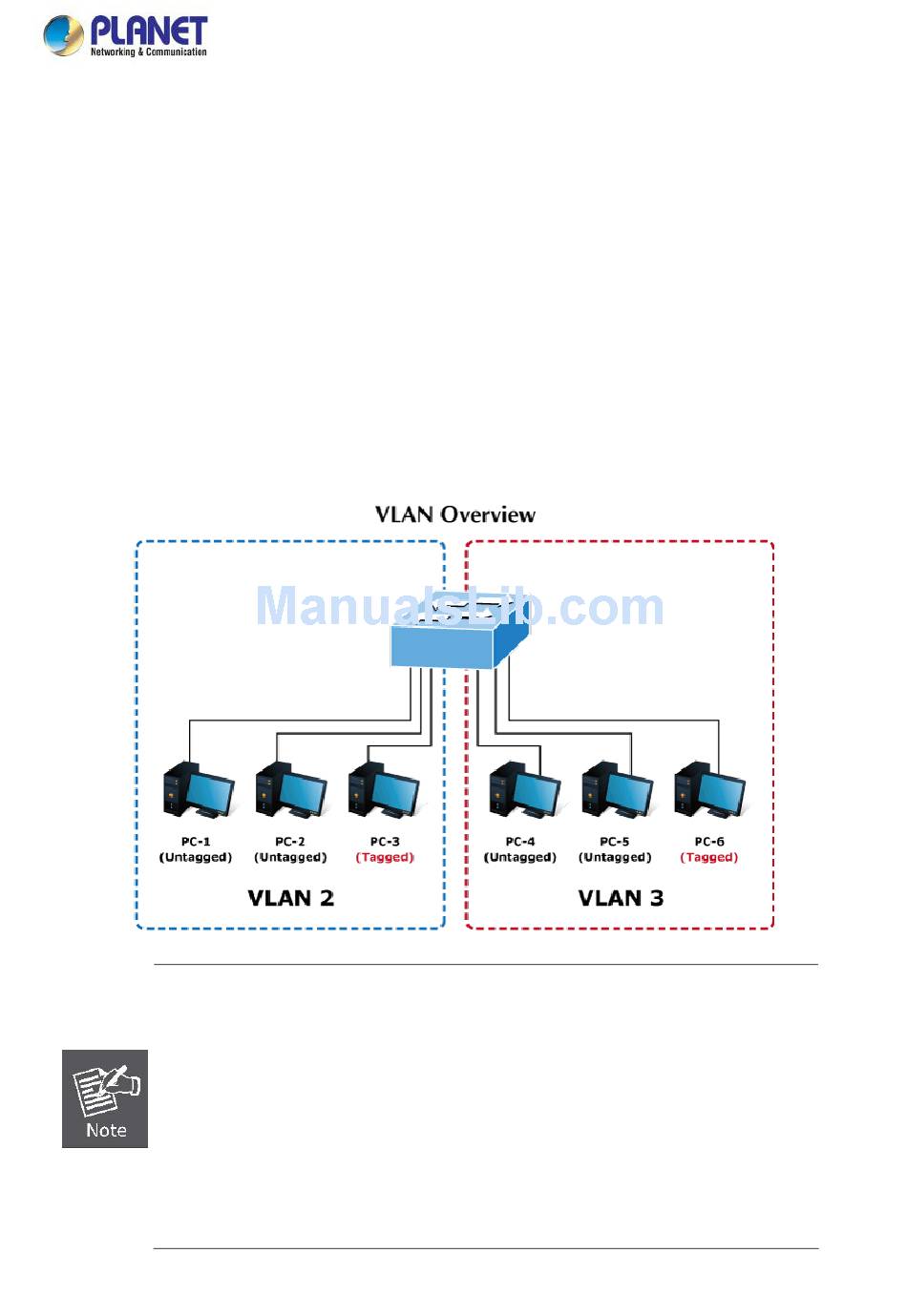

4.5.1 VLAN Overview

A Virtual Local Area Network (VLAN)
la yout. VLAN can be used to combine any collection of LAN segments into an autonomous user group that appears as a single
L AN. VLAN also logically segment the network into different broadcast domains so that packets are forwarded only between
p orts within the VLAN. Typically, a VLAN corresponds to a particular subnet, although not necessarily.
V LAN can enhance performance by conserving bandwidth, and improve security by limiting traffic to specific domains.
A VLAN is a collection of end nodes grouped by logic instead of physical location. End nodes that frequently communicate with
each other are assigned to the same VLAN, regardless of where they are physically on the network. Logically, a VLAN can be
equated to a broadcast domain, because broadcast packets are forwarded to only members of the VLAN on which the
broadcast was initiated.
1. No matter what basis is used to uniquely identify end nodes and assign these nodes VLAN
membership, packets cannot cross VLAN without a network device performing a routing
function between the VLAN.
2. The LRP Managed Switch supports IEEE 802.1Q VLAN. The port untagging function can be
used to remove the 802.1 tag from packet headers to maintain compatibility with devices that
are tag-unaware.
3. The LRP Managed Switch's default is to assign all ports to a single 802.1Q VLAN named
DEFAULT_VLAN. As new VLAN is created, the member ports assigned to the new VLAN will
be removed from the DEFAULT_ VLAN port member list. The DEFAULT_VLAN has a VID = 1.
