Summary of Contents for CYP EL-5600

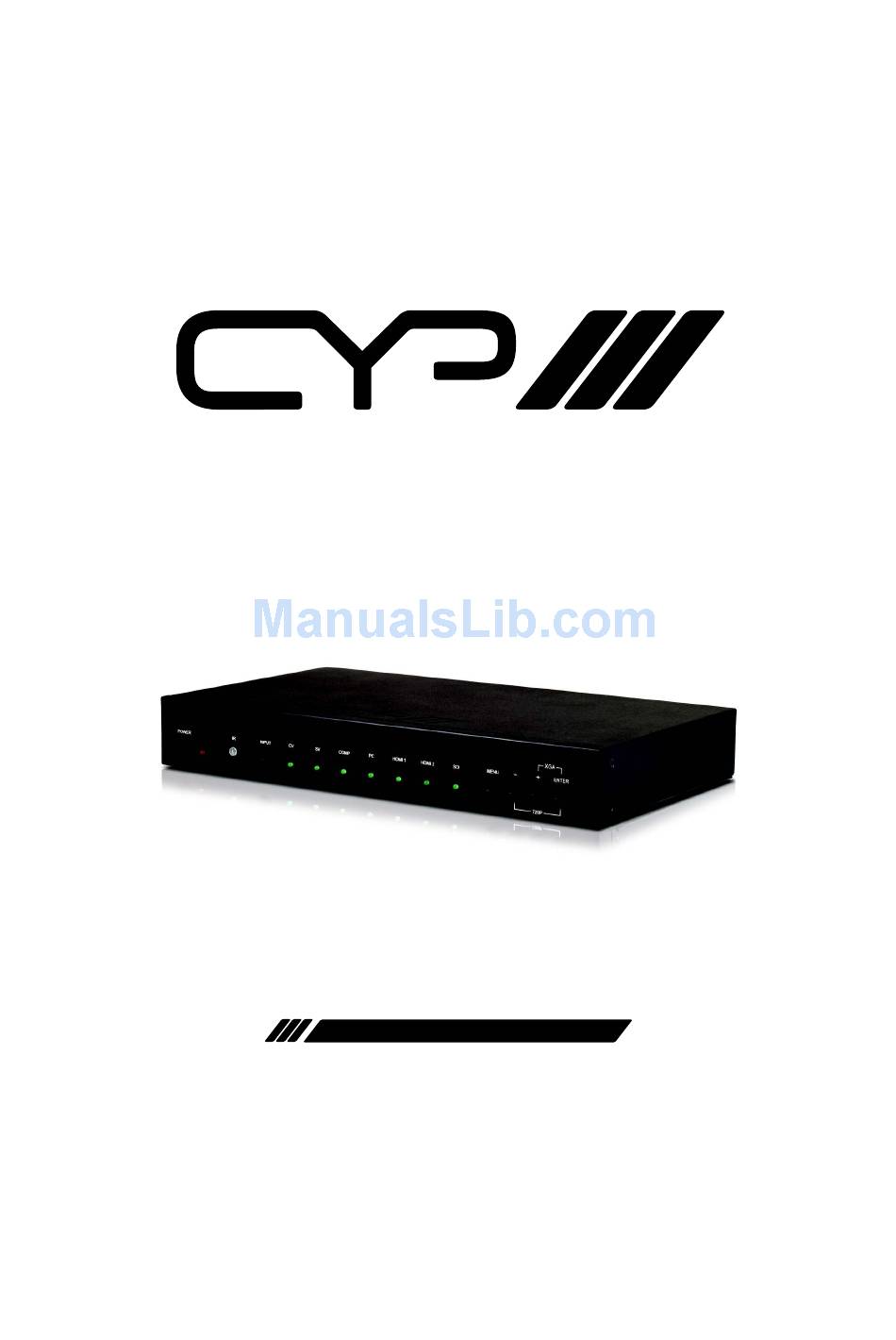

  • Page 1 EL-5600 Multi Format Presentation Switch (including SDI) OPERATION MANUAL...
  • Page 3: Copyright Notice

    DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of re, electrical shock and injury to persons.
  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 Remote Control ........10 6.4 RS-232 Protocols ........11 6.5 RS-232 Commands ........12 6.6 OSD MENU ..........14 7.
  • Page 6: Introduction

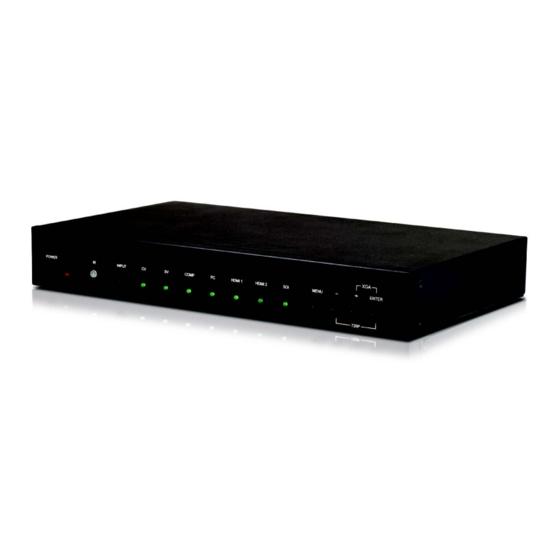

    1. INTRODUCTION The EL-5600 presentation switch is an advanced HDMI, PC, SDI, Composite, S-Video and Component switcher/scaler. This device can scale and switch input sources and display them via the HDMI and VGA/ HD outputs simultaneously with their associated audio signals at a wide range of output resolutions (up to 1080p or WUXGA reduced blanking).
  • Page 7: Features

    5. FEATURES Supports HDMI, Composite Video, S-Video, PC (VGA)/HD (Component) and SDI inputs Supports HDMI and VGA/Component (with adaptor) outputs Supports SDI loop-through output Supports analogue stereo, optical and coaxial digital inputs and optical digital output, analogue stereo output or embedding to HDMI output Supports conversion of multiple video formats and audio input to HDMI or PC/HD and analogue stereo outputs...
  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel CSLUX-300I DIGITAL VIDEO SCALER 720P POWER & POWER LED: Press this button to switch the device on or to set it to standby mode. Once the device is connected to an active power supply the LED will illuminate and the device will switch on automatically.
  • Page 9: Rear Panel

    6.2 Rear Panel RS232 OUTPUT INPUT OPTICAL OPTICAL DC 5V PC/HD LOOP OUTPUT HDMI HDMI 1 HDMI 2 Cr/Pr Cb/Pb OUTPUT: L/R: Connect to an ampli er or active speakers for audio output in stereo format. HDMI: Connect to an HDMI display or ampli er for video and/or audio output.
  • Page 10: Remote Control

    L/R: Connect to source's L/R output with 3.5mm mini-jack for audio signal conversion. PC/HD: Connect to a PC/Laptop source for video signal input with a D-Sub 15pin cable. OPTICAL: Connect to a source's optical output for audio signal conversion. YCbCr/HDPbPr + L/R: Connect to source equipment such as a DVD player for both video and audio signal conversion.
  • Page 11: Rs-232 Protocols

    OK & : Press OK to con rm the selection or press the arrow buttons to navigate the OSD menu. 6.4 RS-232 Protocols EL-5600 Remote Control Assignment Assignment Baud Rate: 9600bps Data bit: 8 bits...
  • Page 12: Rs-232 Commands

    6.5 RS-232 Commands Command Description Contents S SOURCE 0~6 Select input source SDI(0) / HDMI1(1) / HDMI2(2) / YPBPR(3) / VIDEO(4) / R SOURCE Inquire input source SVIDEO(5)/ PC(6) S OUTPUT 1~25 Select output timing 640*480(1)/800*600(2)/ 1024*768(3)/1280*768(4)/ R OUTPUT Inquire output timing 1360*768(5)/1280*720(6)/ 1280*800(7)/1280*1024(8)/ 1440*900(9)/1400*1050(10)/1...
  • Page 13 Command Description Contents S AUDIODELAY 0~3 Audio delay setting OFF(0) / 40ms (1) / 110ms(2) / 150ms(3) R AUDIODELAY Inquire audio delay setting S AUDIOMUTE 0/1 Audio mute setting ON(0) / MUTE(1) R AUDIOMUTE Inquire audio mute setting S SDIAUDIO 0~3 SDI Audio channel setting CH1CH2(0), CH3CH4(1) CH5CH6(2), CH7CH8(3)
  • Page 14: Osd Menu

    6.6 OSD MENU Layer Layer Layer Layer 640×480 60 800×600 60 1024×768 60 1280×768 60 1360×768 60 1280×720 60 1280×800 60 1280×1024 60 1440×900 60 1400×1050 60 1680×1050 60 OUTPUT 1600×1200 60 1920×1080 60 1920×1200 60 720×480P 60 1280×720P 60 1920×1080i 60 1920×1080p 60 720×576p 50...
  • Page 15 Layer Layer Layer Layer COLOUR R OFFSET G OFFSET B OFFSET CONTRAST 0~60 COLOUR BRIGHTNESS 0~60 0~60 SATURATION 0~60 SHARPNESS 0~30 MIDDLE HIGH VOLUME 0~100 40ms DELAY 110ms 150ms SOUND MUTE CH1 – CH2 AUDIO CH3 – CH4 SDI AUDIO CH5 –...
  • Page 16: Connection And Installation

    7. CONNECTION AND INSTALLATION HD Satelite Receiver SDI Camera HDMI, Optical Digital and Analogue Audio Inputs PC or RS-232 Blu-ray/DVD Player Control System Input HDMI, Composite Video & Analogue Audio Inputs RS-232 Set-top Box RS232 OUTPUT OPTICAL OPTICAL INPUT DC 5V PC/HD LOOP OUTPUT HDMI...
  • Page 17: Speci Cations

    8. SPECIFICATIONS 8.1 Technical Speci cations Input Ports 1×Composite,1×S-Video, 1×Component, 1×PC/HD, 2×HDMI, 1×SDI, 1×Optical, 4×Analogue Stereo (L/R), 1×USB (service only), 1xMini-jack (service only), 1xRS-232 (Control Only) Output Ports 1×HDMI, 1×PC/HD, 1× SDI (Loop out), 1×Optical, 1×Analogue Stereo (L/R) Supports Input Resolutions Up to UXGA &...
  • Page 18: Supported Input/Output Resolution

    8.2 Supported Input/Output Resolutions Input CV/SV Component HDMI Resolution NTSC/PAL 480i/576i 480p/576p 720p@50/60Hz 1080i@50/60Hz 1080p@50/60Hz VGA@60/72/75Hz SVGA@56/60/72/75Hz XGA@60/70/75Hz SXGA@60/75Hz UXGA@60Hz 1280x800@60Hz 1680x1050RB@60Hz 1920x1080@60Hz...
  • Page 19 Output PC/HD HDMI Resolution 480p/576p (HD) 720p@50/60Hz (HD) 1080i@50/60Hz (HD) 1080p@50/60Hz (HD) VGA@60Hz SVGA@60Hz XGA@60Hz SXGA@60Hz UXGA@60Hz 1280x768@60Hz 1280x800@60Hz 1360x768@60Hz 1400x1050@60Hz 1440x900@60Hz 1680x1050@60Hz 1920x1200@60Hz...
  • Page 20: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM EDID Extended Display Identi cation Data HDCP High-bandwidth Digital Content Protectionl HDMI High-De nition Multimedia Interface HDTV High-De nition Television On-screen Display (Menu) Serial digital interface Universal Serial Bus Video Graphics Array WUXGA Wide Ultra Extended Graphics Array...
  • Page 24 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.01...
