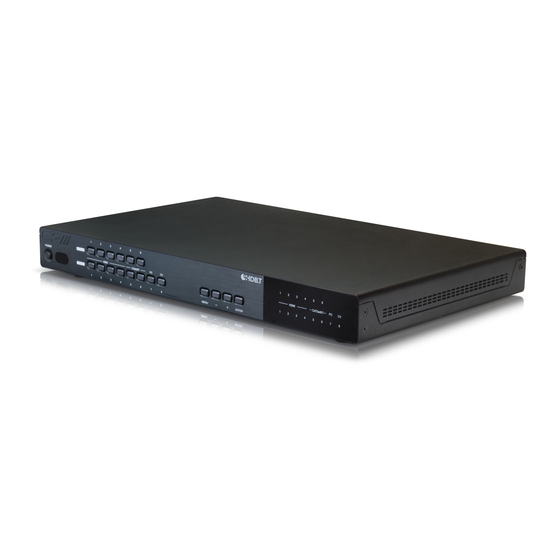

EL-5500-HBT
8 x 4 HDBaseT™ / HDMI / VGA Presentation Switch
(With switchable digital bypass output)
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EL-5500-HBT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP EL-5500-HBT

Summary of Contents for CYP EL-5500-HBT

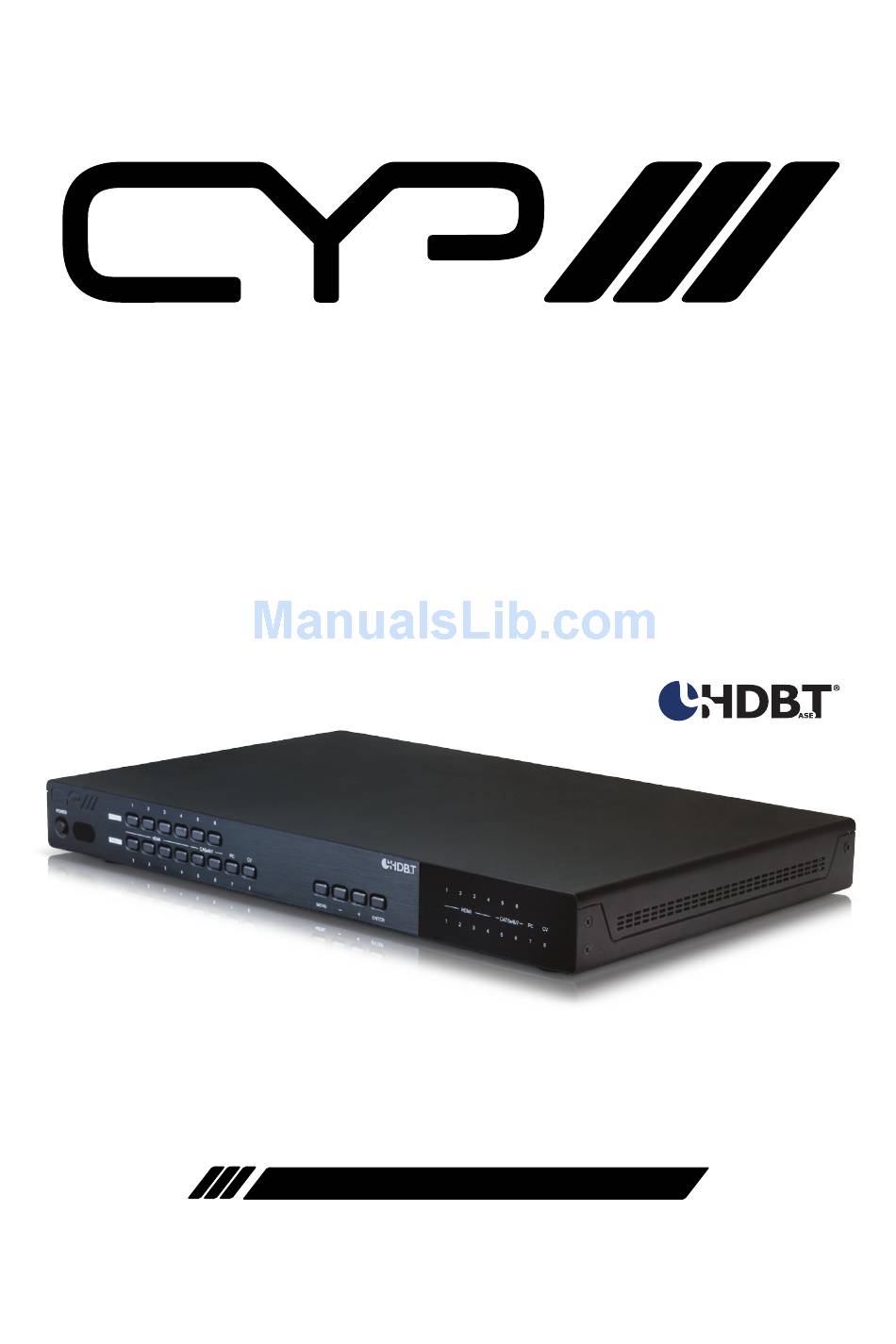

  • Page 1 EL-5500-HBT 8 x 4 HDBaseT™ / HDMI / VGA Presentation Switch (With switchable digital bypass output) OPERATION MANUAL...

  • Page 3: Copyright Notice

    DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 Remote Control ........10 6.4 RS-232 Pin Assignment......11 6.5 RS-232/Telnet Commands ....12 6.6 OSD Menu ..........15 7.

  • Page 6: Introduction

    Both digital and analogue stereo audio is supported via a built-in DAC (Digital to Analogue Converter) and ADC (Analogue to Digital Converter) providing flexible audio signal integration. The EL-5500-HBT is the perfect solution for any educational or commercial environment requiring integration of multiple sources and signal formats to two HDMI displays.

  • Page 7: Features

    5. FEATURES HDMI, HDCP, and DVI compliant Digital to Analogue & Analogue to Digital Audio conversion (DAC/ADC) Supported Resolutions: HDTV: 480i to 1080p PC: VGA to WUXGA Aspect Ratio Adjustment Motion Adaptive De-interlace (3D) Video Noise Reduction Underscan / Overscan Selection Picture Adjustment Settings HDBaseT Input/Outputs support PoE (Power over Ethernet) through to compatible connected receiver...

  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel BYPASS POWER HDMI CA5e/6/7 HDMI CAT5e/6/7 INPUT MENU ENTER POWER: Press this button to turn ON the device and the LED will illuminated. IR Window: This IR receiver receives only the remote control signal from the packaged included remote control.

  • Page 9: Rear Panel

    6.2 Rear Panel IR OUT IR IN AUDIO AUDIO 1 AUDIO 2 AUDIO 3 AUDIO 4 AUDIO 7 AUDIO INPUT DSP PROG. OUTPUT COAX BYPASS RS-232 CAT5e/6/7 CAT5e/6/7 CAT5e/6/7 SERVICE 1 SERVICE 2 HDMI 1 HDMI 2 HDMI HDMI 1 HDMI 2 HDMI 3 HDMI 4...

  • Page 10: Remote Control

    INPUT PC & AUDIO: Connect this port to PC/Laptop with audio signal for input signal selecting. INPUT CV: Connect this port to source equipment such as video player or Set-Top-Box for input signal selecting. RS-232: Connect from PC/Laptop for RS-232 command sending to control the device.

  • Page 11: Rs-232 Pin Assignment

    ADJUST: Auto PC adjust. RESET: Resets the unit to factory default settings. BYPASS: Selects the source for the Bypass output. 6.4 RS-232 Pin Assignment EL-5500-HBT Remote Control Assignment Assignment ► ◄ Baud Rate: 19,200bps Data Bit: 8 bits Parity: None...

  • Page 12: Rs-232/Telnet Commands

    6.5 RS-232/Telnet Commands COMMAND DESCRIPTION S SOURCE 1~8 1=HDMI 1 5=HDBT 1 2=HDMI 2 6=HDBT 2 3=HDMI 3 7=PC 4=HDMI 4 8=VIDEO R SOURCE Reports the numerical equivalent for SOURCE setting (as above) S OUTPUT 1~25 0=640×480 11=1600×1200 1=800×600 12=1920×1080 13=1920×1200 2=1024×768 3=1280×768...
  • Page 13 COMMAND DESCRIPTION R BRIGHTNESS Reports the numerical equivalent for BRIGHTNESS setting S HUE 0~60 Setups the numerical equivalent for HUE setting (as left) R HUE Reports the numerical equivalent for HUE setting S SATURATION 0~60 Setups the numerical equivalent for SATURATION setting (as left) R SATURATION Reports the numerical equivalent for SATURATION...
  • Page 14 COMMAND DESCRIPTION S HDBTUART 0/1 0=ENABLE 1=DISABLE R HDBTUART Reports the numeric equivalent for HDBTUART setting (as above) S AUTOSCAN 0/1 0=ENABLE 1=DISABLE R AUTOSCAN Reports the numeric equivalent for AUTOSCAN setting (as above) S BYPASS 1-6 1=HDMI / 2=HDMI2 / 3=HDMI3 /4=HDMI4 / 5=HDBT1 / 6=HDBT2 R BYPASS Reports the numeric equivalent for BYPASS setting...

  • Page 15: Osd Menu

    6.6 OSD Menu 3rd Layer Remark Layer Layer DISPLAY OUTPUT 640X480 60 800x600 60 1024x768 60 1280x768 60 1360x768 60 1280x720 60 1280x800 60 1280x1024 60 1440x900 60 1400x1050 60 1680x1050 60 1600x1200 60 1920x1080 60 1920x1200 60 720X480P 60 1280X720P 60 1920X1080I 60 1920X1080P 60...
  • Page 16 3rd Layer Remark Layer Layer OVER SCAN DISPLAY SIZE FULL FOLLOW INPUT PAN SCAN LETTER BOX UNDER 2 UNDER 1 MODE INFO INFO INPUT HDCP (HDMI mode only) AUTO SETUP Yes/No(Default No) (PC mode (PC mode only) 0~60 only) V_POSITION 0~60 PHASE 0~31...
  • Page 17 3rd Layer Remark Layer Layer 0~60(Default 30) COLOR CONTRAST 0~60(Default 30) BRIGHTNESS 0~1023(Default 512) COLOR 0~1023(Default 512) 0~1023(Default 512) R OFFSET 0~1023(Default 512) G OFFSET 0~1023(Default 512) B OFFSET 0~1023(Default 512) 0~60(Default 30) 0~60(Default 30) SATURATION SHARPNESS 0~30(Default 0) MIDDLE HIGH 0~100(Default 100) AUDIO...
  • Page 18 3rd Layer Remark Layer Layer OSD Setting back to SETUP FACTORY RESET factory default KEY LOCK POWER SAVE DHCP IP MODE STATIC IP ADDRESS 0.0.0.0~ SET STATIC IP 255.255.255.255 (Default 192.168.0.1) SUBNET MASK 0.0.0.0~ 255.255.255.255 (Default 255.255.255.0) Def. GATWAY 0.0.0.0~ 255.255.255.255 (Default 192.168.0.254) BLUE...

  • Page 19: Connection Diagram

    7. CONNECTION DIAGRAM...

  • Page 20: Specifications

    8. SPECIFICATIONS 8.1 Input Resolution Support Frequency bandwidth Up to 10.2Gbps Input Ports 4 x HDMI 4 x L/R 2 x CAT5e/6/7 1 x PC + L/R 1 x CV+L/R 2 x USB (Service only) 1 x LAN 1 x RS-232 1 x IR Output ports 2 x HDMI...

  • Page 21: Input Resolution Support

    8.2 Input Resolution Support INPUT RESOLUTION COMP HDMI 480i/576i   480p/576p   720p@50/60 Hz   1080i@50/60 Hz   1080p@50/60 Hz   VGA@60/72/75 Hz   SVGA@56/60/72/75 Hz   XGA@60/70/75 Hz   SXGA@60/75 Hz ...

  • Page 22: Output Resolution Support

    8.3 Output Resolution Support OUTPUT RESOLUTION PC/HD HDMI 480p/576p  720p@50/60 Hz  1080i@50/60 Hz  1080p@50/60 Hz  VGA@60 Hz   SVGA@60 Hz   XGA@60 Hz   SXGA@60 Hz   UXGA@60 Hz   1280×768@60 Hz ...
  • Page 24 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
