ABB Sensyflow iG Operating Manual page 17

Terminals for cable shield
PROFIBUS lines

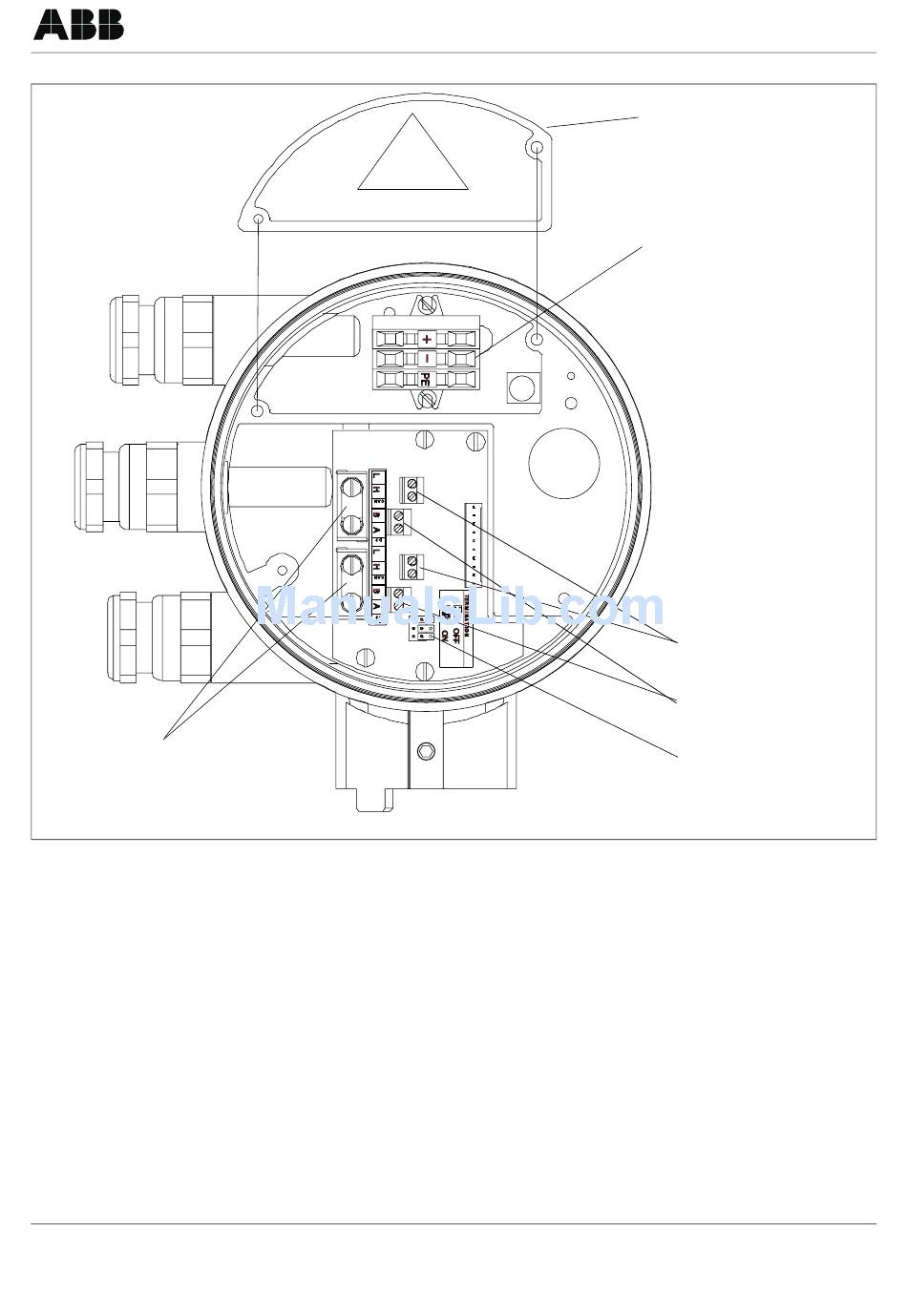

Fig. 5-2 Sensyflow iG terminal box with direct PROFIBUS connection
Caution
Before connecting the power supply lines make sure that the device is operated with the correct supply
voltage (see device rating plate)!
First you connect the grounding cable to the PE terminal, then the actual supply lines at the power supply
terminal block.
Incoming and outgoing PROFIBUS cables are connected to terminal A (green wire) and B (red wire) re-
spectively.
Terminals L and H must not be connected (CAN bus, for internal use only).
Note To ensure safe operation of the assembly and to reduce EMC interference to a minimum, the cable shield
of the PROFIBUS lines should be connected to the corresponding terminals in the connection box.
For additional EMC interference suppression the housing grounding screw (M6 thread) should be used
to establish a low-resistance connection (wire cross-section 4 mm²).
Note When disconnecting the PROFIBUS cable from the unit, the entire bus connection is interrupted!
Device versions with interruption-free disconnection capability: see next section.
42/14-39 EN Sensyflow iG, Version 1.00
!
Z-20276
Electrical installation
Additional terminal block
cover
Power supply
Terminal block
Power supply
+ Terminals/phase
– Terminal/neutral
PE protective earth
CAN bus
Terminals L, H
(internal use only)
PROFIBUS DPV1
terminals A, B
Jumper for PROFIBUS
termination resistor
17
