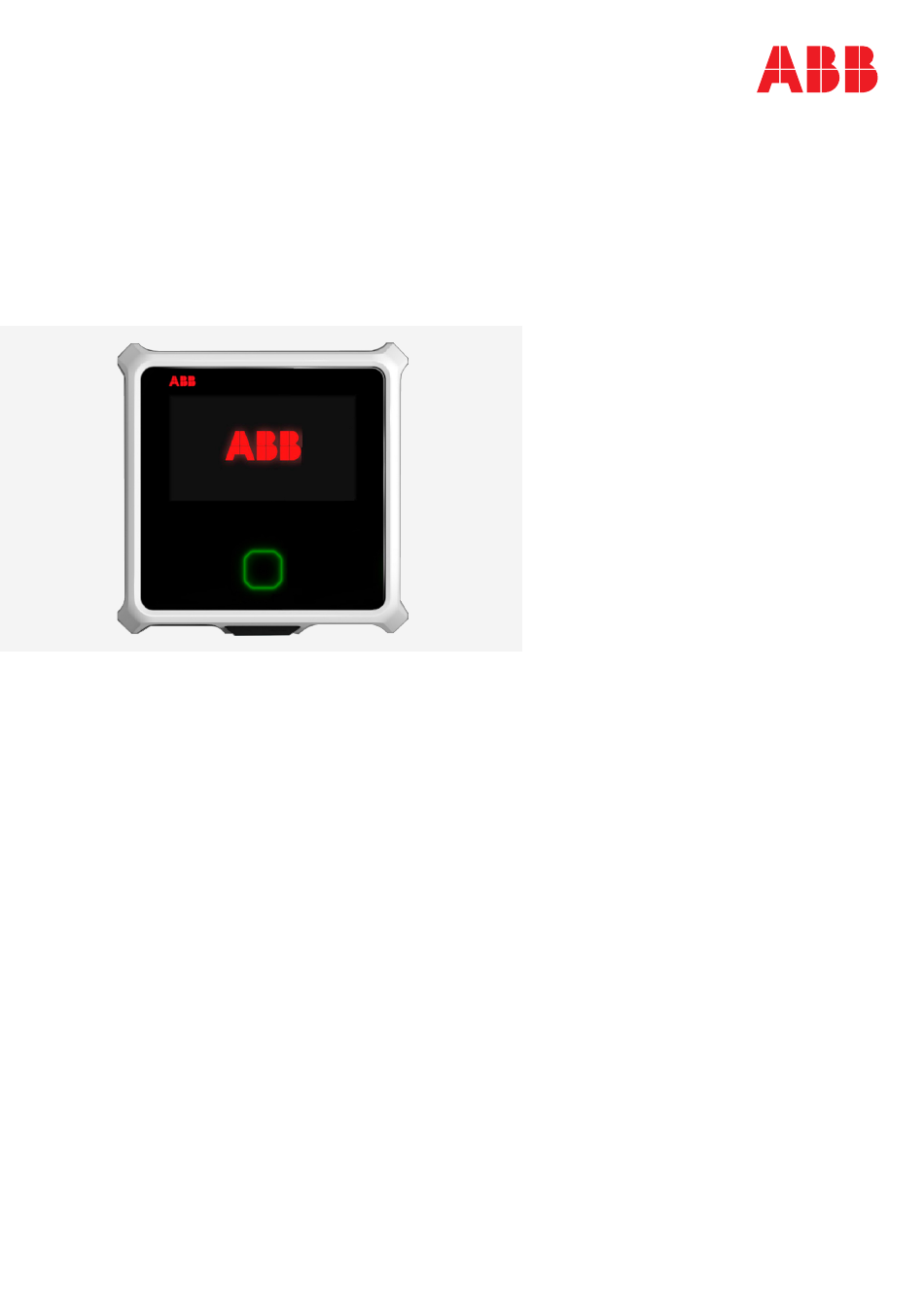

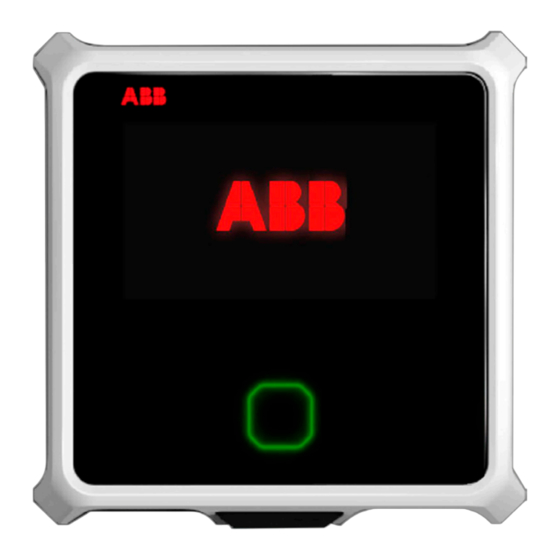

SWICOM
Operational Manual
—
Disclaimer
The data, examples and diagrams in this manual are
included solely for the concept or product
description and are not a statement of guaranteed
properties. All persons responsible for applying the
equipment described in this manual must ensure
that each intended application is suitable and
acceptable, and that all applicable safety or other
operational requirements are complied with. In
particular, all risks in applications where a system
failure and/or product failure would create a risk of
harm to property or persons (including but not
limited to personal injuries or death) shall be the
sole responsibility of the person or entity who/that
applies the equipment, and such parties are hereby
requested to ensure that all measures are taken to
exclude or mitigate such risks.
This document has been carefully checked by ABB
but discrepancies cannot be completely ruled out. If
are detected, the reader is kindly requested to
notify the manufacturer. With the exception of
explicit contractual commitments, in no event shall
ABB be responsible or liable for any loss or damage
resulting from use of this manual or application of
the equipment.
Contents
1. Introduction
2. Environmental aspects
3. Local Human Machine Interface
4. RXplore
5. Glossary
—
Conformity
The products listed in the document comply with
the directive of the Council of the European
Communities implemented by the laws of the
Member States relating to electromagnetic
compatibility (EMC Directive 2004/108/EC) and
concerning electrical equipment for use within
specified voltage limits (Low-voltage directive
2006/95/EC). Such conformity is the result of tests
conducted by ABB in accordance with product
standards EN50263 and EN60255-26 for the MEC
directive and with product standards EN 60255-1
and EN 60255-27 for the low voltage directive.
4
5
6
20
27
Advertisement
Table of Contents
Related Manuals for ABB SWICOM
Summary of Contents for ABB SWICOM
- Page 1 With the exception of explicit contractual commitments, in no event shall ABB be responsible or liable for any loss or damage resulting from use of this manual or application of the equipment.
-
Page 2: Safety Information
Non-observance can result in death, personal injury or substantial property damage. Only a competent electrician must be allowed to perform the electrical installation tasks. National and local electrical safety regulations must always be followed. SWICOM must be earthed... -
Page 3: Table Of Contents
D I S T R I B U T I O N S O L U T I O N S — Table of contents 1. Introduction 4. RXplore 1.1. Intended recipients 4.1. Introduction 1.2. Preamble 4.2. Connecting 1.3. Revision history 4.3. -
Page 4: Introduction
— 1. Introduction Related documentation SWICOM operation manual is intended for users who want to operate SWICOM and navigate through Product series- and product specific manuals can be the information available in the device. downloaded from the ABB web site. -
Page 5: Environmental Aspects
SWICOM complies with the maximum values for lead 2.2.2 Software disposal (Pb), mercury, hexavalent chromium, As general rule when the SWICOM device needs to polybrominated biphenyls (PBB), polybrominated be decommissioned, all sensitive information needs diphenyl ethers (PBDE) and cadmium. to be deleted from the device as well as from the Pursuant to EU-regulation REACH that came into SWICOM Configuration Tool. -
Page 6: Local Human Machine Interface
— 3. Local Human Machine Interface Initialization SWICOM has a LCD screen and a home LED button on the bottom that shows the overview status of the When SWICOM is turned on it lands on the home monitored assets in the switchgear. -
Page 7: Home Page
• KPIs: a list of all key performance indicators [see 3.6] used to calculate the asset status • Measurements: a list of all measurements collected by SWICOM from the configured sensors. • Files: a list of PRPD files saved on SWICOM [3.8]... -
Page 8: Navigation
To navigate through sections described in 3.3 and to Displayed items can contain a measured value or a access all information provided by SWICOM there’s a coloured bar indicating a different status (see next common friendly interface shown here: sections 3.6 and 3.7 for section specific... -
Page 9: Sensors
Reader is presented here: In the first page of asset details, the interface shows the list of all devices from which the SWICOM is collecting data. Every device is identified by a name and a coloured bar reporting the sensor status. -
Page 10: Key Performance Indicators
3.6. Key Performance Indicators The second page of asset details section shows the Key Performance Indicators (KPIs) related to each phenomenon SWICOM is monitoring. KPIs are grouped by monitoring areas and for every group an overall status is displayed with a coloured bar. -
Page 11: Measurements
Every measurements group can be expanded to see the real time values as shown in Figure 27. The third section shows the measurements collected by sensors and devices which the SWICOM is connected to. Measurements are grouped by monitoring area as described for KPIs [see 3.6]. -
Page 12: Files
The fourth section gives access to PRPD historical offline. Pressing the Export button, a configurable data saved into SWICOM internal storage. filter is provided to easily select the desired files. The filter is accessible from the Files pages or from the Home page. -
Page 13: Wi-Fi Enabling
Every device with SWICOM Local Mobile Application can now have access to SWICOM device information. From SWICOM home page it is possible to access to Note: Just one Mobile phone or tablet per time can the Wi-fi section by clicking on the Wi-fi icon be connected to SWICOM. -
Page 14: Menu
In ”View” tab it is possible to check the asset list The menu icon on the left side upper corner of with the overall communication status as shown in SWICOM home page allows to access a figure 22: configuration area as shown in figure 20:... - Page 15 Both “Ok” and “Cancel” buttons bring the user to the “Clock” tab level. Whenever a new time is set SWICOM does a check on Figure 45: identification menu the entered data, if there are errors in the format a warning message is shown as in figure 41: 3.10.2.
- Page 16 3. Local Human Machine Interface 3.10.3. Files After filter parameters configuration completed, a SWICOM can save collected PRPD files on a SD card, user can press the Export button in the right upper the HMI files filter section allows to select the files corner to start the copy.
- Page 17 D I S T R I B U T I O N S O L U T I O N S • A SWICOM root directory is created if not already 3.10.4. Parameters present. By clicking on each tab the user can access the - An EXPORT.XXX directory with an increasing num-...
- Page 18 S W I C O M – O P E R AT I O N A L M A N U A L — 3. Local Human Machine Interface 3.10.4.1 Editing functionality By selecting one of the parameter the customer can By clicking ”EDIT”...
- Page 19 By clicking on the “Language” tab the user can existing parameter configuration select the language. Once the language is defined The following message is displayed to confirm the SWICOM menu automatically returns to the home discard: page. All the tabs are shown in the new selected language.
-
Page 20: Rxplore
RXplore. The user can navigate to the Ethernet configuration data Introduction on the SWICOM to find the IP address of the device. RXplore is compatible for both Android and IOS The user can create a Site in the “Sites” tab in platforms. - Page 21 D I S T R I B U T I O N S O L U T I O N S Figure 69: relay discovered Figure 70. SWICOM discovered Figure 71. Connect via QR code scanner...
-
Page 22: Overview
SWICOM is not communicating. • All the other colours (green, yellow, red and black) are used in case the device connected to SWICOM is properly communicating: • Green: the monitored asset is in normal operating condition • Yellow: the monitored asset is in warning... -
Page 23: Key Performance Indicators
By tapping the list items the user can access deeper 4.3.1. Key Performance Indicators into the sublevels. In SWICOM 1.x there is only 1 The KPIs page displays the estimated health of sublevel which displays the selected items (e.g. different analytics monitored in the Bay. Each Parameters). -
Page 24: Measurements
SWICOM, and a numeric value from 0 to 100 representing the signal quality in percentage. Figure 76. parameters page Figure 75. measurements page... -
Page 25: Sensors
D I S T R I B U T I O N S O L U T I O N S 4.3.4. Sensors The Sensors page displays the sensors available in the selected bay/environment, together with the health status of each of them, and allows the user to select a sensor to see its nameplate information. -
Page 26: Identification
S W I C O M – O P E R AT I O N A L M A N U A L — 4. RXplore 4.3.5. Identification By clicking in the “Identification” hyperlink text on the SWICOM overview page the user can access to the nameplate information about the SWICOM device. Figure 79: SWICOM identification page... -
Page 27: Glossary
D I S T R I B U T I O N S O L U T I O N S — 5. Glossary Throughout the document, “panel” and “bay” are synonyms. Term Description Circuit Breaker Configuration Tool - for SWICOM devices- LHMI Local Human Machine Interface Human Machine Interface Intelligent Electronic Device Key Performance Indicator M&D Monitoring and Diagnostic... - Page 28 Your contact center: www.abb.com/contactcenters More service information: www.abb.com/service The data and illustrations are not binding. We reserve the right to modify the contents of this document without prior notice following technical and product developments. © Copyright 2021 ABB. All rights reserved.
