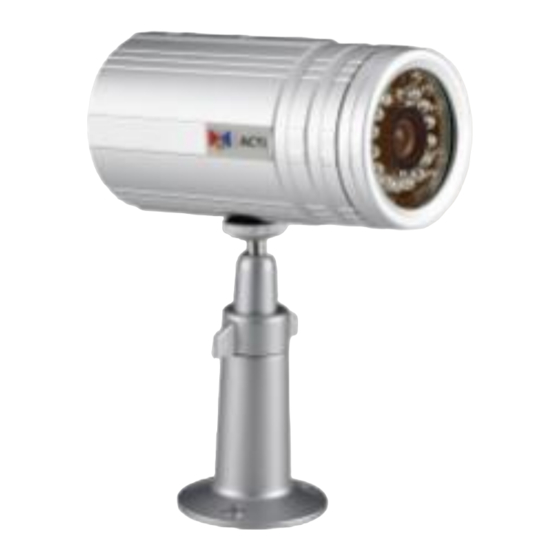

- Page 1 IP Indoor CMOS Bullet Camera ACM-1100 series Ver. 081208 Quick Installation Guide...
-
Page 3: Getting Started
Getting Started PACKAGE CONTENTS ACM-1100 series Power Adaptor (Option) (DC12V / PoE) The bracket is not included Product CD Terminal Block for Power Warranty Card... -
Page 4: Physical Description
PHYSICAL DESCRIPTION Audio Input / Output The IP Indoor CMOS Bullet Camera supports audio input and output with earphone jack Power Input If your power input is DC12V. Please follow the description on the connector to connect to power. NAME DESCRIPTION DC Power Input Ground Pin... - Page 5 Step 1: Switch off IP Indoor CMOS Bullet Camera by disconnecting the power cable Step 2: Press and continue to hold the Reset Button. Reconnect the power cable while continuing to hold the reset button. Step 3: Keep holding the reset button depressed around 6 seconds, release the reset button.
-
Page 6: Basic Connections
BASIC CONNECTIONS Follow the procedures below to connect the IP Indoor CMOS Bullet Camera to the respective apparatuses. 1. Connect an analog monitor to IP Indoor CMOS Bullet Camera video out (BNC connector). 2. Connect the power adaptor to IP Indoor CMOS Bullet Camera 3. -
Page 7: Quick Tour
Quick Tour This section guides you with a quick tour on this IP Indoor CMOS Bullet Camera. 2.1 Configure this IP Indoor CMOS Bullet Camera 2.1.1 Make sure network environment Default IP of this IP Indoor CMOS Bullet Camera is 192.168.0.100. Please make sure this IP Indoor CMOS Bullet Camera and your PC are on the same network segment before running the installation. - Page 8 2.1.2 Open Internal Explorer with IP address NOTE: If your web browser is earlier than IE6, then download IE6 is recommended. NOTE: This IP Indoor CMOS Bullet Camera default IP address is set to 192.168.0.100 2.1.3 Login with default administrator’s account & password NOTE: Default administrator account is set to Admin, password is set to 123456, and click...
- Page 9 2.1.4 Preview the video 2.1.5 Set the new IP address...
- Page 10 *IP Address : The default IP address is 192.168.0.100. *Subnet Mask : The default subnet mask is 255.255.255.0 *Click button NOTE: In your Client PC, please make sure the setting of Network Connections Type is set to Auto Negotation, since this IP Indoor CMOS Bullet Camera follows MII standard.
