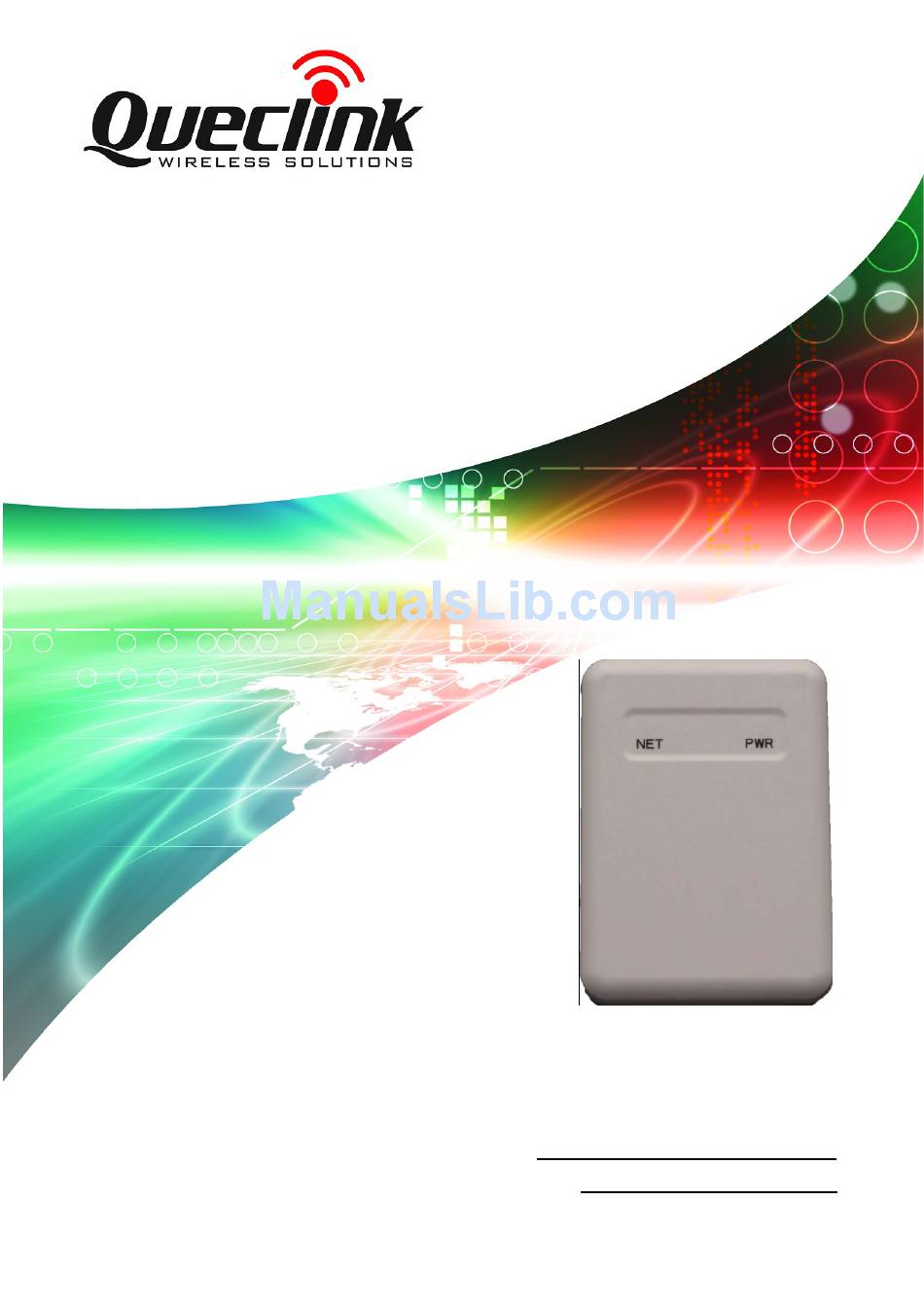

Page 1: User Manual
GL100S GSM/GPRS/GPS Tracker User Manual TRACGL100SUM001 Revision: 1.01 http://www.queclink.com sales@queclink.com... - Page 2 TRACGL100SUM001 General Notes Queclink offers this information as a service to its customers, to support application and engineering efforts that use the products designed by Queclink. The information provided is based upon requirements specifically provided to Queclink by the customers. Queclink has not undertaken any independent search for additional relevant information, including any information that may be in the customer’s possession.
-
Page 3: Table Of Contents
GL100S User Manual Contents Contents............................. 2 0. Revision history..........................2 1. Introduction........................... 2 2. Product Overview.......................... 2 2.1. Appearance.......................... 2 2.2. Buttons/Mini USB Interface Description................6 2.3. LEDs Description........................ 6 3. Getting Started..........................2 3.1. Parts List..........................2 3.2. Battery Charging........................2 3.3. -
Page 4: Revision History
GL100S User Manual 0. Revision history Revision Date Author Description of change 1.01 2011-7-8 Johnson Jiang Initial TRACGL100SUM001 - 3 -... -
Page 5: Introduction
GL100S User Manual 1. Introduction GL100S is a powerful GPS locator which is designed for shoes and assets tracking. With superior receiving sensitivity, fast TTFF frequencies 850/900/1800/1900MHz. Its location can be real time or schedule tracked by backend server or specified terminals. Based on the embedded @Track protocol, GL100S can communicate with the backend server through GPRS/GSM network, and transfer reports of emergency, Geo-fencing, device status and scheduled GPS position etc…... -
Page 6: Product Overview
GL100S User Manual 2. Product Overview 2.1. Appearance GL100S device: GL100S in shoes: (This product insert in bottom of shoes) TRACGL100SUM001 - 5 -... -
Page 7: Buttons/Mini Usb Interface Description
Connect a 3.7V Li-ion or Li-Polymer battery can power GL100S Backend server developer or administrator can use the Data_Cable to configure GL100S 2.3. LEDs Description There are three LED in GL100S, the description as following. Light Event State NET light Fast flash... -
Page 8: Battery Charging
PWR LED will be Ever-light. Charging time is about 5 hours. Note: Before the first time using GL100S, please full charge the battery. 3.3. Install SIM Card First, open the cover of SIM card.. Then insert the SIM card into the slot of SIM card according to the direction shown. - Page 9 GL100S User Manual Method 1: Press the Power key at least 3 seconds and release it to turn on GL100S. At the same time, will light on. PWR LED Turn off: Method 1: Press the power key about 2 seconds; PWR LED will fast flash and then turn off, it indicates that GL100S is turned off.
-
Page 10: Troubleshooting And Safety Info
GL100S User Manual 4. Troubleshooting and Safety info 4.1. Troubleshooting Trouble Possible Reason Solution After GL100S is turned on, the The SIM card is not inserted. Please insert the SIM card into Net LED flashes quickly GL100S. always. The signal is too weak;... -
Page 11: Safety Info
Please do not put the device on the overheating or too humid place, avoid exposure to direct sunlight. Too high temperature will damage the device or even cause the battery explosion. Please do not use GL100S on the airplane or near medical equipment. TRACGL100SUM001...
