Queclink GL300 User Manual

Queclink GL300 User Manual

Gsm/gprs/gnss tracker, manage tool user guide
Hide thumbs Also See for GL300:
Table of Contents

Advertisement

Quick Links

GL300A Manage Tool User Guide
GSM/GPRS/GNSS Tracker
TRACGL300AMT001
Revision: R1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GL300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Queclink GL300

Summary of Contents for Queclink GL300

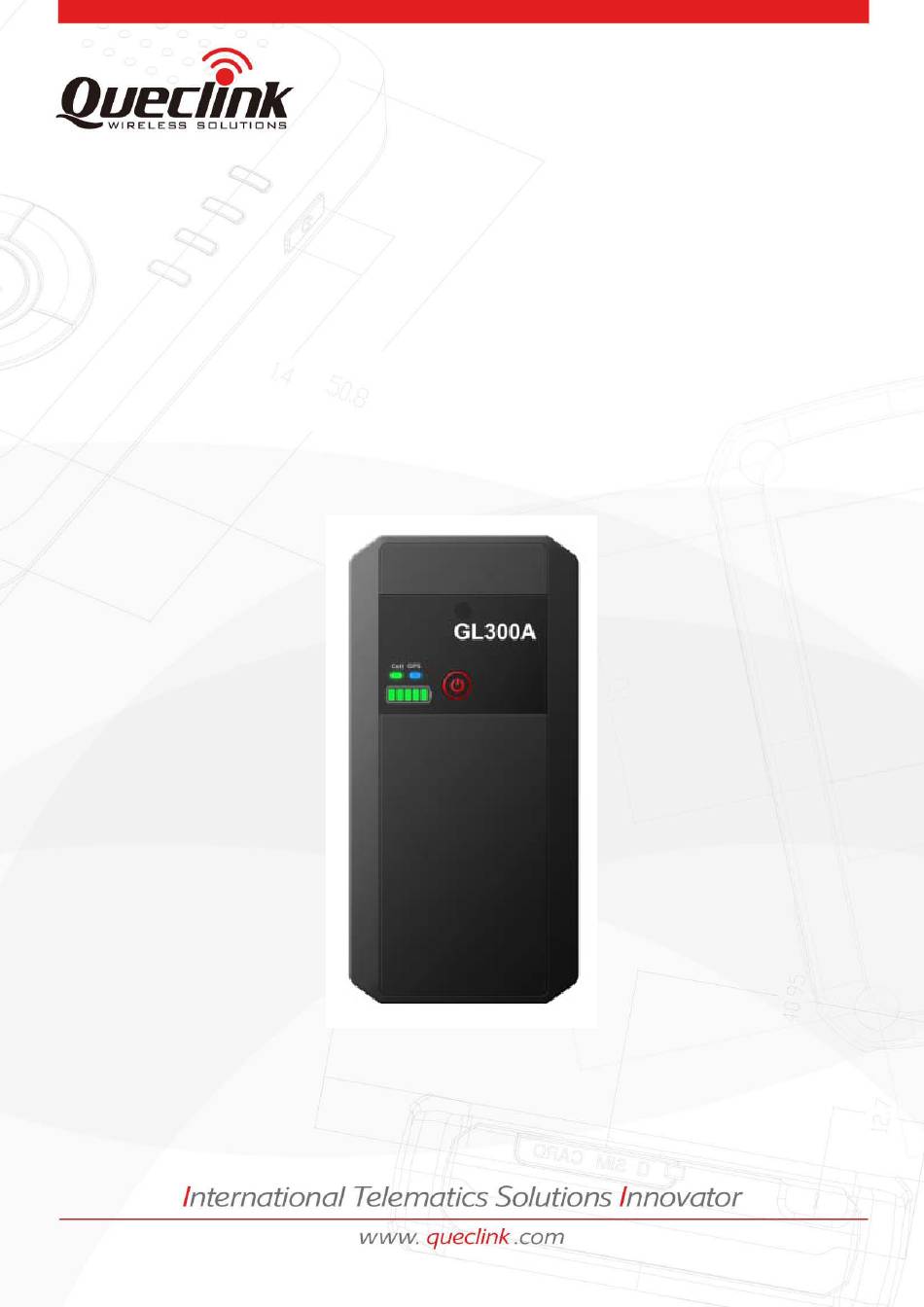

  • Page 1 GL300A Manage Tool User Guide GSM/GPRS/GNSS Tracker TRACGL300AMT001 Revision: R1.00...
  • Page 2 TRACGL300AMT001 General Notes Queclink offers this information as a service to its customers, to support application and engineering efforts that use the products designed by Queclink. The information provided is based upon requirements specifically provided to Queclink by the customers. Queclink has not undertaken any independent search for additional relevant information, including any information that may be in the customer’s possession.

  • Page 3: Table Of Contents

    GL300A Manage Tool User Guide Contents Contents ........................... 2 0. Revision History ......................3 1. GL300A Manage Tool Interface..................4 1.1. System Requirements ..................... 4 1.2. COM Setting......................5 1.3. Quick Setting Wizard ....................5 1.4. Professional Setting Windows ................. 6 1.4.1.

  • Page 4: Revision History

    GL300A Manage Tool User Guide 0.Revision History Revision Date Author Description of Change 1.00 2017-11-01 Willie Liu Initial TRACGL300AMT001 - 3 -...

  • Page 5: Gl300A Manage Tool Interface

    GL300A Manage Tool User Guide 1.GL300A Manage Tool Interface GL300A Manage Tool is PC software which can be used to configure GL300A through UART. It is easy for the backend server developers to configure GL300A with Manage Tool which has friendly user interface.

  • Page 6: Com Setting

    GL300A Manage Tool User Guide 1.2.COM Setting Select the COM port and baud rate (115200bps by default), input the password (“GL300A” by default), and click “OK” button, then setting window will be displayed. It is strongly recommended to disconnect COM port before removing the device. 1.3.Quick Setting Wizard The Quick Setting Wizard provides basic settings for the device.

  • Page 7: Professional Setting Windows

    GL300A Manage Tool User Guide 1.4.Professional Setting Windows Menus Toolbar Command Browser Command Operation Space Title Bar Status Bar 1.4.1.Title Bar Title Bar indicates current command title and the name of the Manage Tool. 1.4.2.Menus There are “Start”, “Tool”, and “Help” in menus. 1.4.2.1 Start Menu Start menu includes “COM Settings”.
  • Page 8 GL300A Manage Tool User Guide [Operation Log]: It is used to display/hide the operation log. Operation [Options]: It is used to set the basic settings of the Manage Tool. “Basic Options” includes startup setting options and log save option. “Advanced Options” includes COM settings and other settings. COM Settings is used to set COM setting.
  • Page 9 GL300A Manage Tool User Guide 1.4.2.3 Help Menu [About]: Select “About”. Then the following pop up window will be displayed. “Manage Tool Version” indicates the version of this Manage Tool. “Support Version” indicates the firmware which this Manage Tool is used for. “Device Version”...

  • Page 10: Toolbar

    GL300A Manage Tool User Guide 1.4.3.Toolbar It includes “COM Setting”, “Operation Log”, “Quick Setting Wizard”, “Real All Configuration”, “Send All Configuration” , “Save All Configuration”, and “Connect/Disconnect to COM”. [COM Setting]: It is used to set the COM information and password. For Setting details, please refer to Chapter 1.2.
  • Page 11 GL300A Manage Tool User Guide 1.4.5.1 Command Brower Command Brower divides all @track protocol commands into several parts. Click Function in command Brower, parameters of this command will be shown in Command Operation Space. Command Brower Function Description Related Command Bearer Setting Information GTBSI Server Connection...

  • Page 12: Operation Result Interface

    GL300A Manage Tool User Guide 1.4.5.2 Command Operation Space Command Description Parameters Area Command Display [Command Description]: There is a short description for the command. [Parameters Area]: Set/Read parameters of this command in this area. [Command Display]: Command with parameters in parameters area is displayed in this area. [Read]: Click this button to read this command from the device.

  • Page 13: Operation Failed Interface

    GL300A Manage Tool User Guide 1.5.2.Operation Failed Interface There should be something wrong with COM port connection if the failure reason is timeout. There should be COM port that is occupied. Please close all other COM-related applications. Please change to correct device password if Password Error occurs. There are some issues with this COM.

  • Page 14: Operation Instruction

    GL300A Manage Tool User Guide 2.Operation Instruction 2.1.Device Configuration with Quick Setting Wizard The Manage Tool is developed based on the @Track Air Interface Protocol. Please refer to “GL300A @Track Air Interface Protocol” for details. The Quick Setting Wizard provides basic settings for the device. If you want to use more functions of GL300A, please change to professional setting mode.

  • Page 15: Main Server Setting

    GL300A Manage Tool User Guide Step_1 Step_2 2.1.3.Main Server Setting Step_1: Set report mode, main server, main server port, and SMS gateway in this window. For the meanings of these parameters, please refer to the “GL300A @Track Air Interface Protocol”. Step_2: Click “Check if main backend server is available”...

  • Page 16: Fixed Time Report Setting

    GL300A Manage Tool User Guide Step_1 Step_2 Step_3 2.1.4.Fixed Time Report Setting Step_1: Set check interval, send interval, and discard no fix in this window. For the meanings of these parameters, please refer to the “GL300A @Track Air Interface Protocol”. Step_2: Click “Next”.

  • Page 17: Send Command To Device

    GL300A Manage Tool User Guide Step_1 Step_2 2.1.5.Send Command to Device Step_1: Click “Send Command”. The commands GTBSI, GTSRI, and GTFRI will be sent to the device. Step_2: If the settings are downloaded successfully, the result returns OK. Click “OK”, the result window is closed.
  • Page 18 GL300A Manage Tool User Guide Step_1 Step_2 TRACGL300AMT001 - 17 -...

  • Page 19: Device Configuration In Professional Setting Mode

    GL300A Manage Tool User Guide 2.2.Device Configuration in Professional Setting Mode The Manage Tool is developed based on the @Track Air Interface Protocol. Please refer to the “GL300A @Track Air Interface Protocol” for details. The following shows a general procedure to configure GL300A with the Manage Tool. Step_4 Step_1 Step_2...
  • Page 20 GL300A Manage Tool User Guide configuration. Select “Read All Configuration”“Read From Device”. NOTE：Command GTRTO will not be read when clicking “Read From Device”. Step_2: After reading successfully, click “Save All Configuration” in toolbar. Step_3: Select a folder, type in the name of configuration file, and then click “Save” button. Step_4: Saved successfully.

  • Page 21: Load/Send All Configurations

    Step_2: You can set the parameters in commands based on the configuration file, and then click “Send All Configuration” in toolbar. Note: The command GTRTO will not be sent when clicking “Send All Configuration”. Step_3: Manage Tool will send all commands to the device. Queclink Grace Wang Checked 2019.01.11 TRACGL300AMT001...
