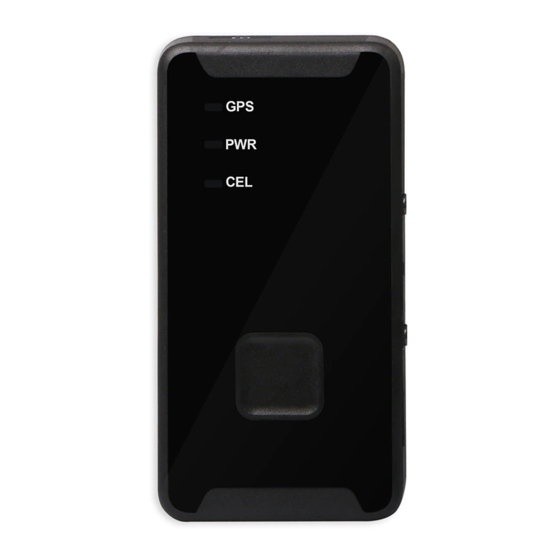

Queclink GL300W User Manual

Gsm/gprs/wcdma/gnss tracker
Hide thumbs Also See for GL300W:
Table of Contents

Advertisement

Quick Links

GL300W Manage Tool User Guide
GSM/GPRS/WCDMA/GNSS Tracker
TRACGL300W_MT001
Version:1.01
GL300W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GL300W and is the answer not in the manual?

Questions and answers

Related Manuals for Queclink GL300W

Summary of Contents for Queclink GL300W

  • Page 1 GL300W Manage Tool User Guide GSM/GPRS/WCDMA/GNSS Tracker TRACGL300W_MT001 Version:1.01 GL300W...
  • Page 2 TRACGL300WMT001 General Notes Queclink offers this information as a service to its customers, to support application and engineering efforts that use the products designed by Queclink. The information provided is based upon requirements specifically provided to Queclink by the customers. Queclink has not undertaken any independent search for additional relevant information, including any information that may be in the customer’s possession.

  • Page 3: Table Of Contents

    GL300W Manage Tool User Guide Contents Contents ............................2 1. Revision history ..........................3 2. GL300W Manage Tool Interface ....................4 2.1. System Requirements ......................4 2.2. COM Setting ........................5 2.3. Quick Setting Wizard ......................5 2.4. Professional Setting Windows ..................... 6 2.4.1.

  • Page 4: Revision History

    GL300W Manage Tool User Guide 1. Revision history Revision Date Author Description of change V1.00 2015-10-17 Sivan Initial V1.01 2015-12-23 Sivan Add UPC/PDS/CMD/UDF/WLT TRACGL300WMT001 - 3 -...

  • Page 5: Gl300W Manage Tool Interface

    Data_Cable_M or USB Cable. It is easy for the backend server developers to configure GL300W with manage tool, which has friendly user interface. The correct command messages sent to GL300W will be displayed on the manage tool. (These messages can also be sent by SMS or UMTS ).

  • Page 6: Com Setting

    GL300W Manage Tool User Guide 2.2. COM Setting Select the COM port, input the password “gl300w”, and the main window will display. 2.3. Quick Setting Wizard The quick setting wizard gives a basic setting for device. If you want use more functions of GL300W, please change to enter professional setting mode.

  • Page 7: Professional Setting Windows

    GL300W Manage Tool User Guide 2.4. Professional Setting Windows Menus Toolbar Command Browser Command Operation Space Title Bar Statu 2.4.1. Title Bar Title Bar indicates current operational command title. 2.4.2. Menus It include “Start”, “Tool”, “Help” menu in menus. 2.4.2.1. Start Menu Start menu include “COM Settings”.
  • Page 8 GL300W Manage Tool User Guide Operation [Options]: It is used to set the basic setting of manage tool. “Basic Options” include startup setting options and log save option. “Advanced Options” include COM settings and other settings. COM Settings is used to set enable/disable slowclock control. It is recommended using default setting for these settings.

  • Page 9: Help Menu

    GL300W Manage Tool User Guide 2.4.2.3. Help Menu Help menu include “About” and “Diagnosis”. [About]: Select “About”. Then the following pop up window will display. “Tool Version” indicates the version of this manage tool. “Support Version” indicates the firmware which this manage tool used for.

  • Page 10: Toolbar

    GL300W Manage Tool User Guide This function is only for technology diagnosis when the device report data abnormally, please ignore it when it works normally. 2.4.3. Toolbar It include “COM Setting”, “Operation Log”, “Quick Setting Wizard”, “Real All Configuration”, “Execute All Configuration” , “Save All Configuration”, “Connect/Disconnect to COM”.

  • Page 11: Status Bar

    GL300W Manage Tool User Guide [Save All Configuration]: It is used to save all configurations in Command Operation Space to file. [Connect/Disconnect to COM]: It is used to Connect/Disconnect to COM manually. 2.4.4. Status Bar There is system status and current status in status bar.

  • Page 12: Command Operation Space

    GL300W Manage Tool User Guide backend server Google Link SMS Configuration GTGLM Update configuration over the air GTUPC Preserve special device logical state GTPDS Store Command String GTCMD ser Defined Function GTUDF White Number List Configuration GTWLT 2.4.5.2. Command Operation Space...

  • Page 13: Operation Result Interface

    GL300W Manage Tool User Guide 2.5. Operation Result Interface 2.5.1. Operation Successfully Interface 2.5.1.1. Command read OK. Command send OK. 2.5.2. Operation Failed Interface There should be COM port connection problem if the fail reason is timeout. TRACGL300WMT001 - 12 -...
  • Page 14 GL300W Manage Tool User Guide There should be COM port is occupied. Please close all other COM-related applications. Please change to correct device password if Password Error. There are some issues with this com, please check your com wire or port.

  • Page 15: Operation Instruction

    3.1. Device Configuration with Quick Setting Wizard The manage tool is developed based on the @Track Air Interface Protocol. Please refer to “GL300W @Track Air Interface Protocol” for detail. The quick setting wizard gives a basic setting for device. If you want use more functions of GL300W, please change to professional setting mode.

  • Page 16: Main Server Setting

    3.1.3. Main Server Setting Step_1: Set report mode, main server, main server port, and SMS gateway in this window. The meaning of these parameters, please refer to the “GL300W @Track Air Interface Protocol” for detail. Step_2: Click “Check if main backend server is available” to check if main server IP and port is valid in network.

  • Page 17: Fixed Time Report Setting

    Step_3 3.1.4. Fixed Time Report Setting Step_1: Set check interval, send interval, discard no fix in this window. The meaning of these parameters, please refer to the “GL300W @Trak Air Interface Protocol” for detail. Step_2: Click “Next”. TRACGL300WMT001 - 16 -...

  • Page 18: Send Command To Device

    GL300W Manage Tool User Guide Step_1 Step_2 3.1.5. Send Command to Device Step_1: Click “Send Command”. Command GTBSI, GTSRI, and GTFRI will send to device. Step_2: If the settings download successfully, the result return OK. Click “OK” . Step_3: Exit the quick setting wizard.

  • Page 19: Device Configuration In Professional Setting Mode

    3.2. Device Configuration in Professional Setting Mode The manage tool is developed based on the @Track Air Interface Protocol. Please refer to “GL300W @Track Air Interface Protocol” for detail. Following is a general procedure to configure GL300W with manage tool. Step_4 Step_1...

  • Page 20: Read/Save All Configuration

    Command Operation Space. Step_2: Command Create Automatically The command message which shall be sent to GL300W will be generated based on input and displayed here. Please note this command message can also be sent to GL300W through SMS or UMTS.

  • Page 21: Load/Send All Configuration

    GL300W Manage Tool User Guide Step_4: Save successfully. 3.4. Load/Send All Configuration Step_1: Before execute all configurations, please load the configuration file or set all parameters in commands. To load configuration file, please select “Read All Configuration” ” Load Configurations From File”. And then select the configuration file you needed.
  • Page 22 GL300W Manage Tool User Guide Step_2: You can set the parameters in commands base on the configuration file, and then click “Send All Configuration” in toolbar. Step_3: Manage Tool will write all commands to device. TRACGL300WMT001 - 21 -...
