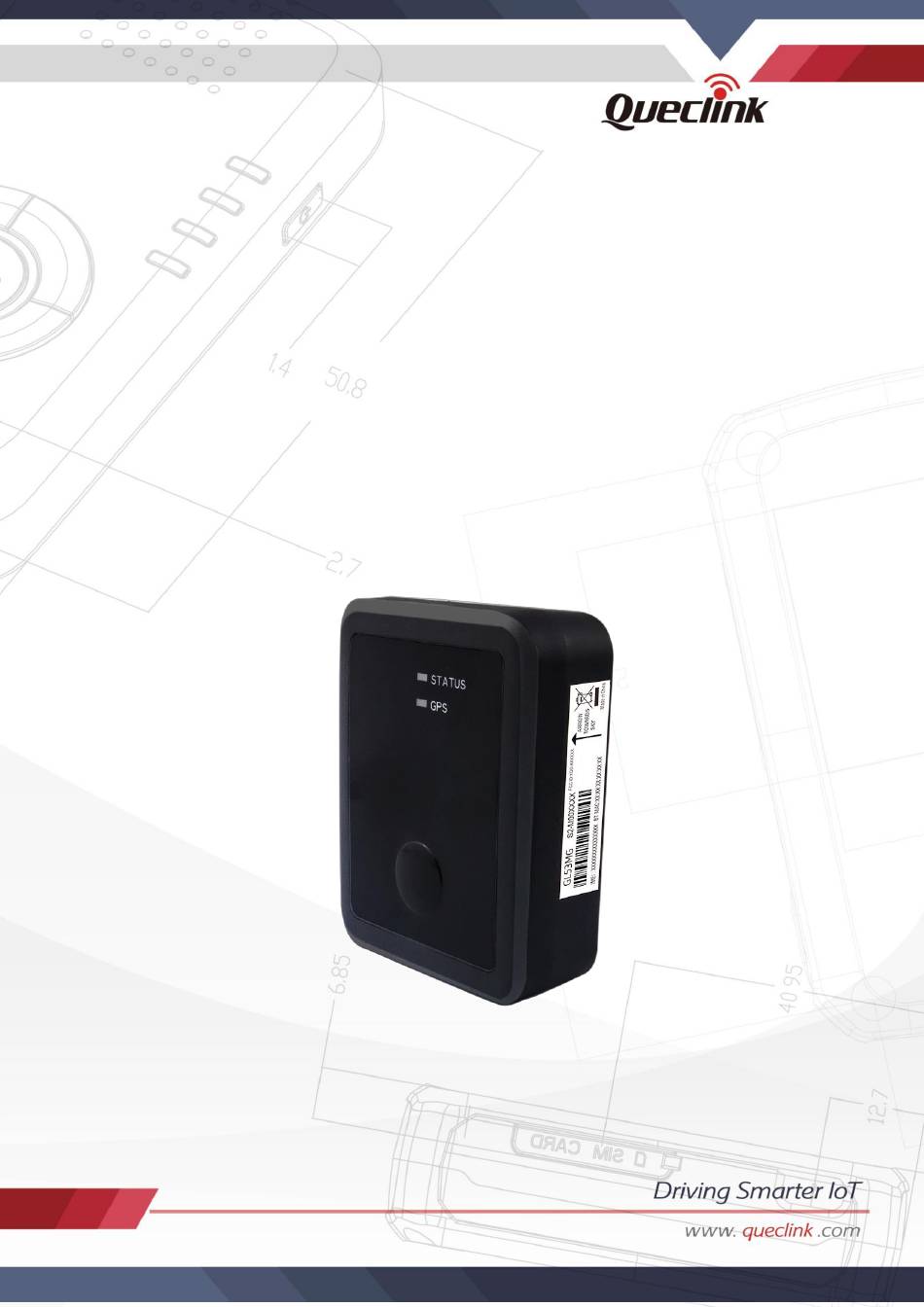

- Page 1 GL53MG(Plus) User Manual GL53MG(Plus) User Manual EGPRS/LTE Cat-M1/LTE Cat-NB2/GNSS Tracker TRACGL53MGUM001 V1.04 TRACGL53MGUM001...
- Page 2 TRACGL53MGUM001 General Notes Queclink offers this information as a service to its customers, to support application and engineering efforts that use the products designed by Queclink. The information provided is based upon requirements specifically provided to Queclink by the customers. Queclink has not undertaken any independent search for additional relevant information, including any information that may be in the customer’s possession.
-
Page 3: Table Of Contents
GL53MG(Plus) User Manual Contents Contents............................... 2 History ..............................3 1. Introduction ............................. 4 1.1. Reference ..........................4 2. Product Overview ........................... 5 2.1. Appearance ......................... 5 2.2. Parts List ..........................6 2.3. Battery Specifications ......................7 3. Getting Started ..........................8 3.1. -
Page 4: History
GL53MG(Plus) User Manual History Version Date Author Description of Change 1.00 June 30, 2021 Wokky Lin Initial. 1.01 April 22, 2022 Eden Zhang Added the description of LED (work in combination). 1.02 April 29, 2022 Eden Zhang Added the description of LED (function key). -
Page 5: Introduction
GL53MG(Plus) User Manual 1. Introduction The GL53MG(Plus) is a micro waterproof GNSS tracker that supports LTE Cat M1/NB2. The device integrates the latest low-power wide area network standards and covers a broader area, making it more flexible to deploy. Adding a programmable button makes it ideal for applications requiring rapid emergency alert or checking status of the device, such as auto financing, asset monitoring, and car rental and leasing. -
Page 6: Product Overview
GL53MG(Plus) User Manual 2. Product Overview 2.1. Appearance Status LED GPS LED TRACGL53MGUM001... -
Page 7: Parts List
GL53MG(Plus) User Manual 2.2. Parts List Name Picture GL53MG(Plus) Tracker Double-sided Adhesive Sheet (for mounting the device) GL53MG(Plus) UART Cable 0.5M (Optional) TRACGL53MGUM001... -
Page 8: Battery Specifications
GL53MG(Plus) User Manual GL53MG(Plus) USB Cable 0.5M (Optional) 2.3. Battery Specifications 2400mAh Capacity Type Lithium manganese dioxide battery Standby Time BLE Off, G-Sensor Off Standby current: 5μA 1 report per day: Up to 3 years 4 reports per day: Up to 300 days 5 minutes’... -
Page 9: Getting Started
GL53MG(Plus) User Manual 3. Getting Started 3.1. Install a SIM Card Step 1: Loosen the 4 screws on the back to open the top cover. Step 2: Install the SIM card on the flip SIM card holder with the words or logo facing up. Then close the flip SIM card holder. -
Page 10: Turn On/ Off The Device
GL53MG(Plus) User Manual Step 4: Tighten the screws. 3.2. Turn on/ off the Device There are two methods to turn on the device: Method One: Turn on the battery switch. Battery switch in the ON position Method Two: The battery switch on the PCB must be in the ON position first and then long press the key button for more than 3 seconds. -
Page 11: Wake Up The Device
GL53MG(Plus) User Manual To turn off the device (<Function Key Mode> in the AT+GTCFG command is required to be set to 1), long press the key button for more than 3 seconds. Note: Press button down for 3 to 20 seconds as a valid operation. 3.3. -
Page 12: Usb Interface
GL53MG(Plus) User Manual 3.5. USB Interface The device has a USB interface that is used for firmware download and MCU firmware download. The physical interface used by it is the same as that used by as the UART interface. TRACGL53MGUM001... - Page 13 GL53MG(Plus) User Manual TRACGL53MGUM001...
-
Page 14: Led Description
GL53MG(Plus) User Manual 3.6. LED Description Status LED Definition of Device Status and LED Status Device Status LED Status The device is searching for network. Fast flashing The device has been registered on the Slow flashing network. SIM is locked by PIN. Solid green The device isn’t registered on the network. -
Page 15: Installation Recommendation
GL53MG(Plus) User Manual When the AT+GTSVR function works, the LED indicates Bluetooth pairing status instead of network status. This time, fast flashing is about 100ms when the LED indicator is on and 100ms when it is off; slow flashing is about 2s when the LED indicator is on and 2s when it is off. -
Page 16: Troubleshooting And Safety Information
GL53MG(Plus) User Manual 4. Troubleshooting and Safety Information 4.1. Troubleshooting Trouble Possible Reason Solution 1. The cellular signal The Status LED flashes Please place the device in strength is weak; fast when the device is an area with good network 2.
