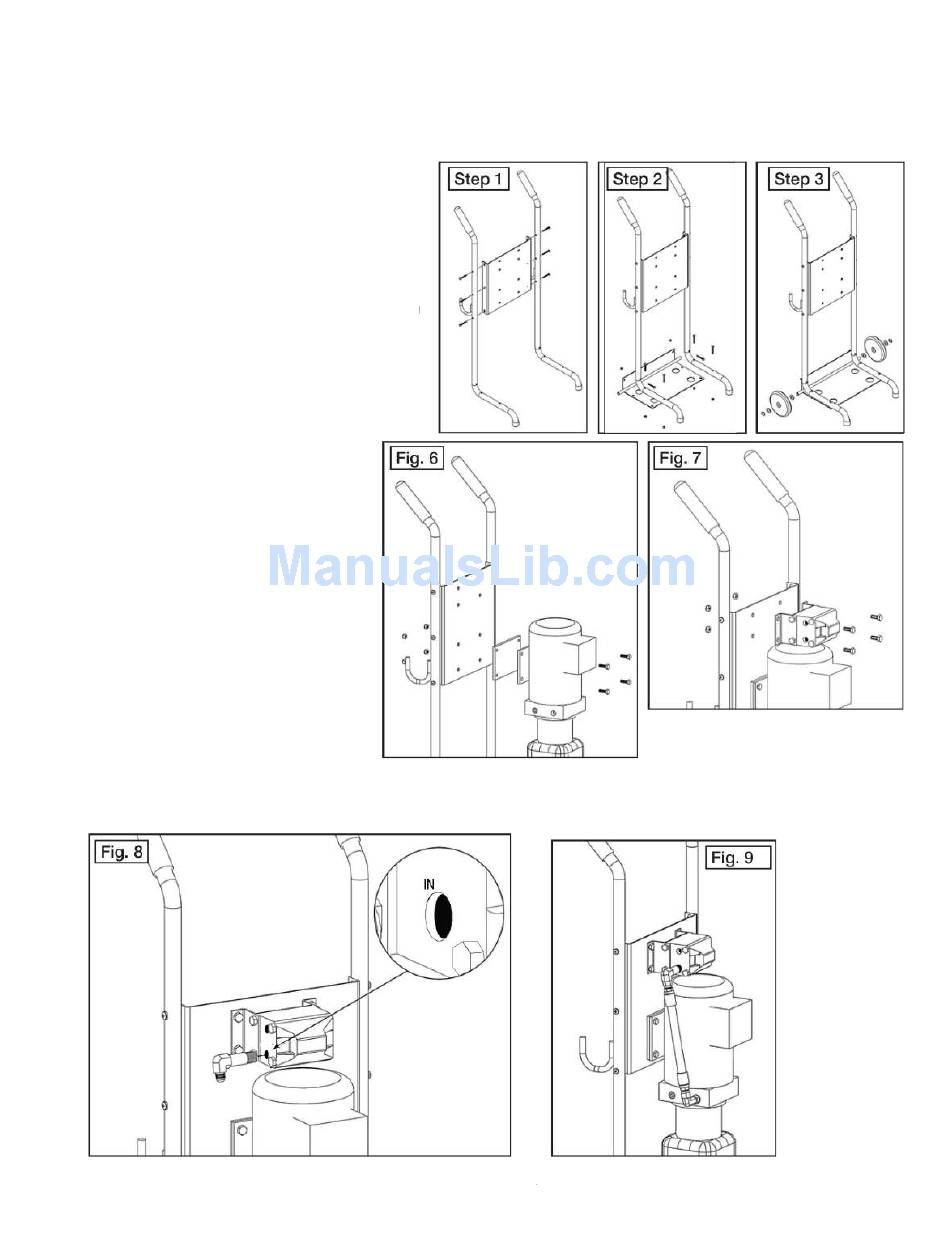

Assemble cart as shown in the figured below:
1. After installing the cart wheels, attach the
power unit and rubber power unit damp-
ener pad to the power unit cart using the
(4) 8x25mm hex bolts and nylon lock nuts.
(See figure 6)
2. Attach the hydraulic flow divider to the
power unit cart using the (4) 8x20mm hex
bolts and nylon lock nuts supplied.
(See figure 7)
NOTE: Install flow divider so that when
facing it from the front the (2) plastic plugs
are on the left and (1) plug on the right.
3. Remove the plastic plug from the
lower left port labled "IN" on the
flow divider. Install the long 90-
degree NPT fitting to 9/16 JIC. Use
teflon tape on pipe thread side
only. When tighting the fitting,
tighten by hand first and then using
a wrench turn 2-3 full turns past
hand tight. (See figure 8)
6. Remove the plastic plug from the
power unit. Install the long 90-de-
gree 9/16 NPT with o-ring to 9/16
JIC fitting.
7. Attach the short power unit hose
as shown. Do not use teflon tape
on the JIC fittings. (See figure 9)

( MOUNTING THE HYDRAULIC POWER UNIT )

FOR TECHNICAL QUESTIONS, CALL (877)432-6627
STEP 4
