Tenda W3002R User Manual

Wireless n300 high power router
Hide thumbs
Table of Contents

Advertisement

Quick Links

W3002R Wireless N300 High Power Router

Advertisement

Table of Contents
loading

Related Manuals for Tenda W3002R

Summary of Contents for Tenda W3002R

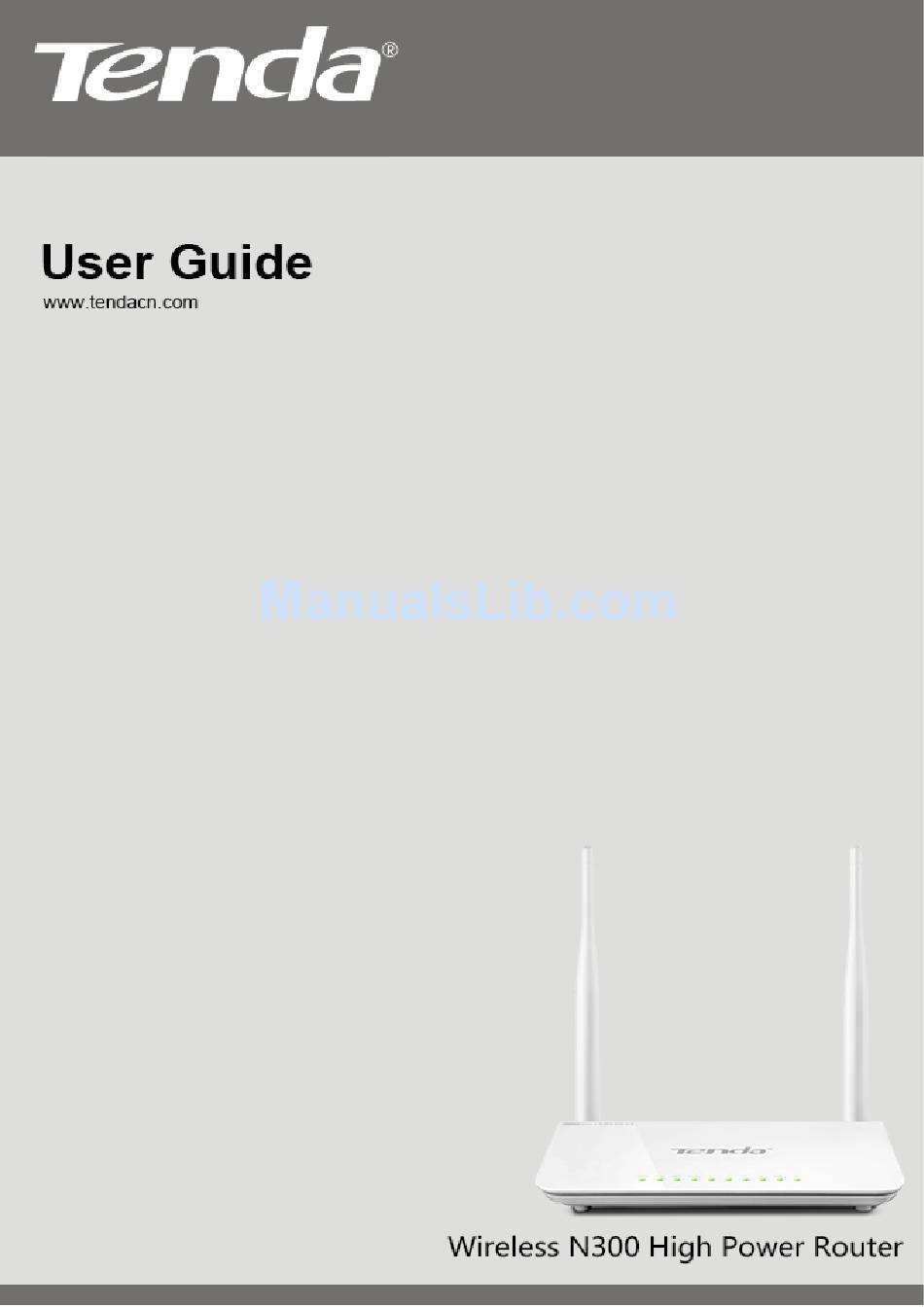

  • Page 1 W3002R Wireless N300 High Power Router...

  • Page 2: Copyright Statement

    All photos and product specifications mentioned in this manual are for references only. Upgrades of software and hardware may occur; Tenda reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes.

  • Page 3: Table Of Contents

    W3002R Wireless N300 High Power Router Table of Contents CHAPTER 1 PRODUCT OVERVIEW.......................... 3 1.1 P ............................... 3 ACKAGE ONTENT 1.2 P ..............................4 ANEL VERVIEW CHAPTER 2 INSTALLATION............................6 CHAPTER 3 INTERNET CONNECTION SETUP...................... 7 3.1 C TCP/IP PC ......................7...
  • Page 4 W3002R Wireless N300 High Power Router 10.4 R ....................59 ESTORE TO ACTORY EFAULT ETTINGS 10.5 F ............................60 IRMWARE PDATE 10.6 R ................................60 EBOOT 10.7 C ............................61 HANGE ASSWORD 10.8 S ..............................61 YSTEM APPENDIX 1 GLOSSARY............................62 APPENDIX 2 PRODUCT FEATURES........................

  • Page 5: Chapter 1 Product Overview

    Thanks for purchasing this Tenda router . The Tenda W3002R Wireless N300 High Power Router is a 802.11n wireless router. You just need simply connect the W3002R to a cable or DSL modem and Internet access sharing will be reachable to multiple computers, game consoles, and media players over an up to 300Mbps WLAN that is secured with WPA and WPA2 encryption methods.

  • Page 6: Panel Overview

    W3002R Wireless N300 High Power Router 1.2 Panel Overview LED Overview: Status Description Indicator POWER The router is powerd on The router is performing WPS Flashing authentication with wireless client WPS is enabled Flashing The router is working properly The wireless function is enabled...
  • Page 7 W3002R Wireless N300 High Power Router Back Panel: Interface/button overview: Interface Description /Button Power receptacle. Note: Using a power supply with a POWER different voltage rating than the one included the package may damage the router. The Internet port for connection to the cable or the DSL modem or direct ISP service via an Ethernet cable.

  • Page 8: Chapter 2 Installation

    Wireless N300 High Power Router Chapter 2 Installation This manual takes the Tenda W3002R as an example to demonstrate whole installation process, which applies to other products alike. 1. Connect one end of the included power adapter to the Device and plug the other end into a wall outlet nearby.

  • Page 9: Chapter 3 Internet Connection Setup

    W3002R Wireless N300 High Power Router Chapter 3 Internet Connection Setup 3.1 Config TCP/IP settings on your PC If you are using Windows XP,do as follows: 1. From the desktop, right-click My Network Places > Properties. 2. Right-click on the Local .Area Connection and select Properties.
  • Page 10 W3002R Wireless N300 High Power Router 3. Select Internet Protocol (TCP/IP) and click Properties. 4. Select "Obtain an IP address automatically" or "Use the following IP address". a. "Obtain an IP address automatically"...
  • Page 11 W3002R Wireless N300 High Power Router b. Use the following IP address" IP address: Enter 192.168.0.xxx where xxx can be any number between 2 and 254). Subnet mask: 255.255.255.0. Default gateway: Enter 192.168.0.1. Preferred DNS server: Set Preferred (Primary) DNS the same as the LAN IP address of your Device (192.168.0.1) if you don’t know your local DNS server...
  • Page 12 W3002R Wireless N300 High Power Router 2. Click "Change adapter settings". 3. Right-click on the Local Area Connection and select Properties. 4. Select Internet Protocol Version 4 (TCP/IPv4) and click Properties or directly double-click on Internet Protocol Version 4 (TCP/IPv4).
  • Page 13 W3002R Wireless N300 High Power Router 5. Select "Obtain an IP address automatically" or "Use the following IP address". a. "Obtain an IP address automatically" b. "Use the following IP address"...

  • Page 14: Web Login

    W3002R Wireless N300 High Power Router IP address: Enter 192.168.0.xxx where xxx can be any number between 2 and 254). Subnet mask: 255.255.255.0. Default gateway: Enter 192.168.0.1. Preferred DNS server: Set Preferred (Primary) DNS the same as the LAN IP address of your Device (192.168.0.1) if you don’t know your local DNS server...

  • Page 15: Quick Internet Connection Setup

    W3002R Wireless N300 High Power Router 3.3 Quick Internet Connection Setup 2 common Internet connection types are available on the home page: PPPoE and DHCP. DHCP: Select DHCP (Dynamic IP) if you are online immediately when your computer connects to the ADSL/Cable modem directly, and then configure a security key to secure your wireless network.

  • Page 16: Quick Encryption

    W3002R Wireless N300 High Power Router DHCP is the default Internet connection type. If you need other connection types, please go to Chapter 4-> WAN settings. 3.4 Quick Encryption Secure your wireless network either by configuring a security key on the...

  • Page 17: Chapter 4 Advanced Settings

    W3002R Wireless N300 High Power Router Chapter 4 Advanced Settings 4.1 Status Here you can view WAN status and system status.
  • Page 18 W3002R Wireless N300 High Power Router Connection Status: Displays WAN connection status: Disconnected, Connecting or Connected. Disconnected: Indicates that the Ethernet cable from your ISP side is not correctly connected to device's WAN port or the router is not logically connected to your ISP.
  • Page 19 W3002R Wireless N300 High Power Router LAN MAC Address: Displays router’s MAC address of LAN interface. WAN MAC Address: Displays router’s MAC address of WAN interface. System Time: Displays router system time either customized or update with NTP server. Connected Client: Displays the number of client devices.

  • Page 20: Wan Settings

    W3002R Wireless N300 High Power Router 4.2 WAN Settings DHCP (Dynamic IP) DHCP (Dynamic IP): Select this option to let router obtain IP settings automatically from your ISP if you are online immediately when your computer connect to the ADSL/Cable modem directly.
  • Page 21 W3002R Wireless N300 High Power Router Internet connection Type: Displays the current Internet connection type. User Name: Enter the PPPoE User Name provided by your ISP. Password: Enter the PPPoE password provided by your ISP. MTU: Maximum Transmission Unit. DO NOT change it from the factory default of 1492 unless necessary.
  • Page 22 W3002R Wireless N300 High Power Router Internet connection Type: Displays the current Internet connection type. IP Address: Enter the IP address provided by your ISP. Consult your ISP if you are not clear. Subnet mask: Enter the subnet mask provided by your ISP.
  • Page 23 W3002R Wireless N300 High Power Router Address Mode: Select "Dynamic" if you don’t get any IP info from your ISP, otherwise select "Static". Consult your ISP if you are not clear. IP Address: Enter the IP address provided by your ISP. Consult your ISP if you are not clear.
  • Page 24 W3002R Wireless N300 High Power Router PPPoE Dual Access （only supported in special Areas e.g.Russia.） Internet connection Type: Displays a list of available Internet Connection types. Username: Enter the PPPOE account provided by your ISP. Password: Enter the PPPOE password provided by your ISP.

  • Page 25: Lan Settings

    W3002R Wireless N300 High Power Router 4.3 LAN Settings Click Advanced Settings-> LAN Settings to enter below screen. MAC Address: Displays MAC address of LAN interface, which is NOT changeable. IP Address: Router's LAN IP address. The default is 192.168.0.1. You can change it according to your need.

  • Page 26: Dns Settings

    W3002R Wireless N300 High Power Router 4.5 DNS Settings DNS is short for Domain Name System or Domain Name Service. Enable Manual DNS Assignment: Check to activate DNS settings. Preferred DNS Server：Enter the Preferred DNS Server address provided by your ISP.

  • Page 27: Bandwidth Control

    W3002R Wireless N300 High Power Router 4.6 Bandwidth Control To better manage bandwidth allocation and optimize network performance, use the bandwidth control feature. Enable Bandwidth Control: Check or uncheck the box to enable or disable the bandwidth control feature. This option is disabled by default.
  • Page 28 W3002R Wireless N300 High Power Router Example 1: To let the PC at the IP address of 192.168.0.100 to upload data at speeds of 10-15KByte/s and download data at speeds of 80-90KByte/s. To add an upload bandwidth control rule, do as follows: ．...
  • Page 29 W3002R Wireless N300 High Power Router And then add a download bandwidth control rule as seen below. Example 2: To let PCs within the IP address range of 192.168.0.2- 192.168.0.254 to upload data at speeds of 20-30KByte/s and download data at...

  • Page 30: Traffic Statistics

    W3002R Wireless N300 High Power Router 4.7 Traffic Statistics Traffic Statistics allows you to see at a glance how much traffic each device in your network is using. Enable Traffic Statistics: Check/uncheck the box to enable/disable the Traffic Statistics feature. To see at a glance how much traffic each device in your network is using, enable this option.

  • Page 31: Wan Speed

    W3002R Wireless N300 High Power Router 4.8 WAN Speed Here you can set the speed for WAN port. It is advisable to keep the default “Auto” setting to get the best speed. Note: Aging and the length of Ethernet cable may reduce its transmission capability.

  • Page 32: Chapter 5 Wireless Settings

    W3002R Wireless N300 High Power Router Chapter 5 Wireless Settings 5.1 Wireless Basic Settings Enable Wireless: Check/uncheck to enable/disable the 2.4GHz wireless feature. If disabled, all wireless-based features will be disabled accordingly. Network Mode: Select a right mode according to your wireless client devices.

  • Page 33: Wireless Security

    W3002R Wireless N300 High Power Router AP Isolation: Disabled by default. When enabled, wireless clients can’t share file or communicate with the wireless client connect to the same SSID. Channel: It is advisable that you select an unused channel or "Auto" to let device detect and select the best possible channel for your wireless network to operate on from the drop-down list.　...

  • Page 34: Wep

    W3002R Wireless N300 High Power Router WPS Mode: Select PBC (Push-Button Configuration) or PIN. PBC: To use the PBC option, select it and click "Save"; Then press the WPS button on router's back panel for about one second while enabling WPS >PBC on the intended wireless client simultaneously.

  • Page 35: Wpa-Psk

    W3002R Wireless N300 High Power Router 5.2.3 WPA-PSK The WPA protocol implements the majority of the IEEE 802.11i standard. It enhances data encryption through the Temporal Key Integrity Protocol (TKIP) which is a 128-bit per-packet key, meaning that it dynamically generates a new key for each packet.

  • Page 36: Wpa2-Psk

    W3002R Wireless N300 High Power Router 5.2.4 WPA2-PSK WPA2 is based on 802.11i and uses Advanced Encryption Standard (AES) instead of TKIP. It is more secured than WPA and WEP. WPA Encryption Type: Select one encryption type from AES (advanced encryption standard), TKIP (temporary key integrity protocol) or TKIP&AES.

  • Page 37: Wireless Extender

    SSID: The wireless name of the uplink wireless device. Channel: The channel used by uplink wireless device. Security Mode: The security mode and key used for connection to the uplink wireless device. Open Scan: Click to search available wireless networks. Take two W3002R as...
  • Page 38 WISP client feature. Set the uplink device as below: SSID: Tenda_W309R_1, Chanel: 9 Security Mode: WPA-PSK Security Key: 12345678 LAN IP address: 192.168.10.1. Set the Second W3002R as below: SSID: Tenda_W309R_2, Chanel: 9...
  • Page 39 W3002R Wireless N300 High Power Router Scan the first W3002R’s wireless signal (Tenda_W309R_1) on the second W3002R (WISP client device) or manually enter (Tenda_W309R_1). After finish the setting, you can check the ip address of the router’s WAN port through view system status.

  • Page 40: Wds

    W3002R Wireless N300 High Power Router 5.3.3 WDS WDS Bridge Mode: wireless distribution system (WDS) is a system enabling the wireless interconnection of access points in an IEEE 802.11 network. It allows a wireless network to be expanded using multiple access points without the traditional requirement for a wired backbone to link them.
  • Page 41 W3002R Wireless N300 High Power Router Take two W3002R as example to illustrate WDS implementation. Choose WDS Bridge on both W3002R as seen below: 1 Directly enter the MAC address and SSID of the link partner if you already know them and then configure proper security settings.

  • Page 42: Access Control

    W3002R Wireless N300 High Power Router 2) Click OK as seen below. Configure the same settings on the other W3002R the same way above. Both wireless devices involved must be entered each other’s MAC address for successful WDS connection. Note: 1.
  • Page 43 W3002R Wireless N300 High Power Router MAC Address: Enter the MAC address of a wireless client which you want to permit or forbid to connect your wireless network. Add: Click to add the MAC address. MAC Address List: Displays added MAC address entries. You can add new entries or delete existing entries according to your needs.

  • Page 44: Connection Status

    W3002R Wireless N300 High Power Router 5.5 Connection Status This section displays the info of connected wireless clients including MAC addresses and frequency width. Select SSID: Select the SSID you want to view. MAC Address: Displays MAC addresses of wireless clients connected to the router.

  • Page 45: Chapter 6 Dhcp

    W3002R Wireless N300 High Power Router Chapter 6 DHCP 6.1 DHCP Settings The Dynamic Host Configuration Protocol (DHCP) is an automatic configuration protocol used on IP networks. If you enable the built-in DHCP server on the device, it will automatically configure the TCP/IP settings for all your LAN computers (including IP address, subnet mask, gateway and DNS etc), eliminating the need of manual intervention.

  • Page 46: Dhcp Client List

    W3002R Wireless N300 High Power Router 6.2 DHCP Client List DHCP Client List displays information of devices that have obtained IP addresses from the device’s DHCP Server. If you would like some devices on your network to get the same IP addresses always, you can use this feature and manually add a static DHCP Reservation entry for each such device.

  • Page 47: Chapter 7 Virtual Server

    W3002R Wireless N300 High Power Router Chapter 7 Virtual Server 7.1 Port Range Forwarding Start/End Port: Enter the number or range of port(s) used by the server or Internet applications. Private IP: The IP address of a computer used as a server in LAN.
  • Page 48 W3002R Wireless N300 High Power Router Example: You want to share some large files with your friends who are not in your LAN; however it is not convenient to transfer such large files across network. Then, you can set up your own PC as a FTP server and use the Port Range Forwarding feature to let your friends access these files.

  • Page 49: Dmz Host

    W3002R Wireless N300 High Power Router 7.2 DMZ Host In some cases such as playing Internet games or holding video conferences, you may need to have your computer completely exposed to external networks for implementation of a bidirectional communication. To do so, set it as a DMZ host.

  • Page 50: Upnp

    W3002R Wireless N300 High Power Router 7.3 UPNP The Universal Plug and Play (UPnP) feature allows network devices, such as computers from Internet, to access resources on local host or devices as needed. UPnP-enabled devices can be discovered automatically by the UPnP service application on the LAN.

  • Page 51: Chapter 8 Parental Control

    W3002R Wireless N300 High Power Router Chapter 8 Parental Control 8.1 Client Filter To better manage PCs in LAN, you can limit the time to access internet through the Client Filter. Filter Rule: Select Forbid Only or Permit Only. Rule ID: Select a rule ID from the drop-down list.
  • Page 52 W3002R Wireless N300 High Power Router Example 1: If you want prohibit PCs within the IP address range of 192.168.0.100--192.168.0.120 access Internet, do as follows: Example 2: if you want the pc with the IP address 192.168. 0.145 only can...

  • Page 53: Mac Filter

    W3002R Wireless N300 High Power Router 8.2 MAC Filter To better manage PCs in LAN, you can limit the time to access the internet through MAC Filter. Filter Rule: Select Forbid Only or Permit Only. Rule ID: Select a rule ID from the drop-down list.
  • Page 54 W3002R Wireless N300 High Power Router Example1: If you want to prohibit a PC with the MAC address 00:E0:4C:69:A4:10 to access Internet between 8:00 and18:00. Example2: if you want PC with the MAC address 00:E0:4C:69:A4:10 can access Internet between 8:00 and18:00 only from Monday to Friday.

  • Page 55: Url Filter

    W3002R Wireless N300 High Power Router 8.3 URL Filter To better control LAN PCs, you can use the URL filter functionality to allow or disallow such PC to access certain websites within a specified time range. Filter Rule: Select Forbid Only.
  • Page 56 W3002R Wireless N300 High Power Router Example: If you want to forbid the computers on your LAN to access “www.google.com” from 8：00 to 18：00 during working days: Monday- Friday, then do as follows: Note: Each rule can only include one domain name. Simply add more rules...

  • Page 57: Remote Web-Based Management

    W3002R Wireless N300 High Power Router 8.4 Remote Web-based Management The Remote management allows the Router to be configured from the Internet by a web browser. Enable Remote Web Management: Select it to enable the Remote Web Management feature, then you can access the router from Internet.

  • Page 58: Chapter 9 Routing Settings

    W3002R Wireless N300 High Power Router Chapter 9 Routing Settings 9.1 Routing Table This page displays the router’s routing table which lists destination IP, subnet mask, gateway, hop count and interface. The principal task for a router is to look for an optimal transfer path for data forwarding, and transfer it to the specified destination.

  • Page 59: Static Routing

    W3002R Wireless N300 High Power Router 9.2 Static Routing When there are several routers in the network, you may want to set up static routing. Static routing determines the path of the data in your network. You can use this feature to allow users on different IP domains to access the Internet via this device.

  • Page 60: Chapter 10 System Tools

    W3002R Wireless N300 High Power Router Chapter 10 System Tools 10.1 Time Settings This section assists you to set the device’s system time and date; you can either select to set the time and date manually or obtain the GMT time from Internet automatically.
  • Page 61 W3002R Wireless N300 High Power Router Service Provider: Select your DDNS service provider from the drop-down menu. User Name: Enter the DDNS user name registered with your DDNS service provider. Password: Enter the DDNS Password registered with your DDNS service provider.

  • Page 62: Backup/Restore

    W3002R Wireless N300 High Power Router 10.3 Backup/Restore This section allows you to backup the router settings or restore the settings you saved to the router. Backup: Once you have configured the device the way you want it, you can save...

  • Page 63: Firmware Update

    W3002R Wireless N300 High Power Router 10.5 Firmware Update Firmware upgrade is released periodically to improve the functionality of your device and also to add new features. If you run into a problem with a specific feature of the device, log on to our website (www.tendacn.com) to download the latest firmware to update your device.

  • Page 64: Change Password

    W3002R Wireless N300 High Power Router 10.7 Change Password This section allows you to change login password for accessing device’s Web-based interface. Click OK to submit your new password. Note: For security purpose, it is highly recommended that you change Device's default login password.

  • Page 65: Appendix 1 Glossary

    W3002R Wireless N300 High Power Router Appendix 1 Glossary Channel Channel A communication channel, also known as channel, refers either to a physical transmission medium such as a wire or to a logical connection over a multiplexed medium such as a radio channel. It is used to transfer an information signal, such as a digital bit stream, from one or more transmitters to one or more receivers.

  • Page 66: Appendix 2 Product Features

    W3002R Wireless N300 High Power Router Appendix 2 Product Features Compliant with IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3 and IEEE 802.3u standards High gain omni-directional antenna delivers more powerful signal and extends coverage to farther distance Up to 150+300Mbps wireless rate;...

  • Page 67: Appendix 3 Troubleshooting

    If your problem is not covered here, please feel free to go to www.tendacn.com to find a solution or email your problems to support@tenda.com.cn orsupport02@tenda.com.cn. We will be more than happy to help you out as soon as possible. 1. Q: I entered the device’s LAN IP address in the web browser but cannot access the utility.
  • Page 68 W3002R Wireless N300 High Power Router Web server is 80; FTP is 21; SMTP is 25 and POP3 is 110. Step 2: Enter Port Forwarding (also called Port Range Forwarding on some products) screen from device web UI. Step 3: Complete the Start Port (also called External/Ext Port on some products) and End Port (also called Internal/Int Port on some products) fields, say, 80-80.
  • Page 69 W3002R Wireless N300 High Power Router FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 70 W3002R Wireless N300 High Power Router This is a Class B product in a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures NOTE: (1) The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment.
