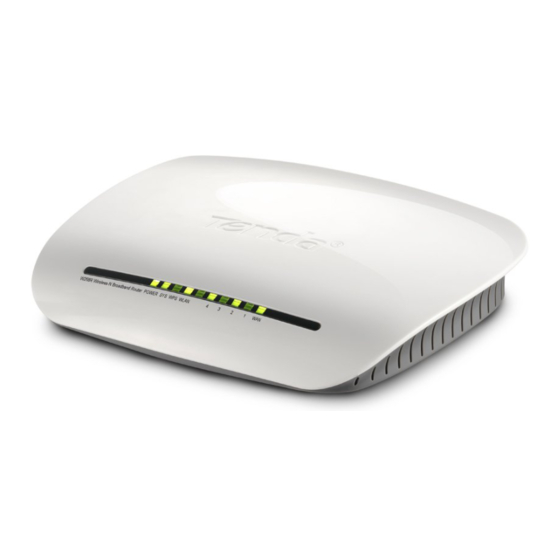

11N Wireless Broadband Router User Guide
Wireless-N Broadband Router
W268R
Notice
RF Exposure Statement
To maintain compliance with FCC's RF Exposure
guidelines, This equipment should be installed and
operated with minimum distance between 20cm the
radiator your body: Use only the supplied antenna.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W268R and is the answer not in the manual?

Questions and answers

Related Manuals for Tenda W268R

Summary of Contents for Tenda W268R

  • Page 1 11N Wireless Broadband Router User Guide Wireless-N Broadband Router W268R Notice RF Exposure Statement To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna.
  • Page 2 Copyright of the whole product as integration, including its accessories and software, belongs to Shenzhen Tenda Technology Co., Ltd. Without the permission of Shenzhen Tenda Technology Co., Ltd, any individual or party is not allowed to copy, plagiarize, reproduce or translate it into other languages.

  • Page 3: Table Of Contents

    11N Wireless Broadband Router User Guide Contents CHAPTER 1 PRODUCT INTRODUCTION ......... 1 1.1 P ................2 ACKAGE ONTENTS 1.2 LED I ........2 NDICATORS AND ESCRIPTION CHAPTER 2 PRODUCT INSTALLATION..........5 CHAPTER 3 HOW TO CONFIGURE TO ACCESS THE INTERNET ....................
  • Page 4 11N Wireless Broadband Router User Guide 6.1 DHCP S ..................49 ETTINGS 6.2 DHCP C ................50 LIENT CHAPTER 7 VIRTUAL SERVER ............52 7.1 P ............... 52 ANGE ORWARDING 7.2 DMZ S ..................56 ETTINGS 7.3 UPNP S ..................57 ETTINGS CHAPTER 8 SECURITY SETTINGS ............ 58 8.1 C ..............58 LIENT...
  • Page 5 11N Wireless Broadband Router User Guide APPENDIX 2 PRODUCT FEATURES ..........85 APPENDIX 3 FAQ ..................86 APPENDIX 4 CLEAR WIRELESS CONFIGURATION ....90 APPENDIX 5 REGULATORY INFORMATION ....... 94...

  • Page 6: Chapter 1 Product Introduction

    11N Wireless Broadband Router User Guide Chapter 1 Product Introduction Thank you for purchasing the Tenda W268R Wireless Broadband Router! This easy-to-use router provides simple configuration interface which enables you to configure it with ease. It is based on the latest IEEE802.11n standard, and is backward compatible with devices of IEEE802.11b/g standards.

  • Page 7: Package Contents

    One W268R Wireless Broadband Router One Quick Installation Guide One Power Adapter One Software CD If any of the listed items are missing or damaged, please contact the Tenda reseller for immediate replacement. 1.2 LED Indicators and Port Description Panel and LED indicators show:...
  • Page 8 11N Wireless Broadband Router User Guide LED indicator description on the front panel Back panel port show...
  • Page 9 11N Wireless Broadband Router User Guide Back panel port description...

  • Page 10: Chapter 2 Product Installation

    11N Wireless Broadband Router User Guide Chapter 2 Product Installation 1. Please use only the included power adapter to power your router. (NOTE: Use of an unmatched power adapter could cause damage to this product). 2. Please connect the router’s LAN port to your computer with an Ethernet cable as shown below.
  • Page 11 11N Wireless Broadband Router User Guide 3. Please connect your broadband line provided by your ISP to the router’s WAN port. 4. Insert the included software CD into the CD drive of your computer. After software automatically initiates, double click the “Setup” icon and follow the instructions to complete the installation.

  • Page 12: Chapter 3 How To Configure To Access The Internet

    11N Wireless Broadband Router User Guide Chapter 3 How to configure to access the Internet 3.1 How to Set the Network Configurations Network Configurations under windows XP 1. Right click “My Network Places” on your computer desktop and select “Properties”. 2.
  • Page 13 11N Wireless Broadband Router User Guide 3. Select “Internet Protocol (TCP/IP)” and click “Properties”. 4. Select “Obtain an IP address automatically” and...
  • Page 14 11N Wireless Broadband Router User Guide “Obtain DNS server address automatically”. Click “OK” to save the configurations. Or select “Use the following IP address” and enter the IP address, Subnet mask, Default gateway as follows: IP Address: 192.168.0.XXX: (XXX is a number from 2~254) Subnet Mask: 255.255.255.0 Gateway: 192.168.0.1...
  • Page 15 11N Wireless Broadband Router User Guide Network Configurations under windows 7 1. Click the network icon on the lower right corner of your computer desktop, and then click” Open Network and Sharing Center”.
  • Page 16 11N Wireless Broadband Router User Guide 2. Click “Change adapter settings” on the left side of the window. 3. Right click “Local Area Connection” and select “Properties”.
  • Page 17 11N Wireless Broadband Router User Guide 4. Double click” Internet Protocol Version 4(TCP/IPv4)".
  • Page 18 11N Wireless Broadband Router User Guide 5. Select “Obtain an IP address automatically” and “Obtain DNS server address automatically”. Click “OK” to save the configurations. Or select “Use the following IP address” and enter the IP address, Subnet mask, Default gateway as follows:...

  • Page 19: Log In To The Router

    11N Wireless Broadband Router User Guide IP Address: 192.168.0.XXX: (XXX is a number from 2~254) Subnet Mask: 255.255.255.0 Gateway: 192.168.0.1 DNS server: You should input the DNS server address provided by your ISP. Otherwise, you can enter 192.168.0.1. Click “OK” save configurations.
  • Page 20 11N Wireless Broadband Router User Guide 2. Type “admin” in the “Password” field. Click “OK”. 3. If you enter the correct password, you will come to the router’s web-based utility as is shown below.

  • Page 21: Fast Internet Access

    11N Wireless Broadband Router User Guide 3.3 Fast Internet Access Two kinds of fast access methods are provided on the router’s web-based utility: ADSL dial-up and DHCP. If you select ADSL dial-up, you only need to enter the access account and access password as well as the wireless password, and then click “Ok”...
  • Page 22 11N Wireless Broadband Router User Guide The default access method is ADSL dial-up and the access account and access password are the same as the ADSL dial-up account and password, which you can inquire your broadband ISP. For other access methods, please refer to WAN settings in chapter 4.The wireless password can only consist of 8 characters, the default is 12345678 and you can modify it when necessary.

  • Page 23: Fast Encryption

    11N Wireless Broadband Router User Guide 3.4 Fast Encryption The router provides two encryption setting screens, one is simple and easy, the other is advanced (For advanced setting, please refer to chapter 5.2). Simple and easy screen: Log on to the router’s web-based utility and you may set encryption for the router.

  • Page 24: Chapter 4 Advanced Settings

    11N Wireless Broadband Router User Guide Chapter 4 Advanced Settings 4.1 System Status System status screen allows you to view the router’s WAN port status and system status. Connection status: It displays the router’s WAN connection status. Disconnected: It indicates the router’s WAN port hasn’t been connected with the network cable.
  • Page 25 11N Wireless Broadband Router User Guide Connection type: It displays your current access method. LAN MAC address：It displays the Router’s LAN MAC address. WAN MAC address：It displays the Router’s WAN MAC Address. System time：It displays the system’s updated time Connected client ：It displays the number of the connected computers(normally it displays the number of clients whose IP addresses obtained via DHCP server)

  • Page 26: Wan Settings

    11N Wireless Broadband Router User Guide 4.2 WAN Settings Virtual Dial-up (PPPoE) Mode: Show your current connection mode. Access Account: Enter the account provided by your ISP. Access Password: Enter the password provided by your ISP. MTU: Maximum Transmission Unit. It is the size of the largest data packet that can be sent over the...
  • Page 27 11N Wireless Broadband Router User Guide network. The default value is 1492. Do NOT modify it unless necessary, but if a specific website or web application software cannot open or be enabled, you can try to change the MTU value to 1450, 1400, etc.
  • Page 28 11N Wireless Broadband Router User Guide settings” from “System tools”. Static IP If your ISP provides you the static IP, please choose static IP, and you need to enter the IP address, subnet mask, gateway, DNS server and alternate DNS server provided by your ISP or network administrator。...
  • Page 29 11N Wireless Broadband Router User Guide DNS server: Enter the necessary DNS server provided by your ISP. Alternate DNS server: Enter the second DNS address if your ISP provides, which is optional. Dynamic IP (Via DHCP) If your connection mode is Dynamic IP, it means every time you access the Internet, you will get a different IP.
  • Page 30 11N Wireless Broadband Router User Guide Mode: Show your current connection mode. PPTP server address: The IP address or domain name of the destination server and it is used to specify the destination address which needs for PPTP connection. Username/Password: Used to validate identity when connecting to the PPTP server.
  • Page 31 11N Wireless Broadband Router User Guide Subnet mask: Please enter the subnet mask provided by your ISP ,generally its 255.255.255.0 Gateway: Please enter the gateway provided by your ISP, inquire your local ISP if you are not clear. All the above parameters are provided by ISP. L2TP Mode: Show your current connection mode.
  • Page 32 11N Wireless Broadband Router User Guide when connecting to the L2TP server. Address mode: Set the router’s IP address mode, you can select either “Dynamic” or “Static”. If your ISP doesn’t provide the IP address, please select “Dynamic”. IP address: Please enter the IP address provided by your ISP, inquire your local ISP if you are not clear.

  • Page 33: Lan Settings

    11N Wireless Broadband Router User Guide 4.3 LAN Settings Click “Advanced settings” –LAN settings to enter the following screen. LAN MAC address: The Router’s LAN MAC address, which is unchangeable. IP address: The Router’s LAN IP address (not your PC’s IP address).The default value is 192.168.0.1; you can change it when necessary.

  • Page 34: Dns Settings

    11N Wireless Broadband Router User Guide 4.4 DNS Settings DNS stands for Domain Name System (or Service). DNS setting: Select to enable the DNS server. Primary DNS address: Enter the necessary address provided by your ISP. Alternate DNS address: Enter the second DNS address if your ISP provides, which is optional.

  • Page 35: Bandwidth Control

    11N Wireless Broadband Router User Guide 4.5 Bandwidth Control Bandwidth control is used to limit the communication traffic of LAN computers when accessing the Internet. It can simultaneously control maximum of 254 PCs' traffic. addition, address range configuration supported. Enable Bandwidth Control: To enable or disable the internal IP bandwidth control.
  • Page 36 11N Wireless Broadband Router User Guide download. Bandwidth Range: The maximum and minimum upload/download data traffic of the hosts in specified IP range. The unit is KByte/s. The uplink of upload and download can not exceed the WAN port bandwidth limitation range. Enable: To enable the current edited rule.
  • Page 37 11N Wireless Broadband Router User Guide 1.Enter 192.168.0.100 in the IP address field 2.Select upload in the Upload/Download field. 3.Enter 10-15 in the bandwidth range field 4.Select “Enable” 5.Click “Add to list” 6.Click “Ok” to finish the upload rule settings. And then add a download rule as shown in the picture below.
  • Page 38 11N Wireless Broadband Router User Guide The setting method is the same as the above. Example 2 Set the download rate of all computers within the range of 192.168.0.2--192.168.0.254 as 100-120KByte/s, and the upload rate as 20-30KByte/s, as shown in the picture below.
  • Page 39 11N Wireless Broadband Router User Guide The setting method is the same as Example 1.

  • Page 40: Traffic Statistics

    11N Wireless Broadband Router User Guide 4.6 Traffic Statistics Traffic statistics is used to display the bandwidth that LAN PC used. Enable Traffic statistics: It is used to calculate the traffic used by the LAN computers. You can enable it to calculate the traffic for you.
  • Page 41 11N Wireless Broadband Router User Guide second, the unit is KByte/s. Sent message: the number of the calculated computer’s data packets that are sent out through the router. Sent Bytes: volume calculated computer’s statistics that is sent out through the router Received message: the number of the calculated computer’s the data packets that are received...

  • Page 42: Chapter 5 Wlan Settings

    11N Wireless Broadband Router User Guide Chapter 5 WLAN Settings 5.1 Wireless Basic Settings Enable wireless function: Select to enable the Router’s wireless features; deselect to disable it and all functions related with wireless are disabled. Wireless working mode: This router provides two kinds of working modes: Wireless Access Point(AP) and Network Bridge (WDS) Wireless Access Point (AP)
  • Page 43 11N Wireless Broadband Router User Guide drop-down list. 11b mode：Select it if you have only Wireless-B clients in your network. 11g mode：Select it if you have only Wireless-G clients in your network. 11b/g mixed mode: Select it if you have only Wireless-B and Wireless-G clients in your network.
  • Page 44 11N Wireless Broadband Router User Guide APSD Capable: It is used for auto power-saved service. The default is disabled. Channel bandwidth: Select appropriate channel bandwidth enhance wireless performance. Select 20/40M when the network has 11b/g and 11n wireless clients. Select 20M when the network has only non-11n wireless clients.
  • Page 45 11N Wireless Broadband Router User Guide AP MAC address: Input the MAC address of another (opposing) wireless router you want to connect. Example: This example is to bridge two 316R routers. 1. If you know the connecting router’s MAC address, please enter it into the AP MAC address field and click “Ok”.
  • Page 46 11N Wireless Broadband Router User Guide 2. You can also search for the wireless router’s signal by scanning. Click “Open scan” and click the scanned signal and click the ”Ok” button on the dialog box and the corresponding wireless MAC address will be added to the AP MAC address field automatically.
  • Page 47 11N Wireless Broadband Router User Guide Click “Ok” after the MAC address is added.

  • Page 48: Wireless Security Settings

    11N Wireless Broadband Router User Guide After finishing the above steps, you need to set the other W268R router in the same way. NOTE: WDS feature requires both routers support this function and the SSID, channel, encryption method and password are the same as those of the connecting router.

  • Page 49: Wps Settings

    11N Wireless Broadband Router User Guide intercepting or intruding your wireless network. 5.2.1 WPS Settings WPS (Wi-Fi Protected Setting) makes it quick and easy to establish a secure connection between the wireless clients and the router. The users only need to enter a PIN code or press WPS button on the back panel to configure it without manually selecting an encryption method or set a key.
  • Page 50 11N Wireless Broadband Router User Guide WPS mode: Provide two ways: PBC (Push-Button Configuration) and PIN code. PBC: Select the PBC and click Ok, or press and hold the WPS button on the back panel of the device for about one second. The WPS LED indicator will be flashing for 2 minutes, which means the WPS is enabled.
  • Page 51 11N Wireless Broadband Router User Guide WPA Algorithms: Provides TKIP [Temporal Key Integrity Protocol] or AES [Advanced Encryption Standard]. Key: Enter the pass phrase that consists of 8-63 ASCII characters. Key Renewal Interval Set the key’s renewal period, which tells the device how often it should change the dynamic keys.
  • Page 52 11N Wireless Broadband Router User Guide 5.2.3 WPA2- PSK WPA2 (Wi-Fi Protected Access version 2) provides higher security than and WPA (Wi-Fi Protected Access). WPA Algorithms: Provides TKIP [Temporal Key Integrity Protocol] or AES [Advanced Encryption Standard]. Key: Enter the pass phrase that consists of 8-63 ASCII characters.

  • Page 53: Wireless Access Control

    11N Wireless Broadband Router User Guide 5.3 Wireless Access Control Wireless access control is actually based on the MAC address to permit or forbid specific clients to access the wireless network. MAC address filter: “Permit” indicates to allow the clients in the list to access the wireless network, “Forbid”...

  • Page 54: Connection Status

    11N Wireless Broadband Router User Guide 5.4 Connection Status This screen shows wireless client’s connection status, including MAC address, Channel bandwidth. MAC address: Shows the MAC addresses of the hosts connected to the Router. Bandwidth: Shows the channel bandwidth of the current connected hosts (wireless clients).

  • Page 55: Dhcp Client List

    11N Wireless Broadband Router User Guide premise activating “Obtain Address Automatically”. So specifying the start and end address of the IP Address pool is needed. DHCP server: Check the Enable box to enable DHCP server. IP pool start/end address: Enter the range of IP addresses for DHCP server distribution.
  • Page 56 11N Wireless Broadband Router User Guide are assigned by the DHCP server. You can manually enter the IP and MAC address and convert them to static assignment. Host name: It displays the name of the computer whose IP is allocated by the DHCP server. IP address: Enter the IP address which needs static binding.

  • Page 57: Chapter 7 Virtual Server

    11N Wireless Broadband Router User Guide Chapter 7 Virtual Server 7.1 Port Range Forwarding Start/End port: Enter the start/end port number which ranges the External ports used to set the server or Internet applications. LAN IP: Enter the IP address of the PC which you want to set as the server.
  • Page 58 11N Wireless Broadband Router User Guide protocol you are using, you can select “Both”. Enable: Click the Enable checkbox to bring the set rule into effect. Delete: Clear all settings of this item. Well-known service port: well-known protocol ports are listed in the drop-down list. Select one and select a sequence number in the ID drop-down list and then click “Add”, this port will be added automatically to the ID list.
  • Page 59 11N Wireless Broadband Router User Guide and its port 21 will be added to the corresponding field automatically. 2. Enter 192.168.0.10 in the LAN IP column, and then select “Both” as the protocol and select “Enable”. 3. As the picture shown below. 4.
  • Page 60 11N Wireless Broadband Router User Guide ftp://172.16.102.89:21 in the address field. NOTE: If you set the service port of the virtual server as 80, you must set the Web management port on Remote Web Management screen to be any value except 80 such as 8080.

  • Page 61: Dmz Settings

    11N Wireless Broadband Router User Guide 7.2 DMZ Settings The DMZ Settings screen allows one local computer to be exposed to the Internet for use of a special-purpose service such as Internet gaming or videoconferencing. DMZ hosting forwards all the ports at the same time to one PC.

  • Page 62: Upnp Settings

    11N Wireless Broadband Router User Guide 7.3 UPNP Settings UPnP (Universal Plug and Play).With the UPnP function, the internal host can request the router to process some special port switching so as to enable the external host to visit the resources of the internal host. Enable UPnP: Click the checkbox to enable the UPnP.

  • Page 63: Chapter 8 Security Settings

    11N Wireless Broadband Router User Guide Chapter 8 Security Settings 8.1 Client Filter Settings You can enable client filter to control LAN computers’ access to some ports of the Internet。 Filter Mode: You can select either “Permit only” or “Forbid only”. Access Policy: Select one number from the drop-down list.
  • Page 64 11N Wireless Broadband Router User Guide Port: Enter the controlled TCP/UDP protocol port. You can specify a port or port range. Type: Select one protocol (TCP/UDP/Both) from the drop-down list. Time: Select the time range of client filter. Date: Select the day(s) to run the access policy. Enable: To enable/disable the access policy (forbid/permit the packets matched with the access policy to pass through the router.

  • Page 65: Mac Address Filter

    11N Wireless Broadband Router User Guide 18:00 from Sunday to Saturday. 8.2 MAC Address Filter You can limit the computer’s access to Internet by MAC Address Filter.
  • Page 66 11N Wireless Broadband Router User Guide Filter mode: You can select either “Permit only” or “Forbid only”. Access Policy: Select one number from the drop-down list. Remark: A simple description of the configured file. You can also leave it blank. MAC Address: Enter the MAC address you want to run the access policy.
  • Page 67 11N Wireless Broadband Router User Guide of 00:E0:4C:69:A3:23 to access Internet during 8:00 to 18:00 from Monday to Friday. Example 2 Permit the computer with the MAC address of 00：E4：A5：44：35：69 to access Internet from Monday to Friday.

  • Page 68: Url Filter Settings

    11N Wireless Broadband Router User Guide 8.3 URL Filter Settings You can use URL filtering to forbid their access to certain websites at a specified time. Filter Mode: You can select either “Permit only” or “Forbid only”. Access Policy: Select one number from the drop-down list.
  • Page 69 11N Wireless Broadband Router User Guide Time: Select the time range of URL filter. Date: Select the day(s) to run the access policy. Enable: To enable/disable the access policy (forbid /permit the packets matched with the access policy to pass through the router). Example1 Forbid all computers on LAN to access baidu.com during 8:00 to 18:00 from Monday to Friday.

  • Page 70: Remote Web Management

    11N Wireless Broadband Router User Guide NOTE: Enter only one domain name for each access policy for one access policy can only filter one domain name. So, if you want to filter multiple domain names, you need to set multiple access policies 8.4 Remote Web Management This section instructs how to allow the network administrator to manage the Router remotely.
  • Page 71 11N Wireless Broadband Router User Guide Enable: Check enable remote management. Port: The management port open to outside access. The default value is 80. IP Address: Specify the range of the IP addresses of the computers on the Internet for remote management.
  • Page 72 11N Wireless Broadband Router User Guide Router to implement remote web management. For example: If you want to configure the computer at the IP address of 218.88.93.33 to access the router’s web-based utility via port 8080, please set the parameters as above.

  • Page 73: Chapter 9 Routing Settings

    11N Wireless Broadband Router User Guide Chapter 9 Routing Settings 9.1 Routing Table This page shows the router’s core routing table. The main duty for a router is to look for a best path for every data packet, and transfer this data packet to a destination station.
  • Page 74 11N Wireless Broadband Router User Guide Destination network IP address: The destination host or IP segment you visit. Subnet mask: Enter the subnet mask, generally it is 255.255.255.0 Gateway: The entry IP address of the next router. NOTE: 1. The gateway must be at the same net segment with the router’s LAN IP.

  • Page 75: Chapter 10 System Tools

    11N Wireless Broadband Router User Guide Chapter 10 System Tools 10.1 Time Settings This section is to configure the router’s system time. You can set it manually or obtain the GMT time from the Internet. Time zone: Select the time zone where you are operating the Router from the drop-down list.

  • Page 76: Ddns

    11N Wireless Broadband Router User Guide Internet. Only when you connect to the Internet and obtain the GMT time or set the time on this screen, can the time settings in other functions (e.g. security settings) take effect. 10.2 DDNS DDNS (Dynamic Domain...
  • Page 77 Domain name: Enter the effective registered domain name For example: Establish a Web server in the local host 192.168.0.10 and register in 3322.org as follows: Username Tenda Password 123456 Domain Name tenda.3322.org After mapping the port in the virtual server, and setting...

  • Page 78: Backup/Restore

    11N Wireless Broadband Router User Guide account information in DDNS server, you can then access the web page by entering http://tenda.3322.org in the address field. 10.3 Backup/Restore On this screen, you can back up the router’s current settings or restore previous settings.
  • Page 79 11N Wireless Broadband Router User Guide Click the “Save” button to save the configuration files.
  • Page 80 11N Wireless Broadband Router User Guide Restore Setting: Click the “Browse” button to select the backup files. Click the “Restore” button to restore previous settings.
  • Page 81 11N Wireless Broadband Router User Guide...

  • Page 82: Restore To Factory Default

    11N Wireless Broadband Router User Guide 10.4 Restore to Factory Default This screen allows you to restore all settings to the factory default values. Restore: Click this button to restore to default settings. Factory default settings: Password: admin IP address: 192.168.0.1 Subnet mask: 255.255.255.0 NOTE: After restoring to default settings, please restart...

  • Page 83: Reboot The Router

    11N Wireless Broadband Router User Guide upgrade file from our website, www.tenda.cn. Browse: Click this button to select the upgrade file. Upgrade: Click this button to start the upgrading process. After the upgrade is completed, the router will reboot automatically.

  • Page 84: Password Change

    11N Wireless Broadband Router User Guide Reboot the router: Click this button to reboot the router. 10.7 Password Change This section is to set a new password to better secure your router and network. Old password: Enter the old password. New password: Enter a new password.
  • Page 85 11N Wireless Broadband Router User Guide Confirm new password: Re-enter to confirm the new password. NOTE: To secure the router and your network, it is highly recommended that change initial password.

  • Page 86: Syslog

    11N Wireless Broadband Router User Guide 10.8 Syslog The section is to view the system log. You can view various conditions appearing after system start, and also check whether there’s an attack on the network. The log can record at most 150 entries. Refresh: Click this button to update the log.

  • Page 87: Log Out

    11N Wireless Broadband Router User Guide 10.9 Log out After all settings are finished, please click’” Log out” to exit securely and completely.

  • Page 88: Appendix 1 Glossary

    11N Wireless Broadband Router User Guide Appendix 1 Glossary Channel: An instance of medium use for the purpose of passing protocol data units (PDUs) that used simultaneously, in the same volume of space, with other instances of medium use(on other channels) by other instances of the same physical layer (PHY),with an acceptably low frame error ratio(FER) due to mutual interference.
  • Page 89 11N Wireless Broadband Router User Guide the network.WPA2 is the second generation of WPA security and provides a stronger encryption mechanism through Advanced Encryption Standard (AES), which is a requirement for some government users. 802,1x authentication Static WEP key is difficult to manage for when you change the key, you will have to inform all others, and if the key is disclosed in one of the places, the key can no longer provide security.

  • Page 90: Appendix 2 Product Features

    11N Wireless Broadband Router User Guide Appendix 2 Product Features Supports IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3 and IEEE 802.3u standards. 5dBi high gain omni-directional antenna, with strong signals and long transmission distance. Wireless transmission rate up to 150Mbps Provides 10/100Mbps auto-negotiation...

  • Page 91: Appendix 3 Faq

    The instructions below may help you deal with the problems. If your problem is not in the list, please log into our website www.tenda.cn or send an E-mail to support@tenda.cn, and we will reply to you at the earliest time.
  • Page 92 11N Wireless Broadband Router User Guide the Router’s LAN IP address 192.168.0.1 (open “Command Prompt” and type “Ping 192.168.0.1” and then enter). If it is OK, please make sure your browser does not access the Internet by proxy server. If the ping fails, you can press the “RESET”...
  • Page 93 11N Wireless Broadband Router User Guide 1450 or 1400. 5.How to share my computer’s resource with other users in Internet？ If you want Internet users to access the internal server via the router such as: e-mail server, Web, FTP. You can configure the “Virtual Server”.
  • Page 94 11N Wireless Broadband Router User Guide WEB Server FTP Server Telnet NetMeeting 1503、1720 File Send:6891-6900(TCP) TCP/UDP Messenger Voice:1863、6901(TCP) Voice:1863、5190(UDP) PPTP VPN 1723 Iphone5.0 22555 SMTP POP3...

  • Page 95: Appendix 4 Clear Wireless Configuration

    11N Wireless Broadband Router User Guide Appendix 4 Clear Wireless Configuration Clear Wireless configuration file under windows 1. Right click “My Network Places” on your computer desktop and select “Properties”. 2. Right click “Wireless Network Connections” and select “Properties”.
  • Page 96 11N Wireless Broadband Router User Guide 3. Click “Wireless Network Configuration” and clear the corresponding wireless configuration file as shown below. Clear Wireless configuration file under windows 7 1. Right click “Network” and click “Properties”.
  • Page 97 11N Wireless Broadband Router User Guide 2. Click “Manage wireless networks” on the left side of the window. 3. Delete the corresponding configured file in the “Manage wireless networks”.
  • Page 98 11N Wireless Broadband Router User Guide...

  • Page 99: Appendix 5 Regulatory Information

    11N Wireless Broadband Router User Guide Appendix 5 Regulatory Information EU Declaration or Declaration of Conformity Hereby, SHENZHEN TENDA TECHNOLOGY CO.,LTD, declares that this Wireless Broadband Router is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
  • Page 100 11N Wireless Broadband Router User Guide -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
