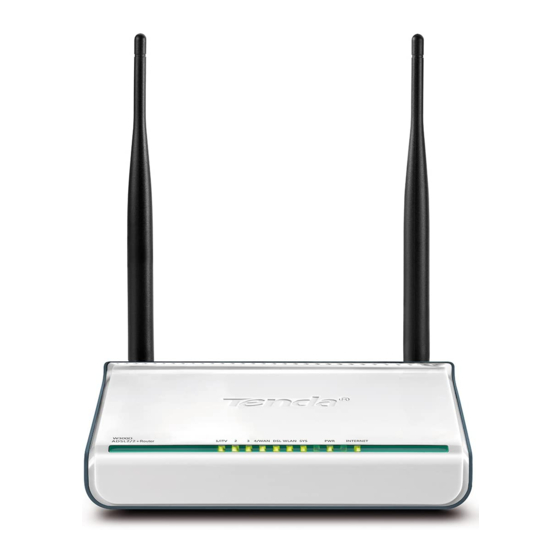

Tenda w150d User Manual
  1. Manuals
  2. Brands
  3. Tenda Manuals
  4. Network Router
  5. W150D
  6. User manual

Tenda w150d User Manual

Adsl2/2+
Hide thumbs Also See for w150d:
Table of Contents

Advertisement

Quick Links

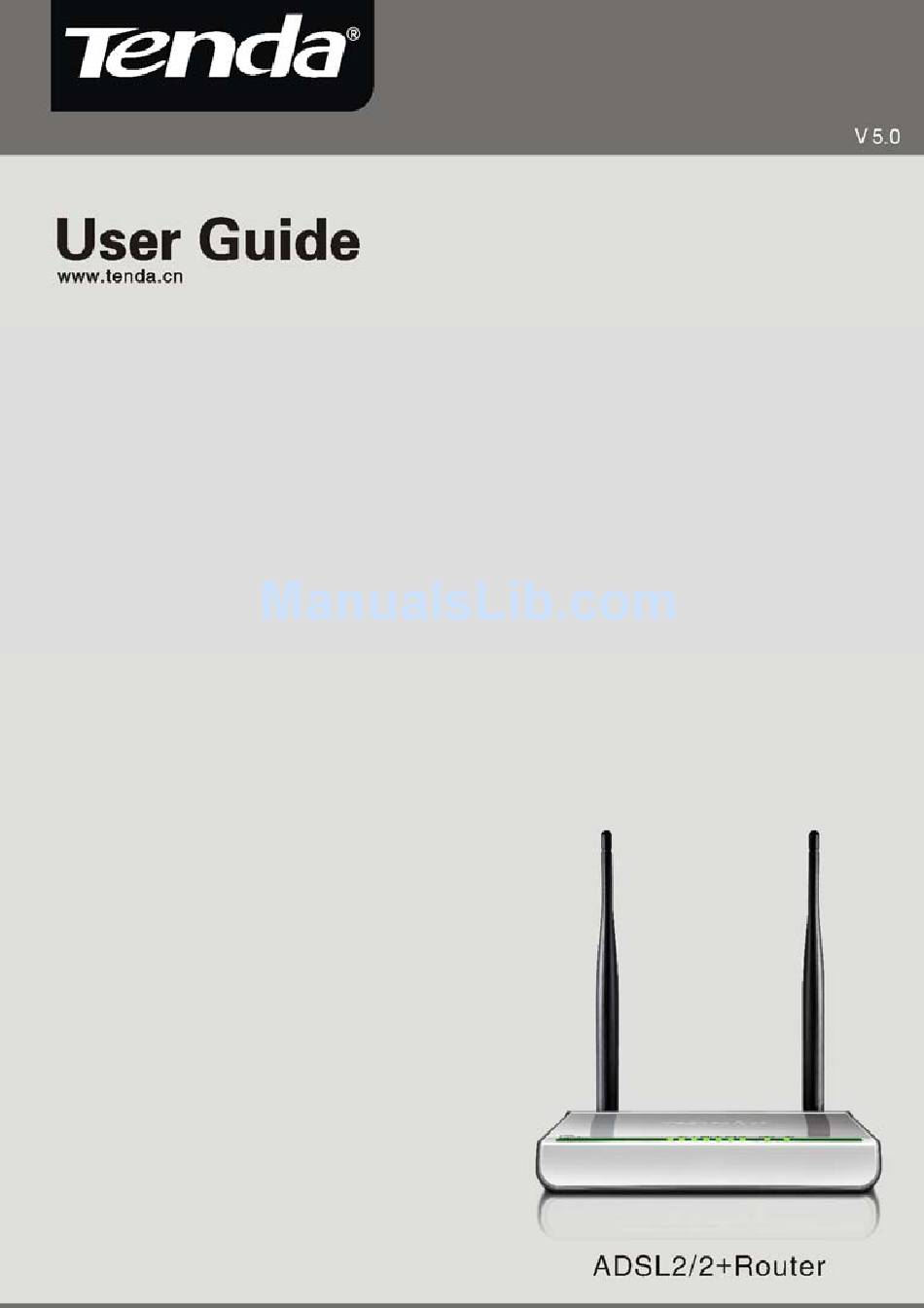

ADSL2/2+ Router
Copyright Statement
is the registered trademark of Shenzhen Tenda
Technology Co., Ltd. All the products and product names
mentioned herein are the trademarks or registered
trademarks of their respective holders. Copyright of the
whole product as integration, including its accessories and
software, belongs to Shenzhen Tenda Technology Co., Ltd.
Without
prior
expressed
written
permission
from
Shenzhen Tenda Technology Co., Ltd, any individual or
party is not allowed to copy, plagiarize, reproduce, or
translate it into other languages.
All photos and product specifications mentioned in
this manual are for references only. Upgrades of software
and hardware may occur; Tenda reserves the right to
revise this publication and to make changes in the content
hereof without obligation to notify any person or
organization of such revisions or changes. If you would
like to know more about our product information, please
visit our website at www.tenda.cn
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the w150d and is the answer not in the manual?

Questions and answers

Related Manuals for Tenda w150d

Summary of Contents for Tenda w150d

  • Page 1 All photos and product specifications mentioned in this manual are for references only. Upgrades of software and hardware may occur; Tenda reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes.

  • Page 2: Table Of Contents

    ADSL2/2+ Router Table of Contents ............. - 1 - COPYRIGHT STATEMENT ..........- 5 - CHAPTER 1 PRODUCT OVERVIEW .............- 7 - ACKAGE ONTENTS .......... - 8 - CHAPTER 2 HARDWARE OVERVIEW 2.1 F ................- 8 - RONT ANEL 2.1 B ............- 10 - ANEL VERVIEW...
  • Page 3 ADSL2/2+ Router 4.3.3 MAC Address Clone ............. - 43 - 4.3.4 DHCP ................- 44 - 4.3.4 ADSL Settings .............. - 47 - 4.4 W ................- 47 - IRELESS 4.4.1. Basic Settings.............. - 48 - 4.4.2 Security ................ - 52 - 4.4.3 MAC-based Wireless Access Control ......
  • Page 4 ADSL2/2+ Router 4.7.6 Firmware Upgrade............- 91 - 4.7.7 Restore to Factory Default Settings......- 93 - ................. - 94 - A PPENDIX 1 1. C PC’ TCP/IP ..........- 94 - ONFIG MANUALLY 2. I PC.............- 95 - NITIATE A DIALUP ON .................

  • Page 5: Chapter 1 Product Overview

    This user guide applies to Tenda wireless N ADSL2+ Note: modem routers both W300D and W150D. W300D is used as an example throughout this user guide for demonstration and explanation. These two products differ in the following ascpects: the former is equipped with 2 antennas and delivers up to 300Mbps wireless rate;...
  • Page 6 ADSL2/2+ Router 1.1 Features Web based easy-to-install utility allows quick and simple settings for Internet connection Complies with IEEE802.11b/g/n, IEEE802.3, IEEE802.3u, ADSL, ADSL2, ADSL2+ standards etc Connect to Internet through DSL line or Ethernet cable Bridge, PPPoE, PPPoA, dynamic IP and static IP, Internet connection types Combines the function of an ADSL2+ Modem, wireless router, wired router and switch...

  • Page 7: Package Contents

    ADSL2/2+ Router Package Contents Unpack the package and check the following items. If any of the listed items below is missing or damaged, contact your Tenda reseller for immediate replacement. Power Adapter ADSL Splitter Ethernet Cable Telephone Lines Quick Installation Guide...

  • Page 8: Chapter 2 Hardware Overview

    ADSL2/2+ Router Chapter 2 Hardware Overview 2.1 Front Panel W300D’s Front Panel 9 LED indicators are located on the device’s front panel. They indicate the device’s working status. Below table lists detailed description of each such LED: Color Status Description Always Device is properly powered.
  • Page 9 ADSL2/2+ Router Green Flashing Device functions normally Flashing Transferring data WLAN Green Wireless radio is deactivated Slow ADSL connection Flashing established Green Fast ADSL connection being Flashing established Always connection has already been established Unconnected 1/itv，2， Flashing Transferring data 3，4/wan Green Always Device has been connected to the...

  • Page 10: Back Panel Overview

    ADSL2/2+ Router 2.1 Back Panel Overview Back Panel Overview (W300D) ON/OFF： Power switch. RESET: Pressing and holding it for over 8 seconds restores factory default settings. POWER: Power receptacal. Note that using a power adapter with a different voltage rating than the one included with the device will cause damage to the product.
  • Page 11 ADSL2/2+ Router Follow the diagram below to connect your network devices if you plan to use Ethernet uplink mode (namely, Ethernet cable). - 11 -...

  • Page 12: Chapter 3 Quick Setup For Internet Connection

    ADSL2/2+ Router Chapter 3 Quick Setup for Internet Connection You can log into the device web utility: either via a web browser or Setup Wizard on the included CD-ROM. Before configuring the device, you need to config your PC’s TCP/IP settings.
  • Page 13 ADSL2/2+ Router Right click “Local Area Connection” and select “Properties”. Select” Internet Protocol Version 4(TCP/IPv4)"and then click “Properties”. - 13 -...
  • Page 14 ADSL2/2+ Router Select “Obtain an IP address automatically” and “Obtain DNS server address automatically”. Click “OK” to save the configurations. - 14 -...

  • Page 15: Logging On To Web Manager Using The Setup Wizard

    ADSL2/2+ Router f) Click OK in the “Local Area Connection Properties” window. Note: Certainly you can also config your PC’s TCP/IP manually. For more info, refer to Appendix 1-1. 3.2 Logging on to Web Manager using the Setup Wizard To access device web manager via the Setup Wizard, do as follows: 1.

  • Page 16: Logging On To Web Manager Via Web Browser

    ADSL2/2+ Router 3.3 Logging on to Web Manager via Web Browser Before accessing Web utility verify the connectivity between the device and your computer. To do so, follow steps below: 1. Click the Start icon on the bottom left corner of your computer desktop.
  • Page 17 ADSL2/2+ Router 3. Enter “ping 192.168.1.1”, and press Enter. If your screen displays the following results, it indicates your computer has been successfully connected to the device. Now follow steps below to log on to device web-based utility: Open the IE Browser as below. Input http://192.168.1.1 in the address field and press “Enter”.
  • Page 18 ADSL2/2+ Router Enter “admin” in both password and user name fields. You will enter following screen: - 18 -...
  • Page 19 ADSL2/2+ Router Setup Internet Connection We have just explained how to log on to the router above. And in this section, it illustrates you how to setup your Internet connection quickly. Now check whether you have the screen below, if not, please re-log on to the device.
  • Page 20 ADSL2/2+ Router VPI/VCI values vary depending on different countries and area. The device has integerated common VPI/VCI values of some countries and areas. So you can just select your country and area, the VPI/VCI values (if included) for that specific area in your country will be populated automatically.
  • Page 21 ADSL2/2+ Router After entering user name and password, click “OK” to save settings. When the “Connection Status” displays “Connected”, you can start surfing Internet. - 21 -...
  • Page 22 ADSL2/2+ Router The device provides wireless feature, it is advisable to secure your wireless network with encryption. Use the interface below to fast secure your wireless network (Only a catchy security key is required) or go to Advanced (click the “Advanced”...
  • Page 23 ADSL2/2+ Router Security Key: Enter a catchy phrase of 8-64 characters for authenticating on wireless clients that try to connect to your wireless network. For example: If you want to set the security key to 88888888, then simply enter it in the security key field below: The device SSID is preset to “tenda_xxxxxx”...
  • Page 24 ADSL2/2+ Router wireless network adapter’s scan list: Note: The device default SSID is “Tenda_XXXXXX” where “XXXXXX” stands for the last 6 characters in the device MAC address. 1. Click (wireless connection icon) to search for wireless networks as below: 2. Click “tenda_051609”, select “Connect” to go to the dialogue box below and Enter the security key: 88888888.
  • Page 25 ADSL2/2+ Router 3. Click “OK” and device will automatically connect such wireless adapter to the wireless network in a while. Advanced settings provide you more and powerful functionalities such as bandwidth control, access control and port forwarding, etc. Read sections hereunder if you'd like to know more. - 25 -...

  • Page 26: Chapter 4 Advanced Settings

    ADSL2/2+ Router Chapter 4 Advanced Settings On the screen below, click “Advanced”: And you shall see 7 main menus below: - 26 -...

  • Page 27: Status

    ADSL2/2+ Router 4.1 Status 4.1.1 General This section displays device's current software/hardware version, uptime and system mode info as below： - 27 -...

  • Page 28: Adsl

    ADSL2/2+ Router 4.1.2 ADSL This section displays ADSL version/mode, ANNEX type, ADSL connection status and virtual circuit settings, etc as below: 4.1.3 LAN This section displays LAN info: MAC/IP address and subnet mask as below. - 28 -...

  • Page 29: Wan

    ADSL2/2+ Router 4.1.4 WAN This section displays WAN info: Internet connection type, connection status, MAC/IP address, gateway, primary/secondary DNS, subnet mask and uptime as below. 4.1.5 Wireless This section displays wireless info: wireless radio status (enabled/disabled), SSID, channel, network mode (802.11 mode), wireless security settings, channel bandwidth, MAC address, WDS status and uptime as below：...

  • Page 30: Adsl Traffic Statistics

    ADSL2/2+ Router 4.1.6 ADSL Traffic Statistics This section displays number of packets sent/received on ADSL link as below. 4.2 Quick Setup This setup wizard guides you through basic settings for Internet connection. - 30 -...
  • Page 31 ADSL2/2+ Router 3 system modes are supported on the device as below: Wireless ADSL Routing Mode: In this mode, device connects to Internet via a telephone cable. And PCs with wireless adapters can connect to the device wirelessly. Wireless ADSL Bridging Mode: In this mode, the DSL port functions as an Internet port.
  • Page 32 ADSL2/2+ Router This is the ADSL uplink virtual connection. Consult your ISP for PVC settings and enter them manually. The device supports 4 Internet connection types (The default is IPOE-Dynamic IP). PPPOE: Connect to Internet via PPPOE virtual dialup. IPOE-Dynamic IP: Connect to Internet via a dynamic IP assigned by ISP over Ethernet.
  • Page 33 ADSL2/2+ Router over Ethernet. IPOA-Dynamic IP: Connect to Internet via a dynamic IP over ATM. IPOA- Static IP: Connect to Internet via a fixed IP over ATM. PPPOA: Connect to Internet via PPPOE virtual dialup over ATM. Select PPPoE, click “Next”, if your ISP is using a PPPoE connection, and then enter the user name and password provided by your ISP.
  • Page 34 ADSL2/2+ Router IP Address: Enter the WAN IP address provided by your ISP. Consult your ISP if you are not clear. Subnet Mask: Enter the WAN Subnet Mask provided by your ISP. Consult your ISP if you are not clear. Gateway: Enter the WAN Gateway address provided by your ISP.
  • Page 35 ADSL2/2+ Router If you are not planning to change any default settings, click “Next”. After completing the basic wireless settings, the screen below shall be displayed. Click “Save” to save your settings and you will be advised to reboot the device. When reboot completes, you can go to “Status”→”WAN” to view such settings.

  • Page 36: Network

    ADSL2/2+ Router 4.3 Network - 36 -...

  • Page 37: Lan

    ADSL2/2+ Router 4.3.1 LAN MAC Address: Displays device’s LAN MAC address. It is unconfigurable. IP Address: Device’s LAN IP. The default is 192.168. 1.1. You can change it according to your need. Subnet Mask: Device’s LAN subnet mask. The default is 255.255.255.0.
  • Page 38 ADSL2/2+ Router Internet connection Type: Displays current Internet connection type. User Name: Enter the User Name provided by your ISP. Password: Enter the password provided by your ISP. Display Password: Display password as it is instead of in codes. MTU: Maximum Transmission Unit. DO NOT change it from the factory default of 1492 unless necessary.
  • Page 39 ADSL2/2+ Router IPoE→Dynamic IP If your ISP using an IPoE connection and does not give you any IP info, then select IPoE→Dynamic IP. The device will obtain an IP address from ISP automatically. MTU: Maximum Transmission Unit. The default value is 1500. Set DNS Server Manually: Check the box to enter DNS address(es) manually.
  • Page 40 ADSL2/2+ Router by your ISP in corresponding fields. IP Address: Enter the WAN IP address provided by your ISP. Consult your ISP if you are not clear. Subnet Mask: Enter WAN Subnet Mask provided by your ISP. The default is 255.255.255.0. Gateway: Enter the WAN Gateway provided by your ISP.
  • Page 41 ADSL2/2+ Router The device will obtain an IP address from ISP automatically. IPoA→Static IP If your ISP using an IPoA connection and assigns a fixed IP address to you, then select IPoA→Static IP, and enter the IP address, subnet mask, primary DNS and secondary DNS(optional) info provided by your ISP in corresponding fields.
  • Page 42 ADSL2/2+ Router IP Address: Enter the WAN IP address provided by your ISP. Consult your ISP if you are not clear. Subnet Mask: Enter WAN Subnet Mask provided by your ISP. The default is 255.255.255.0. Gateway: Enter the WAN Gateway provided by your ISP. Primary DNS Server: Enter the DNS address provided by your ISP.

  • Page 43: Mac Address Clone

    ADSL2/2+ Router Click “Network” ->“WAN” and select PPPoA from corresponding drop-down list. User Name: Enter the User Name provided by your ISP. Password: Enter the password provided by your ISP. Display Password: Display password as it is instead of in codes. MTU: Maximum Transmission Unit.

  • Page 44: Dhcp

    ADSL2/2+ Router MAC Address: Config device’s WAN MAC address. You can either enter one manually or click the “Clone MAC” button to copy your PC’s MAC. Clone MAC: Clicking this button changes device’s WAN MAC address from default to the MAC address of the PC you are currently on.
  • Page 45 ADSL2/2+ Router mask, gateway and DNS etc), eliminating the need for manual intervention... Start IP Address: Enter the starting IP address for the DHCP server’s IP assignment. End IP Address: Enter the ending IP address for the DHCP server’s IP assignment. Lease Time: The length of time for the IP address lease.
  • Page 46 ADSL2/2+ Router IP Address: Displays the IP address assigned by the DHCP server. MAC Address: Displays the MAC address of a corresponding DHCP client (PC or other network device). Host name: Displays the name of a PC or other network device (DHCP client).

  • Page 47: Adsl Settings

    ADSL2/2+ Router 4.3.4 ADSL Settings This section allows you to select an ADSL mode and an ANNEX type, as well as config VPI/VCI settings for both Internet connection and IPTV connection. Note: DO NOT change default settings on the screen above unless neccessary.

  • Page 48: Basic Settings

    ADSL2/2+ Router 4.4.1. Basic Settings SSID ：A SSID (Service Set Identifier) is the unique name of a wireless network. Channel: For an optimal wireless performance, you may select the least interferential channel. It is advisable that you select an unused channel or “Auto” to let device detect and select the best - 48 -...
  • Page 49 ADSL2/2+ Router possible channel for your wireless network to operate on from the drop-down list. There are 13 channels available. Enable Wireless: Check/uncheck to activate/ deactivate wireless radio. If disabled, all wireless related features will be disabled automatically. Enable Broadcast SSID: Check/uncheck to make your wireless network visible/ invisible to any wireless clients within coverage when they perform a scan they perform a scan to see what’s available.
  • Page 50 ADSL2/2+ Router Step1: Click icon on bottom right corner as seen in the screenshot above. Step2: Click “Open Network and Sharing Center” to display the screen below. Step3: Click “Manage Wireless Network” to enter the page below: Step4: Click the “Add” button on the page above to - 50 -...
  • Page 51 ADSL2/2+ Router enter “Manually connect to a wireless network” page and select “Manually create a network profile” on the page below: Step5: Enter the required wireless network info on the page below, and then click “Next”. Network name: The name of the wireless network to add (SSID). Security type: Enter the security mode of the wireless network.

  • Page 52: Security

    ADSL2/2+ Router Step6: Click the “Close” button and you have added the wireless network manually. You can go to “Manage Wireless Network” to check it. 4.4.2 Security - 52 -...
  • Page 53 ADSL2/2+ Router AuthenticationType: Select “Open” or “Shared” WEP Key Format: Select HEX or ASCII. Key Select: Select a valid key from keys 1-4. Note that you must enter the key content in the corresponding format selected. WPA-PSK/WPA2-PSK: There are 2 cipher types for WPA-PSK security mode: AES and TKIP+AES.

  • Page 54: Mac-Based Wireless Access Control

    ADSL2/2+ Router There are also 2 cipher types for WPA2-PSK security mode: AES and TKIP+AES. 4.4.3 MAC-based Wireless Access Control The MAC-based Wireless Access Control feature can be used to allow - 54 -...
  • Page 55 ADSL2/2+ Router or disallow clients at specific MAC addresses to connect to your wireless network. MAC Address Filter: Selecting “Disable” means to deactivate the MAC address filter feature. “Allow Access to Wireless Network” only allows PCs at specified MAC addresses to connect to your wireless network while “Deny Access to Wireless Network”...

  • Page 56: Wds

    ADSL2/2+ Router 2. Select “Allow Access to Wireless Network” and enable the MAC address filter feature as seen below: 4.3.4 WDS WDS (Wireless Distribution System) feature can be used to extend your existing wireless network coverage. - 56 -...
  • Page 57 ADSL2/2+ Router WDS Mode: Select Wireless AP or bridge mode. Bridge Control: Select Disable or Enable. Scan: Enable the Bridge Control feature and Click the Scan button; SSIDs and BSSIDs of wireless devices on same channel will be displayed. For example: To use the Scan button to display available networks, do as follows: 1.
  • Page 58 ADSL2/2+ Router 2. Click the “Scan” button. 3. If you want to connect to any wireless network, simply check the - 58 -...

  • Page 59: Connection Status

    ADSL2/2+ Router box next to such network and click “Connect”. And device will connect to it automatically. Note: 1. WDS feature can only be implemented between 2 wireless devices that both support the WDS feature. 2. SSID, channel, security settings and security key must be the same on both such devices.

  • Page 60: Advanced Applications

    ADSL2/2+ Router 4.5 Advanced Applications 4.5.1 System Mode 3 system modes are supported: Wireless ADSL Routing, Wireless ADSL Bridging and Wireless Routing. The default is Wireless ADSL Routing. Select Wireless ADSL Routing, if you want to connect to Internet via a telephone line and initiate a dialup on the device for Internet connection.
  • Page 61 ADSL2/2+ Router Ethernet cable. In Wireless ADSL Routing Mode: The DSL Port functions as an Internet port, through which an ADSL CPE initiates a dialup for an Internet connection that can be shared by multiple users. In Wireless ADSL Bridging Mode: The DSL port functions as an Internet port.

  • Page 62: Iptv

    ADSL2/2+ Router 4.5.2 IPTV The IPTV feature makes it possible to enjoy online videos on your TV set via a set-top box while surfing Internet. Note：The IPTV feature is only available in Wireless ADSL Routing mode and Wireless ADSL Bridging mode. Enable IPTV: Check/uncheck to enable/disable the IPTV feature.
  • Page 63 ADSL2/2+ Router o use the IPTV feature, do as follows: 1) If you want to connect your set-top box to the device using an Ethernet cable, do as follows: a). Connect your set-top box to LAN port 1 on the device. b).
  • Page 64 ADSL2/2+ Router e). Turn on your set-top box when the ADSL LED displays a solid light after reboot. f). When set-top box shows that it is successfully connected, you can start enjoying IPTV. 2) If you want to connect your set-top box to the device wirelessly, do as follows: a).
  • Page 65 ADSL2/2+ Router b) On IPTV interface, check the “Enable IPTV” box, select “Wireless” and specify an IPTV SSID (used by set-top box to connect to the device). c). Select WEP and enter a key. d). Save your settings and reboot the device. e).

  • Page 66: Bandwidth Control

    ADSL2/2+ Router light after reboot. f). On your set-top box management interface, select “Wireless”, enter the IPTV SSID and security key to connect to the device. 4.5.3 Bandwidth Control To better manage bandwidth allocation and optimize network performance, use the bandwidth control feature. Enable: Check/uncheck to enable/disable current bandwidth entry.

  • Page 67: Connection List

    ADSL2/2+ Router 4.5.4 Connection List This section displays info of clients that connect to your device. IP Address：Displays the IP address of a connected client. MAC Address：Displays the MAC address of a connected client. Medium Type: Displays "Wireless" or “Wired”, indicating whether corresponding client is connected to the device wirelessly or via an Ethernet cable.
  • Page 68 ADSL2/2+ Router However, a numeric address is inconvenient to remember; an address which changes unpredictably makes connection impossible. The DDNS provider allocates a static hostname to the user; whenever the user is allocated a new IP address this is communicated to the DDNS provider by software running on a computer or network device at that address;...

  • Page 69: Virtual Server

    ADSL2/2+ Router For example: If you have registered a DDNS service in dyndns.org and are assigned tenda, 123456, tenda.dyndns.info respectively as username, password and domain name for a web server on your PC at 192.168.1.10, then configure port forwarding settings under virtual server menu and enter this info on the DDNS interface.
  • Page 70 ADSL2/2+ Router on your LAN. It is useful for hosting online services such as FTP, Web, or game servers. For each Virtual Server, you define a WAN port on your router for redirection to an internal LAN IP Address and LAN port. External Internal Port: Enter the service ports.
  • Page 71 ADSL2/2+ Router LAN; however it is not convenient to transfer such large files. Then, you can set up your own PC as a FTP server and use the virtual server feature to let your friends access these files. Provided that the static IP address of the FTP server (Namely, your PC) is 192.168.1.10 and you want your friends to access this FTP server through default port 21 and using TCP protocol, then do as follows:...

  • Page 72: Dmz Host

    ADSL2/2+ Router Note: If you include port 80 on this section, you must set the port on remote (web-based) management section to a different number than 80, such as 8080, otherwise the virtual server feature may not take effect. 4.5.7 DMZ Host In some cases, we need to set a computer to be completely exposed extranet...

  • Page 73: Upnp

    ADSL2/2+ Router 2. Save your settings. 3. Assuming that the device WAN IP address is 183.37.227.201, then simply entering “http：//183.37.227.201” in web browsers will redirect Internet users to web server on the DMZ host. NOTE: Once a PC is set to a DMZ host, it will be completely exposed to extranet and becomes vulnerable to attacks.

  • Page 74: Security

    ADSL2/2+ Router Enable UPnP: Check/uncheck to enable/disable the UPnP feature. Note: UPnP works in Windows XP, Windows ME or later (NOTE: Operational system needs to be integrated with or installed with Directx 9.0) or in an environment with installed application software that supports UPnP.

  • Page 75: Mac Address Filter

    ADSL2/2+ Router 4.6.1 MAC Address Filter To better manage PCs in LAN, you can use the MAC Address Filter function to allow/disallow such PCs to access to Internet. Filter Mode: Select Deny or Allow according to your own needs. Deny Access To Internet: Disallow only PCs at specified MAC addresses to access Internet.
  • Page 76 ADSL2/2+ Router Day: select a day or several days for the corresponding entry to take effect. Enable: Check/uncheck to enable/disable the corresponding entry. Example1: To prevent a PC at the MAC address of 00:E0:4C:69:A4:10 from accessing Internet from 8:00 to18：00 on working days: Monday- Friday, config same settings on the screenshot below on your device: Example2: To allow a PC at the MAC address of...

  • Page 77: Client Filter

    ADSL2/2+ Router 4.6.2 Client Filter To better manage PCs in LAN, you can allow or disallow such PCs to access certain ports on Internet using the Client Filter functionality. - 77 -...
  • Page 78 ADSL2/2+ Router Filter Mode: Select Deny or Allow according to your own needs. Select: Select a number (indicating a filter rule) from the drop-down menu. Description: Enter a meaningful name to yourself for a new filter rule. Start /End IP Address: Enter a starting/ending IP address. Port: Enter TCP/UDP protocol port number (s);...
  • Page 79 ADSL2/2+ Router Example 2: To allow only the PC at an IP address of 192.168. 1.145 to access Internet from 8:00 to 18：00, do as follows: - 79 -...

  • Page 80: Url Filter

    ADSL2/2+ Router .6.3 URL Filter To better control LAN PCs, you can use the URL filter functionality to allow or disallow such PC to access certain websites within a specified time range. Filter Mode: Select Deny or Allow according to your own needs. Select: Select a number (indicating a filter rule) from the drop-down menu.

  • Page 81: Remote Web-Based Management

    ADSL2/2+ Router take effect. Enable: Check to enable or uncheck to disable the corresponding entry （allow/disallow matched packets to pass through device）. For example: If you want to disallow all computers on your LAN to access “yahoo.com” from 8：00 to 18：00 on working days: Monday- Friday, then do as follows: Note: Each entry can include up to 16 domain names, each of which must be seperated with a semicolon.
  • Page 82 ADSL2/2+ Router Enable: Check or uncheck to enable or disable the remote web-based management feature. Port: Enter a port number for remote web-based management. IP Address: Enter the IP address of a PC on Internet authorized to access and manage the device’s web-based utility remotely. For example: If you want to allow only a PC at the IP address of 218.88.93.33 to access your router’s web-based utility from Internet via port: 8080, then config same settings shown on the sreenshot on your...

  • Page 83: Tools

    ADSL2/2+ Router 4.7 Tools .1 Logs The syslog option allows you to view all events that occur upon system startup. - 83 -...

  • Page 84: Time

    ADSL2/2+ Router 4.7.2 Time This section assists you in setting the device’s system time; you can either select to set the time and date manually or automatically obtain the GMT time from Internet. By default, “Sync with Internet time servers” is enabled as seen below. - 84 -...

  • Page 85: Change Password/User Name

    ADSL2/2+ Router 4.7.3 Change Password/User Name This section allows you to change login password/user name for accessing device web manager. Both login password and user name are preset to “admin” by default. To change either, do as follows: 1. Click “Change Password” to enter the interface below: - 85 -...
  • Page 86 ADSL2/2+ Router 2. Enter your current user name and password in Old User Name and Old Password fields as seen below: 3. Enter a new user name and a new password in New User Name and New Password fields as seen below: - 86 -...
  • Page 87 ADSL2/2+ Router 4. Click "Save” and the login window displays: 5. Enter the new user name and password to relog in to W300D’s web manager. - 87 -...

  • Page 88: Backup

    ADSL2/2+ Router 4.7.4 Backup This section allows you to backup current settings. Once you have configured the device the way you want it, you can save these settings to a configuration file on your local hard drive that can later be imported to your device in case that the device is restored to factory default settings.

  • Page 89: Restore

    ADSL2/2+ Router And then，click the “Save” button on the appearing screen to store it under the selected path. 4.7.5 Restore This section allows you to restore previous settings configured on the device. - 89 -...
  • Page 90 ADSL2/2+ Router To restore previous settings, do as follows: 1. Click the "Browse" button to locate and select a configuration file that is saved previously to your local hard drive. 2. Click “Restore” to import previous settings and the device will reboot.

  • Page 91: Firmware Upgrade

    If you run into a problem with a specific feature of the device, log on to our website or www.tendacn.com）to download the latest firmware （www.tenda.cn to update your device. - 91 -...
  • Page 92 ADSL2/2+ Router Browse: Click it to select a downloaded firmware. Update: Click it to update your device firmware. The process takes about 2 minutes, device will reboot automatically after it completes. - 92 -...

  • Page 93: Restore To Factory Default Settings

    ADSL2/2+ Router 4.7.7 Restore to Factory Default Settings To restore all settings to the device's factory default values, click the " Default” button on the interface below and then the “OK” button on appearing dialogue box. Restoring factory defaults requires system reboot.

  • Page 94: A Ppendix 1

    ADSL2/2+ Router A ppendix 1 1. Config PC’s TCP/IP manually Select “Use the following IP address”, and enter: IP address: 192.168.1.xxx. (xxx ranges 2~254), Subnet mask: 255.255.255.0, Gateway: 192.168.1.1, DNS Server: You can enter your local DNS server address (consult your local ISP if you are not clear) or enter the device’s LAN IP, making it a DNS proxy.

  • Page 95: Initiate A Dialup On Pc

    ADSL2/2+ Router 2. Initiate a dialup on PC When working in Wireless ADSL Bridging Mode, the device connects to Internet via dial-up utility (the third party software). With integrated multiple VPI/VCI values, there is no need for any configurations and only an installed dial-up program is required Internet connection.
  • Page 96 ADSL2/2+ Router c). Select “Set up a new connection or network” as below: d). Click “Connect to the Internet” and click “Next” on the page below: - 96 -...
  • Page 97 ADSL2/2+ Router e). Select “Dialup” on the appearing page below: f). Enter User name and password provided by your ISP on the page below: g). And then click “Connect”. - 97 -...
  • Page 98 ADSL2/2+ Router h). If you see the screen below, it means you can access Internet now. - 98 -...

  • Page 99: Appendix 2

    ADSL2/2+ Router Appendix 2 1. Troubleshooting Trouble Troubleshooting Descripti ● Check whether power adapter is connected Power properly. ● Check whether the power adapter is the one LED does included with the device. (Use of a power adapter light with different rating than the included one may damage the device.) ●Check whether the Ethernet cable that connects the device and your PC is correctly connected.

  • Page 100: Verify Connectivity Between The Device And Your Pc

    ADSL2/2+ Router ● Make sure you are not confronting the above troubles. ● Make sure dial-up utility is installed and correctly Can’t configured. access ● Make sure the user name and password entered are correct. Internet ● If the dial-up is successful, make sure the IE proxy server is configured properly.
  • Page 101 ADSL2/2+ Router 3. If you get the following results, it indicates your PC has been successfully connected to the device. 4. If you get the following results, it indicates the connection between your PC and the device is not successfully established. Please reconfig - 101 -...

  • Page 102: Faqs

    ADSL2/2+ Router TCP/IP settings on your PC and ensure the Ethernet cable is correctly connected. 3. FAQs 1． Q: How do I know whether my ADSL connection is OK? A: With correct hardware connection and successful ADSL connection, the device’s “ADSL” LED displays a solid light. Otherwise it displays a flashing light which indicates connection failure, either physically or logically.
  • Page 103 A: Check connectivity between your PC, device and Internet. Contact your ISP to see whether your Internet service is still available.If problem exists in the device, contact Tenda technical support for help. 6. Q: I’m an ADSL user, but sometimes I cannot access the Internet, why? A: ADSL utilizes frequencies that are not used by a voice telephone call.
  • Page 104 ADSL2/2+ Router upgrades the network to ADSL2+ one day. Plus, there is almost no difference in the prices between an ADSL2+ modem and an ADSL2 modem. 8. Q: What is VPI/VCI? A: VPI is short for Virtual Path Identifier and VCI is short for Virtual Channel Identifier.
  • Page 105 ADSL2/2+ Router will adversely affect wireless signal range. 3. Electronic Interference: Wireless network devices commonly use the 2.4 GHz radio wave frequency to transmit and receive data. When other nearby electronic devices such as cell phones, radio transmitters and microwaves emit this frequency, they interfere with the network's signal transmission.

  • Page 106: Appendix 3 Emc Statement

    ADSL2/2+ Router Appendix 3 EMC Statement CE Mark Warning This is a Class B product In a domestic environment,this product may cause radio interference,in which case the user may be required to take adequate measures.This device complies with EU 1999/5/EC. NOTE:(1)The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment.(2) To avoid unnecessary radiation interference, it is recommended to use a shielded...
  • Page 107 ADSL2/2+ Router interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 108: Radiation Exposure Statement

    ADSL2/2+ Router FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment.

  • Page 109: Contact Information

    Toll Free: 1-800-570-5892 (For USA only) Tel: +86 (755) 2344 2820 Email: support@tenda.com.cn Headquarter Shenzhen: Add:Tenda Industrial Zone,No.34-1 Shilong Road,Shiyan Town,Baoan District,Shenzhen,China. 518108 Tel: (86)755-27657180 Fax: (86)755-27657178 Email: sales@tenda.com.cn Technical Support: support@tenda.com.cn Or visit our website at: http://www.tenda.cn - 109 -...
