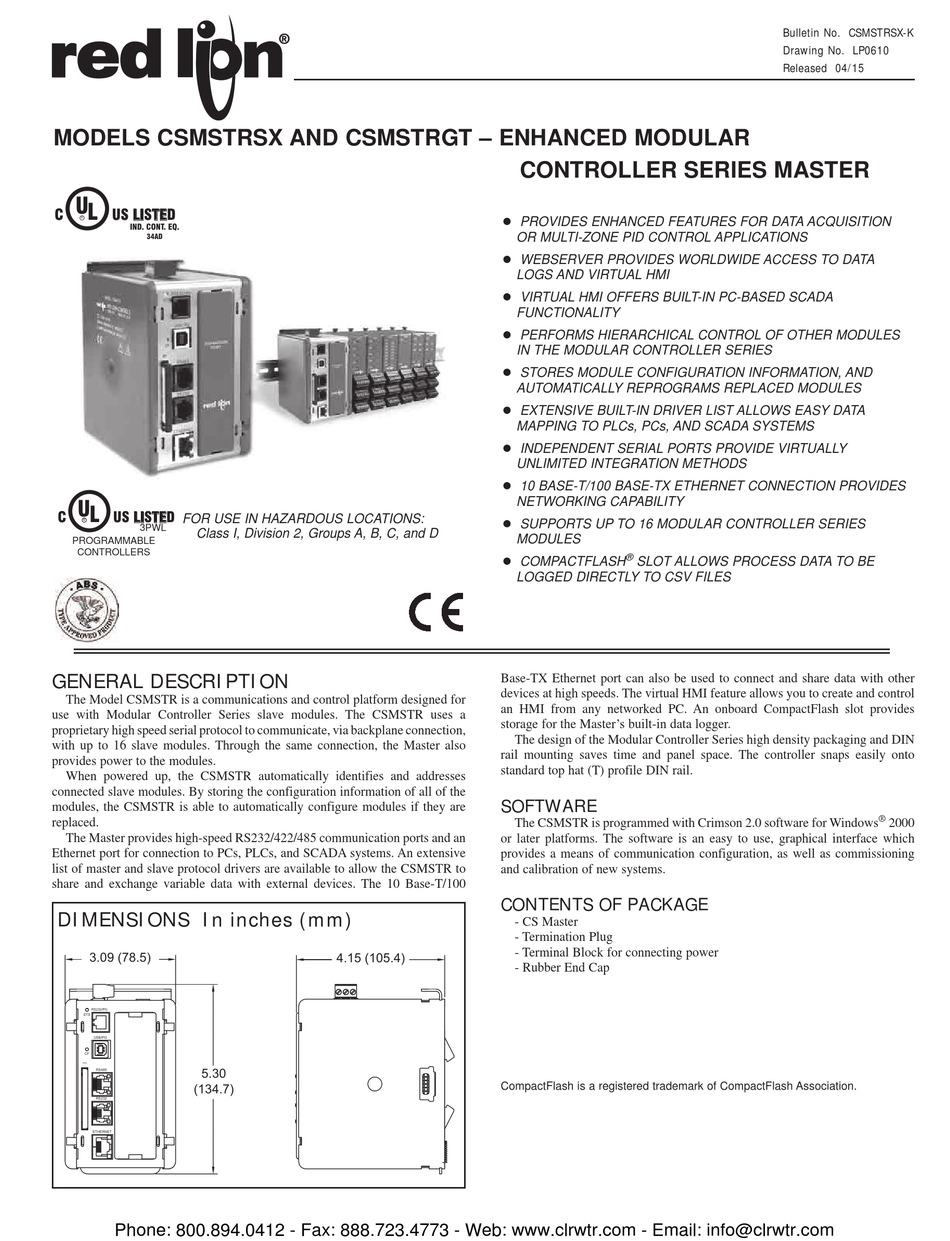

MODELS CSMSTRSX AND CSMSTRGT – ENHANCED MODULAR
U L
C US LISTED
R
IND. CONT. EQ.
34AD
U L
C US LISTED
FOR USE IN HAZARDOUS LOCATIONS:
R
3PWL
Class I, Division 2, Groups A, B, C, and D
PROGRAMMABLE
CONTROLLERS
GENERAL DESCRIPTION
The Model CSMSTR is a communications and control platform designed for
use with Modular Controller Series slave modules. The CSMSTR uses a
proprietary high speed serial protocol to communicate, via backplane connection,
with up to 16 slave modules. Through the same connection, the Master also
provides power to the modules.
When powered up, the CSMSTR automatically identifies and addresses
connected slave modules. By storing the configuration information of all of the
modules, the CSMSTR is able to automatically configure modules if they are
replaced.
The Master provides high-speed RS232/422/485 communication ports and an
Ethernet port for connection to PCs, PLCs, and SCADA systems. An extensive
list of master and slave protocol drivers are available to allow the CSMSTR to
share and exchange variable data with external devices. The 10 Base-T/100
DIMENSIONS In inches (mm)
3.09 (78.5)
RS232/PG
STS
USB/PG
CF
5.30
RS485
(134.7)
RS232
ETHERNET
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
 PROVIDES ENHANCED FEATURES FOR DATA ACQUISITION
OR MULTI-ZONE PID CONTROL APPLICATIONS
 WEBSERVER PROVIDES WORLDWIDE ACCESS TO DATA
LOGS AND VIRTUAL HMI
 VIRTUAL HMI OFFERS BUILT-IN PC-BASED SCADA
FUNCTIONALITY
 PERFORMS HIERARCHICAL CONTROL OF OTHER MODULES
IN THE MODULAR CONTROLLER SERIES
 STORES MODULE CONFIGURATION INFORMATION, AND
AUTOMATICALLY REPROGRAMS REPLACED MODULES
 EXTENSIVE BUILT-IN DRIVER LIST ALLOWS EASY DATA
MAPPING TO PLCs, PCs, AND SCADA SYSTEMS
 INDEPENDENT SERIAL PORTS PROVIDE VIRTUALLY
UNLIMITED INTEGRATION METHODS
 10 BASE-T/100 BASE-TX ETHERNET CONNECTION PROVIDES
NETWORKING CAPABILITY
 SUPPORTS UP TO 16 MODULAR CONTROLLER SERIES
MODULES
 COMPACTFLASH
LOGGED DIRECTLY TO CSV FILES
Base-TX Ethernet port can also be used to connect and share data with other
devices at high speeds. The virtual HMI feature allows you to create and control
an HMI from any networked PC. An onboard CompactFlash slot provides
storage for the Master's built-in data logger.
The design of the Modular Controller Series high density packaging and DIN
rail mounting saves time and panel space. The controller snaps easily onto
standard top hat (T) profile DIN rail.
SOFTWARE
The CSMSTR is programmed with Crimson 2.0 software for Windows
or later platforms. The software is an easy to use, graphical interface which
provides a means of communication configuration, as well as commissioning
and calibration of new systems.
CONTENTS OF PACKAGE
- CS Master
- Termination Plug
- Terminal Block for connecting power
4.15 (105.4)
- Rubber End Cap
CompactFlash is a registered trademark of CompactFlash Association.
CONTROLLER SERIES MASTER
®
SLOT ALLOWS PROCESS DATA TO BE
Bulletin No. CSMSTRSX-K
Drawing No. LP0610
Released 04/15
®
