MODELS CSMSTRLE – ENHANCED MODULAR CONTROLLER SERIES MASTER
U L
C C US LISTED US LISTED
R
IND. CONT. EQ.
34AD
U L
C C US LISTED US LISTED
FOR USE IN HAZARDOUS LOCATIONS:
R
3PWL
Class I, Division 2, Groups A, B, C, and D
PROGRAMMABLE
CONTROLLERS
GENERAL DESCRIPTION

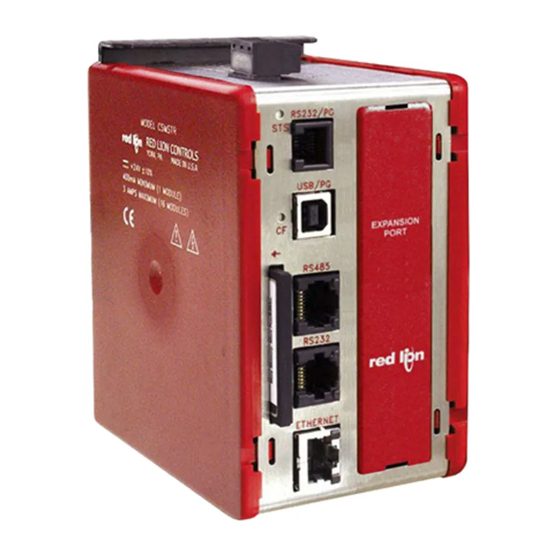

The Model CSMSTRLE is a communications and control platform designed
for use with Modular Controller Series slave modules. The CSMSTR uses a
proprietary high speed serial protocol to communicate, via backplane connection,
with up to 16 slave modules. Through the same connection, the Master also
provides power to the modules.
When powered up, the CSMSTR automatically identifies and addresses
connected slave modules. By storing the configuration information of all of the
modules, the CSMSTR is able to automatically configure modules if they are
replaced.
The Master provides high-speed RS232/422/485 communication ports and an
Ethernet port for connection to PCs, PLCs, and SCADA systems. An extensive
list of master and slave protocol drivers are available to allow the CSMSTR to
share and exchange variable data with external devices. The 10 Base-T/100
Base-TX Ethernet port can also be used to connect and share data with other
devices at high speeds.
The design of the Modular Controller Series high density packaging and DIN
rail mounting saves time and panel space. The controller snaps easily onto
standard top hat (T) profile DIN rail.
DIMENSIONS In inches (mm)
3.09 (78.5)
RS232/PG
STS
USB/PG
CF
RS485 5.30
(134.7)
RS232
ETHERNET
 ADDS MULTIPLE PROTOCOL CONVERSION FUNCTIONALITY
 PERFORMS HIERARCHICAL CONTROL OF OTHER MODULES
 STORES MODULE CONFIGURATION INFORMATION, AND
 EXTENSIVE BUILT-IN DRIVER LIST ALLOWS EASY DATA
 INDEPENDENT SERIAL PORTS PROVIDE VIRTUALLY
 10 BASE-T/100 BASE-TX ETHERNET CONNECTION PROVIDES
 SUPPORTS UP TO 16 MODULAR CONTROLLER SERIES
 SUPPORTS UP TO NINE PROTOCOLS
SOFTWARE
2000 or later platforms. The software is an easy to use, graphical interface which
provides a means of communication configuration, as well as commissioning
and calibration of new systems.
CONTENTS OF PACKAGE
SAFETY SUMMARY
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
actuators not equipped with safeguards. To do so can be potentially harmful to
persons or equipment in the event of a fault to the controller. An independent
and redundant temperature limit indicator with alarm outputs is strongly
recommended.
4.15 (105.4)
CompactFlash is a registered trademark of CompactFlash Association.
1
TO DATA ACQUISITION AND MULTI-ZONE PID CONTROL
APPLICATIONS
IN THE MODULAR CONTROLLER SERIES
AUTOMATICALLY REPROGRAMS REPLACED MODULES
MAPPING TO PLCs, PCs, AND SCADA SYSTEMS
UNLIMITED INTEGRATION METHODS
NETWORKING CAPABILITY
MODULES
SIMULTANEOUSLY(with expansion card)
The CSMSTR is programmed with Crimson
- CS Master
- Termination Plug
- Terminal Block for connecting power.
- Rubber End Cap
All safety related regulations, local codes and instructions that appear in the
Do not use the controller to directly command motors, valves, or other
Read complete instructions prior to installation
WARNING - EXPLOSION HAZARD - SUBSTITUTION OF
COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I,
DIVISION 2
THIS EQUIPMENT IS SUITABLE FOR USE IN CLASS I,
DIVISION 2, GROUPS A, B, C, D, OR NON-HAZARDOUS
LOCATIONS ONLY
Bulletin No. CSMSTRLE-E
Drawing No. LP0672
Released 09/12
®
2.0 software for Windows
CAUTION: Risk of Danger.
and operation of the unit.
®
