red lion CSMSTRV2V2 Bulletin

Inside US: +1 (877) 432-9908
Outside US: +1 (717) 767-6511
www.redlion.net

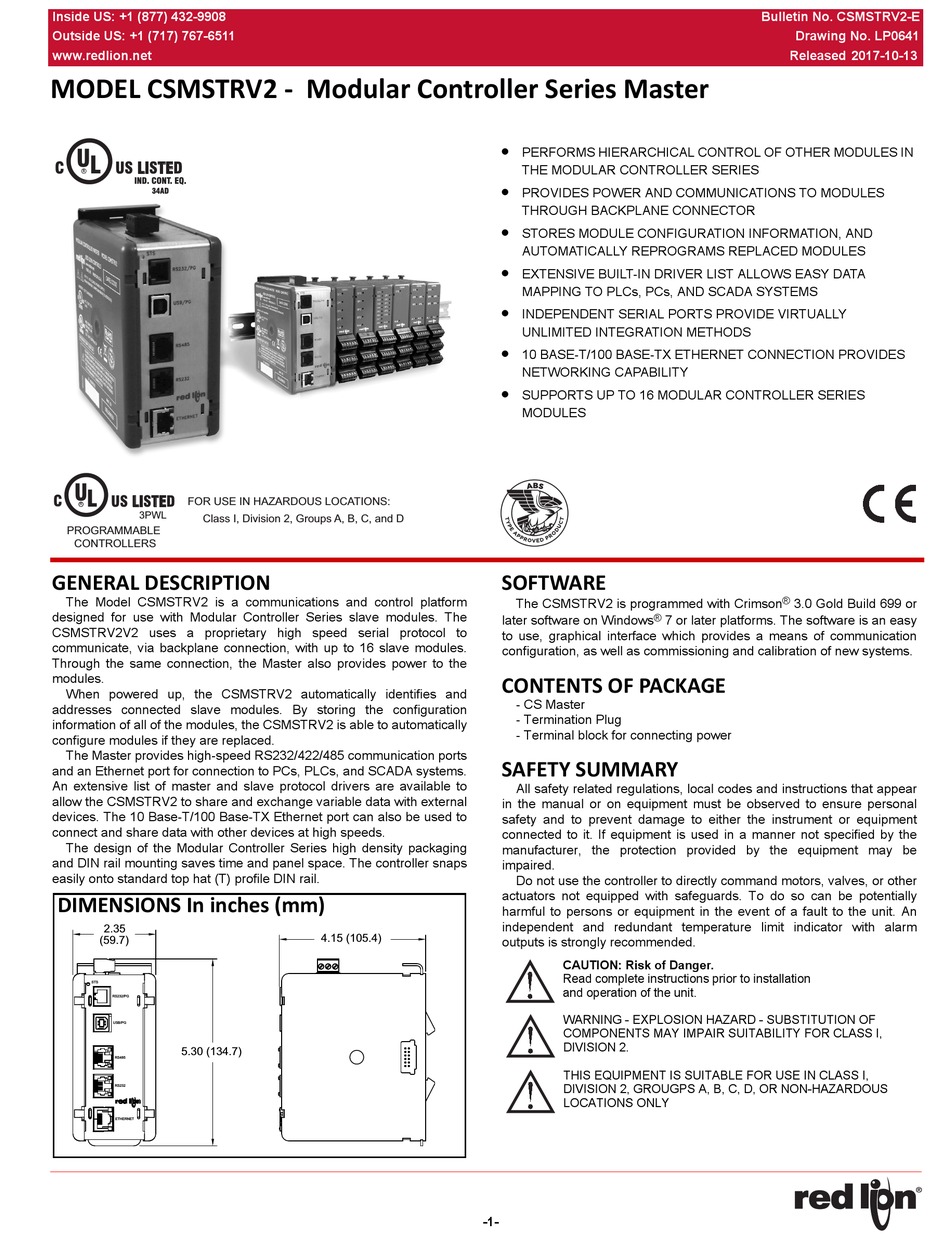

MODEL CSMSTRV2 ‐ Modular Controller Series Master
U L
C US LISTED
IND. CONT. EQ.
34AD
U L
C US LISTED
FOR USE IN HAZARDOUS LOCATIONS:
3PWL
Class I, Division 2, Groups A, B, C, and D
PROGRAMMABLE
CONTROLLERS
GENERAL DESCRIPTION

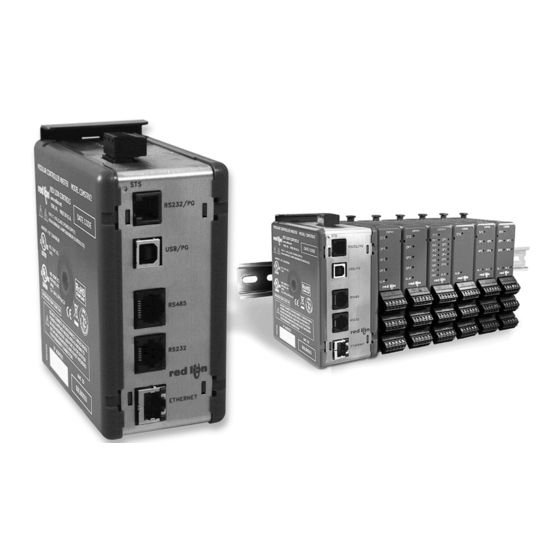

The Model CSMSTRV2 is a communications and control platform
designed for use with Modular Controller Series slave modules. The
CSMSTRV2V2 uses a proprietary high speed serial protocol to
communicate, via backplane connection, with up to 16 slave modules.
Through the same connection, the Master also provides power to the
modules.
When powered up, the CSMSTRV2 automatically identifies and
addresses connected slave modules. By storing the configuration
information of all of the modules, the CSMSTRV2 is able to automatically
configure modules if they are replaced.
The Master provides high-speed RS232/422/485 communication ports
and an Ethernet port for connection to PCs, PLCs, and SCADA systems.
An extensive list of master and slave protocol drivers are available to
allow the CSMSTRV2 to share and exchange variable data with external
devices. The 10 Base-T/100 Base-TX Ethernet port can also be used to
connect and share data with other devices at high speeds.
The design of the Modular Controller Series high density packaging
and DIN rail mounting saves time and panel space. The controller snaps
easily onto standard top hat (T) profile DIN rail.
DIMENSIONS In inches (mm)
2.35
(59.7)
STS
RS232/PG
USB/PG
5.30 (134.7)
RS485
RS232
ETHERNET
•
•
•
•
•
•
•
4.15 (105.4)
-1-
PERFORMS HIERARCHICAL CONTROL OF OTHER MODULES IN
THE MODULAR CONTROLLER SERIES
PROVIDES POWER AND COMMUNICATIONS TO MODULES
THROUGH BACKPLANE CONNECTOR
STORES MODULE CONFIGURATION INFORMATION, AND
AUTOMATICALLY REPROGRAMS REPLACED MODULES
EXTENSIVE BUILT-IN DRIVER LIST ALLOWS EASY DATA
MAPPING TO PLCs, PCs, AND SCADA SYSTEMS
INDEPENDENT SERIAL PORTS PROVIDE VIRTUALLY
UNLIMITED INTEGRATION METHODS
10 BASE-T/100 BASE-TX ETHERNET CONNECTION PROVIDES
NETWORKING CAPABILITY
SUPPORTS UP TO 16 MODULAR CONTROLLER SERIES
MODULES

SOFTWARE

The CSMSTRV2 is programmed with Crimson
®
later software on Windows 7 or later platforms. The software is an easy
to use, graphical interface which provides a means of communication
configuration, as well as commissioning and calibration of new systems.
CONTENTS OF PACKAGE
- CS Master
- Termination Plug
- Terminal block for connecting power
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear
in the manual or on equipment must be observed to ensure personal
safety and to prevent damage to either the instrument or equipment
connected to it. If equipment is used in a manner not specified by the
manufacturer, the protection provided by the equipment may be
impaired.
Do not use the controller to directly command motors, valves, or other
actuators not equipped with safeguards. To do so can be potentially
harmful to persons or equipment in the event of a fault to the unit. An
independent and redundant temperature limit indicator with alarm
outputs is strongly recommended.
WARNING - EXPLOSION HAZARD - DO NOT D CAUTION: Risk of Danger.
Read complete instructions prior to installation EQUIPMENT UNLESS POWER HAS BEEN SW
and operation of the unit. OR AREA IS KNOWN TO BE NON-HAZARDOU
WARNING - EXPLOSION HAZARD - SUBSTITUTION OF
COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I,
DIVISION 2.
THIS EQUIPMENT IS SUITABLE FOR USE IN CLASS I,
DIVISION 2, GROUGPS A, B, C, D, OR NON-HAZARDOUS
LOCATIONS ONLY
Bulletin No. CSMSTRV2-E
Drawing No. LP0641
Released 2017-10-13
®
3.0 Gold Build 699 or
