4.4 Simplicity Connector

The Simplicity Connector featured on the Starter Kit enables advanced debugging features such as the AEM and the Virtual COM port
to be used towards an external target. The pinout is illustrated in the figure below.
The signal names in the figure and the pin description table are referenced from the board controller. This means that VCOM_TX
should be connected to the RX pin on the external target, VCOM_RX to the target's TX pin, VCOM_CTS to the target's RTS pin and
VCOM_RTS to the target's CTS pin.
Note: Current drawn from the VMCU voltage pin is included in the AEM measurements, while the 3V3 and 5V voltage pins are not. To
monitor the current consumption of an external target with the AEM, put the on-board MCU in its lowest energy mode to minimize its
impact on the measurements.
Pin number(s) Function
1 VMCU
3 3V3
5 5V
2 VCOM_TX
4 VCOM_RX
6 VCOM_CTS
8 VCOM_RTS
17 EXT_ID_SCL
19 EXT_ID_SDA
10, 12, 14, 16, 18, 20 NC
7, 9, 11, 13, 15 GND
silabs.com | Building a more connected world.
VMCU
1
3V3 3
5V 5
GND 7
GND 9
GND 11
GND 13
GND 15
Board ID SCL 17
Board ID SDA 19

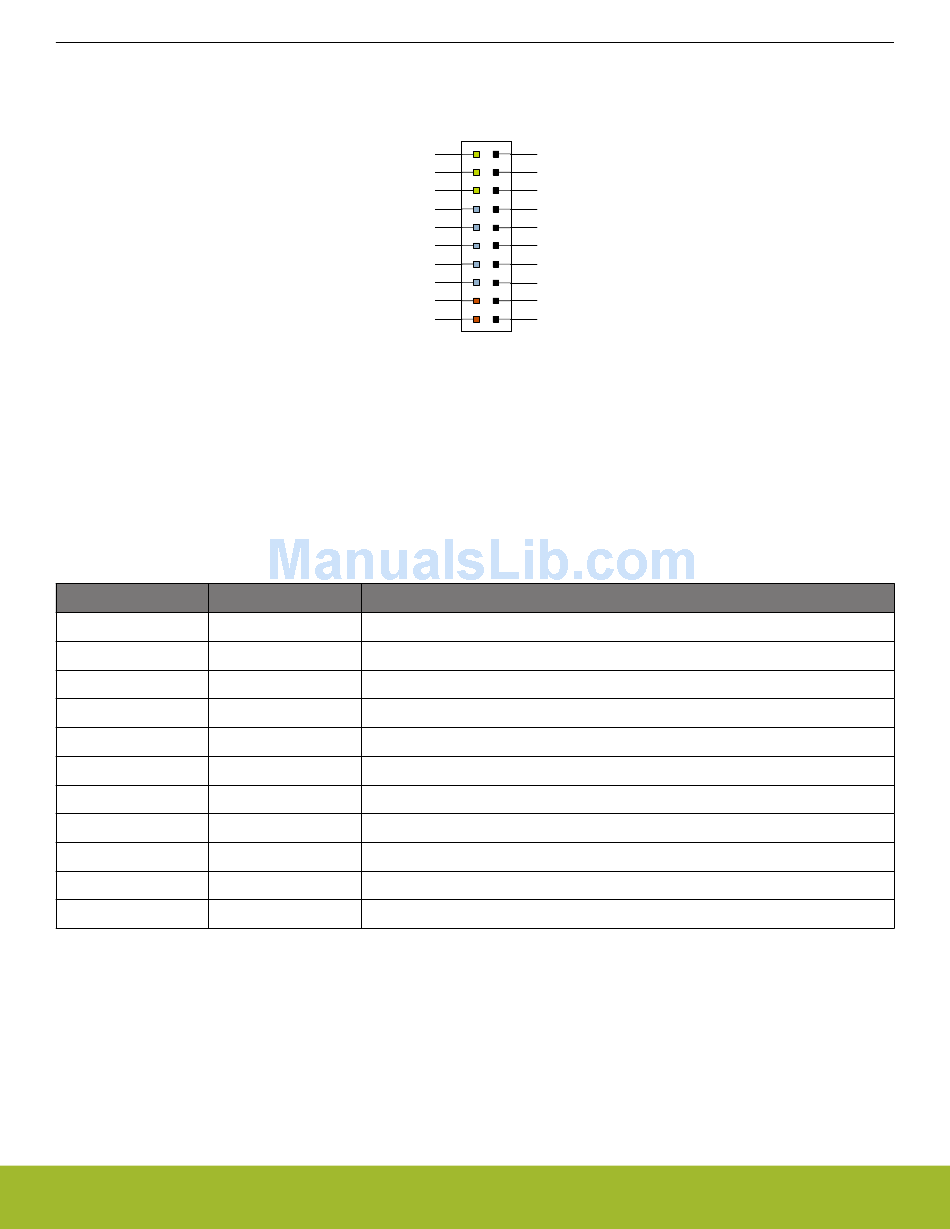

Figure 4.4. Simplicity Connector
Table 4.5. Simplicity Connector Pin Descriptions
Description
3.3 V power rail, monitored by the AEM
3.3 V power rail
5 V power rail
Virtual COM Tx
Virtual COM Rx
Virtual COM CTS
Virtual COM RTS
Board ID SCL
Board ID SDA
Not connected
Ground
UG287: EFM32 Giant Gecko GG11 Starter Kit User's Guide
2 Virtual COM TX
4
Virtual COM RX
6 Virtual COM CTS
8 Virtual COM RTS
10 NC
12 NC
14 NC
16 NC
18 NC
20 NC
Connectors
Rev. 1.10 | 12
