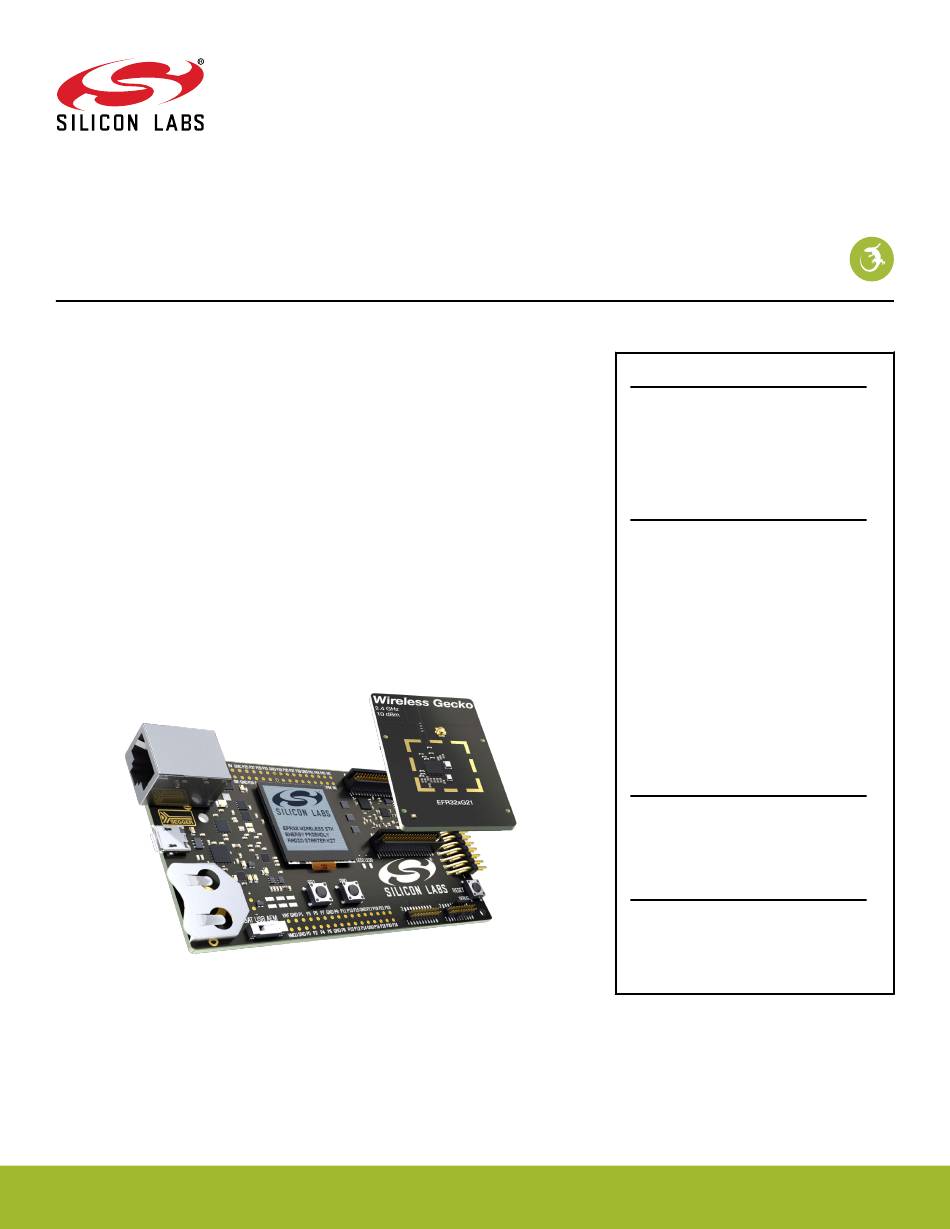

UG429: EFR32xG21 2.4 GHz 10 dBm
Wireless Starter Kit User's Guide

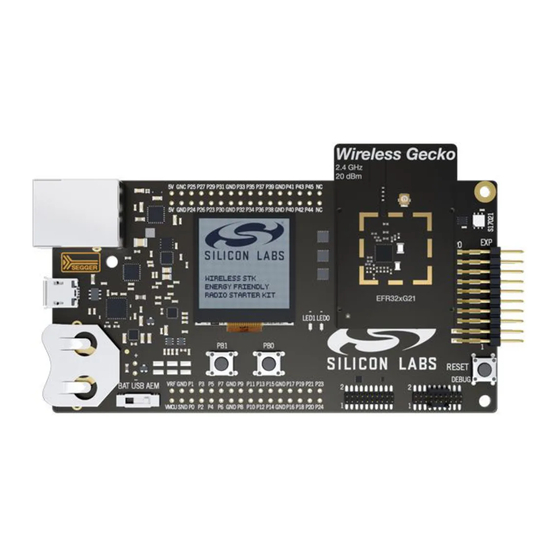

A Wireless Starter Kit with the BRD4181B Radio Board is an ex-
cellent starting point to get familiar with the EFR32™ Wireless
Gecko Wireless System-on-Chip. It also provides all necessary
tools for developing a Silicon Labs wireless application.
BRD4181B is a plug-in board for the Wireless Starter Kit Mainboard. It is a complete ref-
erence design for the EFR32xG21 Wireless SoC, with matching network and a PCB an-
tenna for 10 dBm output power in the 2.4 GHz band.
The Wireless Starter Kit Mainboard contains an on-board J-Link debugger with a Packet
Trace Interface and a Virtual COM port, enabling application development and debug-
ging of the attached radio board as well as external hardware. The mainboard also con-
tains sensors and peripherals for easy demonstration of some of the EFR32's many ca-
pabilities.
This document describes how to use the BRD4181B Radio Board together with a Wire-
less Starter Kit Mainboard.
silabs.com | Building a more connected world.
BRD4181B RADIO BOARD FEATURES
• EFR32xG21 Wireless Gecko Wireless
SoC with 1024 kB Flash and 96 kB RAM
(EFR32MG21A010F1024IM32).
• Inverted-F PCB antenna (2.4 GHz band)
• 2x user color LEDs (red and green)
WIRELESS STK MAINBOARD FEATURES
• Advanced Energy Monitor
• Packet Trace Interface
• Virtual COM port
• SEGGER J-Link on-board debugger
• External device debugging
• Ethernet and USB connectivity
• Low power 128x128 pixel Memory LCD-
TFT
• User LEDs / pushbuttons
• 20-pin 2.54 mm EXP header
• Breakout pads for Wireless SoC I/O
• CR2032 coin cell battery support
SOFTWARE SUPPORT
• Simplicity Studio™
• Energy Profiler
• Network Analyzer
ORDERING INFORMATION
• SLWSTK6006A
• SLWSTK6023A
• SLWRB4181B
Rev. 1.0
