1. Overview
The Silicon Laboratories Si4311-DEMO board provides a complete FSK radio design with numerous selectable
features that demonstrate the capabilities of the Silicon Laboratories Si4311 FSK receiver. The Si4311-DEMO
board can be configured to receive FSK data from an SMA connector or wirelessly with an onboard printed circuit
board (PCB) antenna. The demodulated output data from the Si4311-DEMO board can be measured via an SMA
connector and/or observed with an LED and/or heard with an audio buzzer. The system is powered by a 9 V
battery or an external 3.3 V power supply.
2. Features
Single chip FSK receiver
Selectable 315/433.92 MHz carrier frequency
Selectable data rate, frequency deviation
3. Description

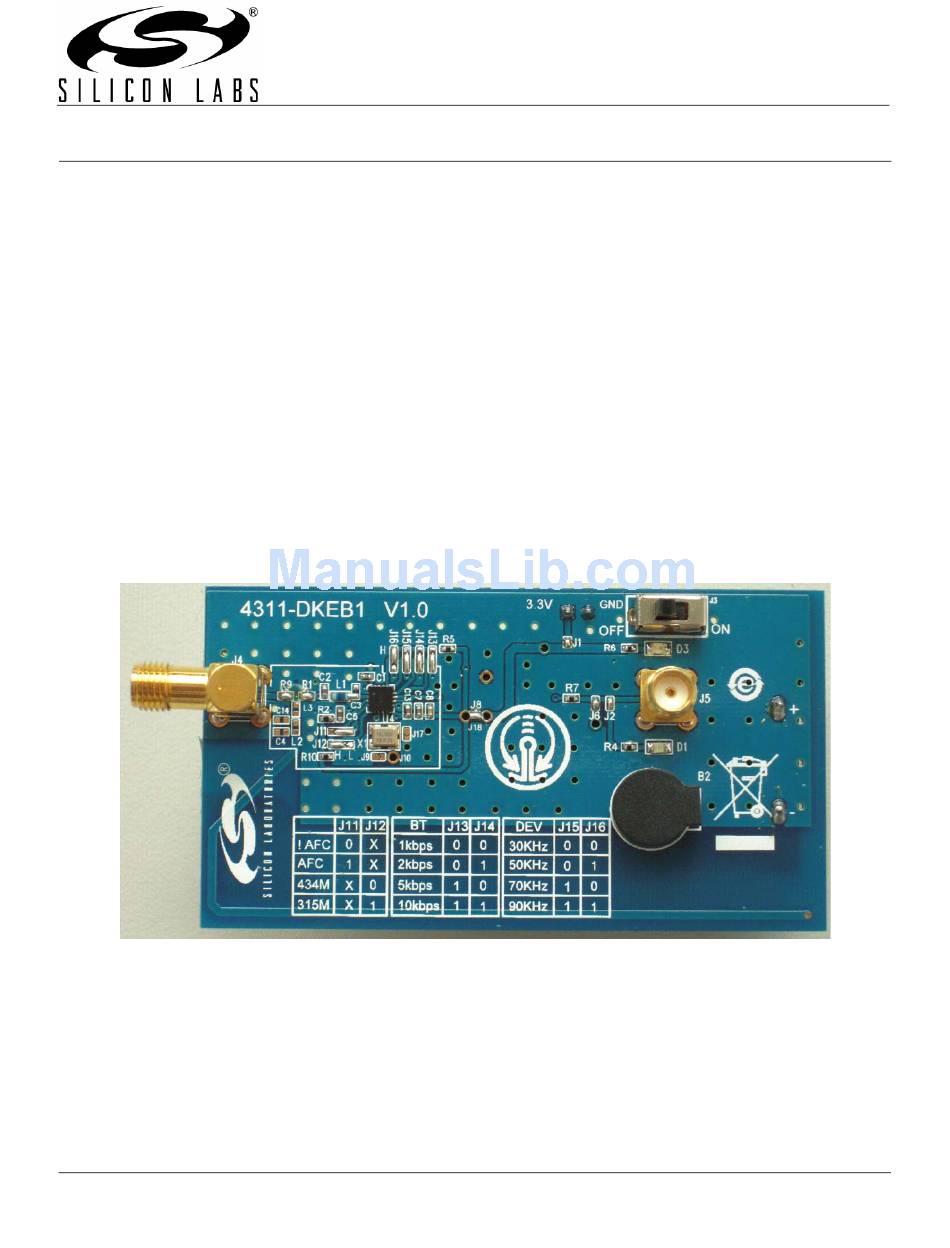

Figures 1 and 2 show the physical layout of the board with key components indicated.
Rev. 0.3 9/09
B
U
OAR D
SER
Figure 1. Si4311 DEMO Board Top Side
Copyright © 2009 by Silicon Laboratories
S i 4 3 11 - D B
'
G
S
UIDE
Si4311-DB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Si4311-DB and is the answer not in the manual?

Questions and answers

Summary of Contents for Silicon Laboratories Si4311-DB

  • Page 1 UIDE 1. Overview The Silicon Laboratories Si4311-DEMO board provides a complete FSK radio design with numerous selectable features that demonstrate the capabilities of the Silicon Laboratories Si4311 FSK receiver. The Si4311-DEMO board can be configured to receive FSK data from an SMA connector or wirelessly with an onboard printed circuit board (PCB) antenna.
  • Page 2 Si 43 11- DB Figure 2. Si4311 DEMO Board Bottom Side with 9 V Battery Power Supply Connector J1: Jumper to select external 3.3 V supply. This is a solderable jumper and should be shorted when used. J7: External 3.3 V supply connector: +3.3 V with the jumper on the right side and GND on the left side. J3: 9 V battery supply connector: Power on with the jumper on the right side and power off with the jumper on the left side.
  • Page 3 Si4311-DB Bit Time Selection J13/J14: Two jumpers used for bit time selection. Table 1. Bit Time Selection Bit Time [µs] 1000 Frequency Deviation Selection J15/J16: Two jumpers used for frequency deviation selection. Table 2. Frequency Deviation Selection Frequency Deviation [kHz] Key Components U4: Si4311 single chip FSK receiver.
  • Page 4 Si 43 11- DB 4. Schematic Figure 3. Si4311-DEMO Schematic Rev. 0.3...
  • Page 5: Pcb Layout

    Si4311-DB 5. PCB Layout Figure 4. Si4311 PCB Top Layer Figure 5. Si4311 PCB Bottom Layer Rev. 0.3...
  • Page 6 Si 43 11- DB Figure 6. Si4311 PCB Top Silkscreen Figure 7. Si4311 PCB Bottom Silkscreen Rev. 0.3...
  • Page 7: Bill Of Materials

    Si4311-DB 6. Bill of Materials Reference Package Value AA_BATTERY 9.0 V BUZZER2 C1,C7 CMS0402 22 nF CMS0603 15 pF C3,C4 CMS0603 C5,C9 CMS0402 1 µF CMS0402 CMS0402 0.1 µF CMS0402 10 nF CMS0603 2.2 µF CMS0402 220 pF CMS0603 D1,D3...
  • Page 8: Receiving Data Status

    Si 43 11- DB 7. Receiving Data Status 8. References  Si4311 Data Sheet Rev. 0.3...
  • Page 9 Si4311-DB OTES Rev. 0.3...
  • Page 10: Contact Information
