3.6 Simplicity Connector

The Simplicity Connector enables the advanced debugging features, such as the AEM, the virtual COM port, and the Packet Trace
Interface, to be used towards an external target. The pinout is illustrated in the figure below.
Note: Current drawn from the VMCU voltage pin is included in the AEM measurements, while the 3V3 and 5V voltage pins are not.
When monitoring the current consumption of an external target with the AEM, unplug the radio board from the Wireless STK Mainboard
to avoid adding the radio board current consumption to the measurements.
Pin Number(s)
1
3
5
2
4
6
8
10
12
14
16
18
20
17 BOARD_ID_SCL
19 BOARD_ID_SDA
7, 9, 11, 13, 15
silabs.com | Building a more connected world.
VMCU
3V3
5V
GND
GND
GND
GND
GND
BOARD_ID_SCL
BOARD_ID_SDA

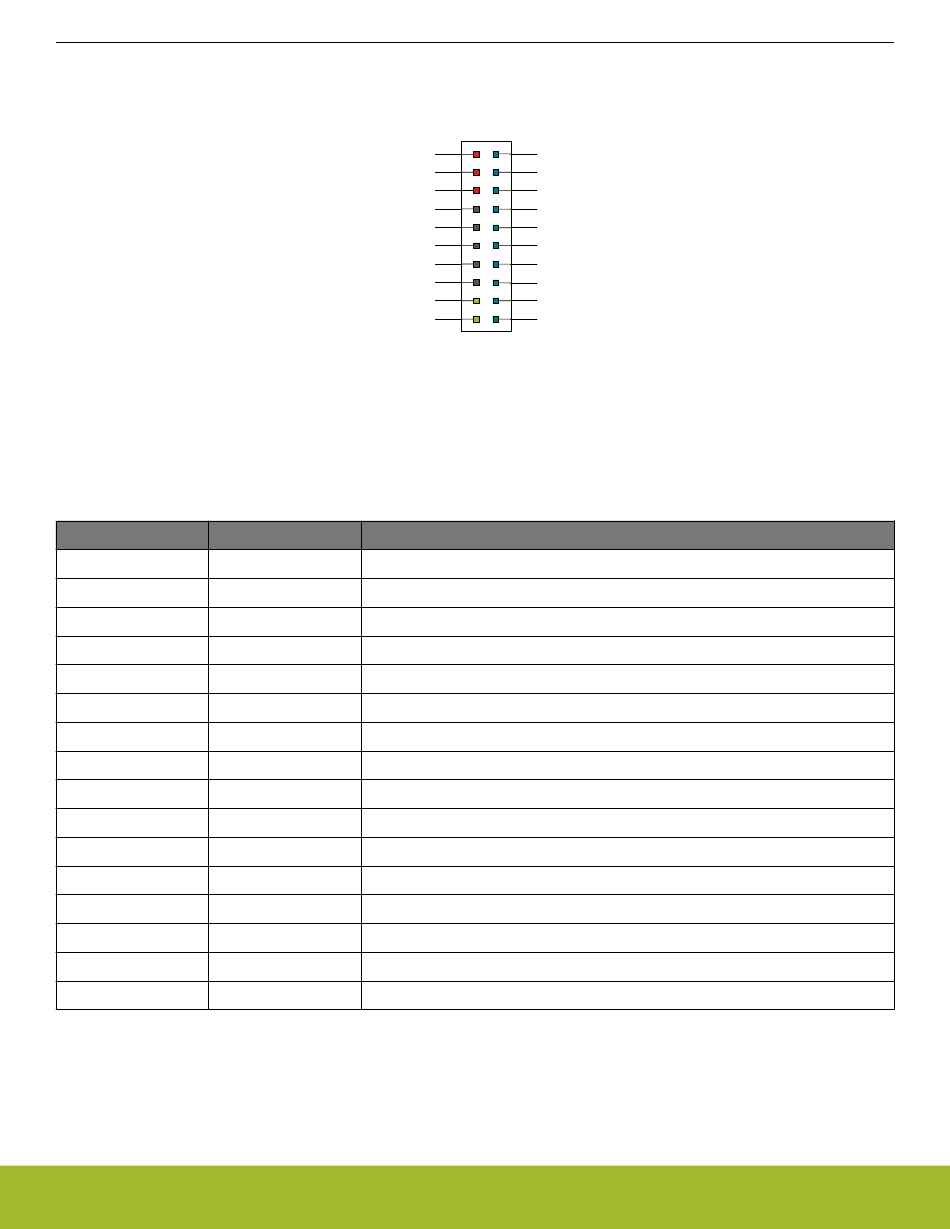

Figure 3.5. Simplicity Connector
Table 3.3. Simplicity Connector Pin Descriptions
Function Description
VMCU 3.3 V power rail, monitored by the AEM
3V3 3.3 V power rail
5V 5 V power rail
VCOM_TX Virtual COM Tx
VCOM_RX Virtual COM Rx
VCOM_CTS Virtual COM CTS
VCOM_RTS Virtual COM RTS
PTI0_SYNC Packet Trace 0 Sync
PTI0_DATA Packet Trace 0 Data
PTI0_CLK Packet Trace 0 Clock
PTI1_SYNC Packet Trace 1 Sync
PTI1_DATA Packet Trace 1 Data
PTI1_CLK Packet Trace 1 Clock
Board ID SCL
Board ID SDA
GND Ground
UG461: MGM220P Wireless Gecko Module Starter Kit User's Guide
2 VCOM_TX
1
4
3 VCOM_RX
5 6 VCOM_CTS
7 VCOM_RTS
8
PTI0_SYNC
9 10
11 12 PTI0_DATA
13 14 PTI0_CLK
PTI1_SYNC
15 16
17 18 PTI1_DATA
19 20 PTI1_CLK
Connectors
