6.11 10/100Base-TX Ethernet
The EFM32 Giant Gecko GG11 features an ethernet MAC peripheral (ETH) supporting 10 and 100 Mbit/s transfer speeds. The
SLSTK3701A provides the hardware required to communicate with other ethernet devices using standard twisted pair cables, including
a Microchip KSZ8091-RNDCA PHY transceiver, magnetics and an RJ-45 ethernet jack.
Note: due to the power supply requirements of the PHY transceiver, it is not possible to utilize ethernet connectivity while powering the
kit from a CR2032 lithium battery. Refer to the KSZ8091-RNDCA datasheet for detailed electrical specifications including current con-
sumption in different scenarios.
PI10 (GPIO)
PH7 (GPIO)
PD14 (ETH_MDC #1)
PD13 (ETH_MDIO #1)
PD10 (CMU_CLK2 #5)
PF8 (ETH_RMIITXEN #1)
PF7 (ETH_RMIITXD0 #1)
PF6 (ETH_RMIITXD1 #1)
PD12 (ETH_RMIIRXER #1)
PD11 (ETH_RMIICRSDV #1)
PD9 (ETH_RMIIRXD0 #1)
PF9 (ETH_RMIIRXD1 #1)
PG15 (GPIO)
EFM32
silabs.com | Building a more connected world.
VMCU
ETH_PWR_ENABLE
ETH_RESET
ETH_MDC
ETH_MDIO
ETH_RMII_REFCLK
ETH_RMII_TX_EN
ETH_RMII_TXD0
ETH_RMII_TXD1
ETH_RMII_RX_ER
ETH_RMII_CRS_DV
ETH_RMII_RXD0
ETH_RMII_RXD1
ETH_INTERRUPT

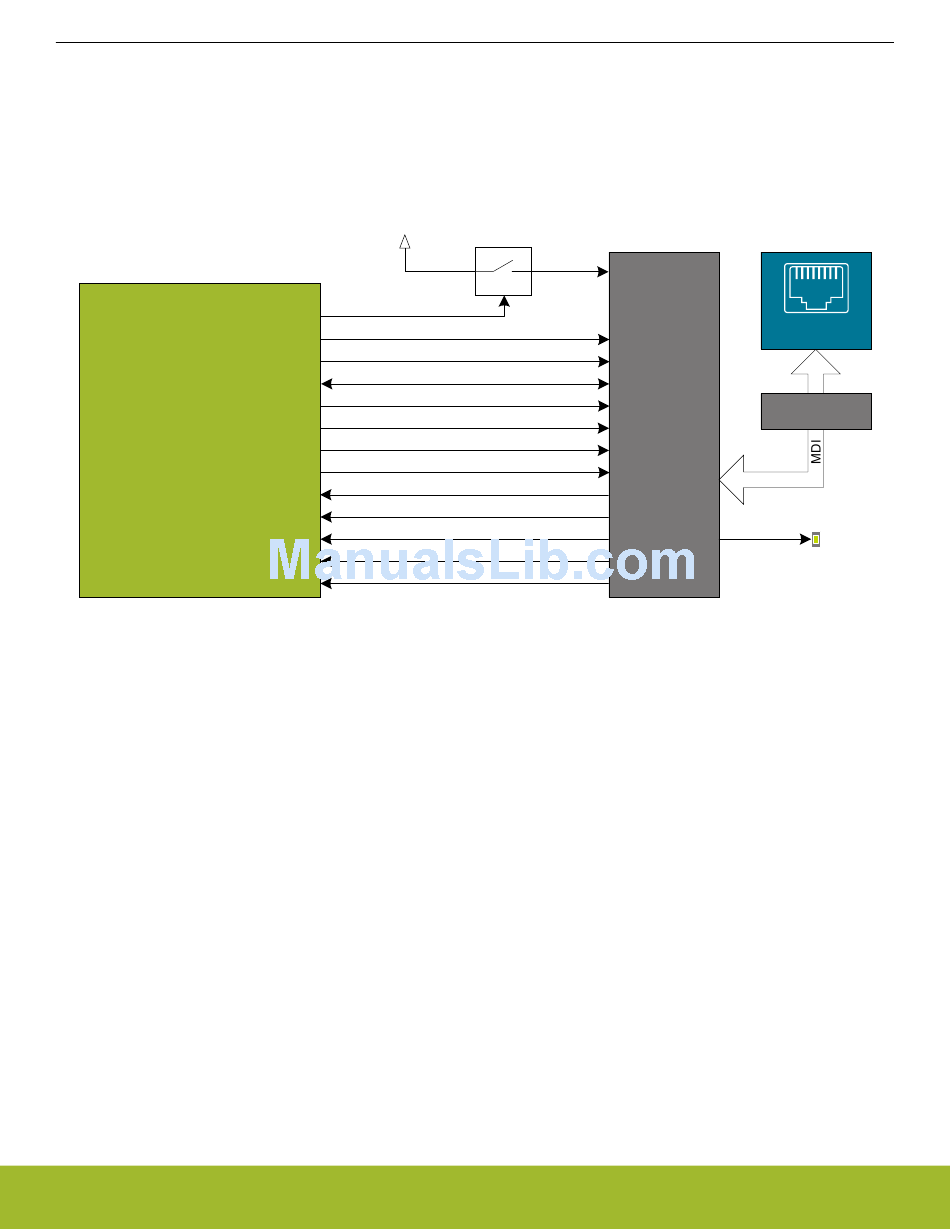

Figure 6.11. Ethernet Interface
UG287: EFM32 Giant Gecko GG11 Starter Kit User's Guide
VDD
Ethernet PHY
Peripherals
RJ-45 Jack
Magnetics
Link Status &
Activity LED
Rev. 1.10 | 22
