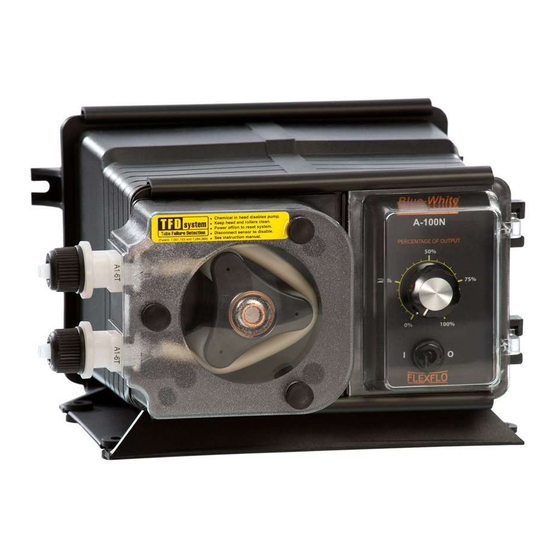

MODEL A-100N
Peristaltic Injector Pump
Operating Manual
Models A-100NA, A-100NC, A-100NS, A-100NF, A-100NX
Blue-White
R
Industries, Ltd.
5300 Business Drive
Huntington Beach, CA 92649
USA
Phone: 714-893-8529
FAX: 714-894-9492
E mail: sales@blue-white.com or techsupport@blue-white.com
Website: www.blue-white.com
Advertisement
Table of Contents
Related Manuals for Blue-White industries flexflo A-100N
Summary of Contents for Blue-White industries flexflo A-100N
- Page 1 ® MODEL A-100N Peristaltic Injector Pump Operating Manual Models A-100NA, A-100NC, A-100NS, A-100NF, A-100NX Blue-White Industries, Ltd. 5300 Business Drive Huntington Beach, CA 92649 Phone: 714-893-8529 FAX: 714-894-9492 E mail: sales@blue-white.com or techsupport@blue-white.com Website: www.blue-white.com...
-
Page 2: Table Of Contents
A-100N Page 2 TABLE OF CONTENTS 1..Introduction..................3 2..Specifications ..................3 3..Features ..................3 4..Unpacking ..................4 5..Installation..................4 5.1..Mounting location ..............4 5.2..Optional circuit board signal connection installation....6 5.3..Input power connections ............8 5.4..How to install the tubing and fittings.........10 6..How to adjust the output ...............11 6.1..Fixed cycle timer models ............11 6.2..Variable speed model ..............11 6.3..TFD - Tube Failures Detection system ........12... -
Page 3: Introduction
A-100N Page 3 1.0 Introduction Congratulations on purchasing the A-100N Peristaltic Metering Pump. The A-100N is designed to inject chemicals into piping systems. The pump has been tested by NSF International for use with 12 ½% Sodium Hypochlorite. This manual covers the following feed rate adjustment mechanisms: Fixed Cycle Timer - (Models A-100NA, A-100NC, A-100NS) The fixed speed pumping mechanism is turned on and off by an electronic timer. -
Page 4: Unpacking
A-100N Page 4 4.0 Unpacking Your pump package should contain the following: 1 - Injector pump with 2 pump tube assemblies 1 - suction tube strainer 1 - ceramic tubing weight 1 - 5’ Length of clear PVC suction tubing 1 - 5’... -
Page 5: Typical Installation
Chemical Suction fumes can damage the Tube unit. Chemical Container with cover Ceramic Weight Strainer PARTS LOCATOR DRAWING A-100N 100% BLUE-WHITE INDUSTRIES Pumptube Assembly Rotor Control Cover Pumphead Enclosure Rear Plate Slide Clamps* Assembly Cover Pumphead Control Slide both top & bottom clamps to the left only far enough to open the control cover. -
Page 6: Optional Circuit Board Signal Connection Installation
A-100N Page 6 5.2 Optional circuit board signal connection installation - pump includes three optional external signal connections: FVS - FLOW VERIFICATION SENSOR INPUT Accepts a pulse signal from an optional Blue-White sensor confirming that fluid is passing through the pump. Triggers and alarm output if fluid is not detected. - Page 7 A-100N Page 7 CIRCUIT BOARD SIGNAL CONNECTION FVS - FLOW VERIFICATION SENSOR INPUT 120 VAC 230VAC LOAD - + - + MA AL AL - OPEN COLLECTOR ALARM OUTPUT MA - OPEN COLLECTOR MOTOR ACTIVE OUTPUT...
-
Page 8: Input Power Connections
A-100N Page 8 5.3 Input Power Connections WARNING: Risk of electric shock. WARNING: Risk of electric shock. Be certain to connect the pump to the proper supply voltage. Using the incorrect voltage will damage the pump and may result in injury. The voltage requirement is printed on the pump serial label. - Page 9 A-100N Page 9 CYCLE ADJUSTMENT POTENTIOMETER OPTIONAL POWER INDICATOR LAMP 108/130 VAC 120 VAC 208/240 VAC COMMON 230VAC INPUT POWER GROUND LOAD SWITCH - + - + MA AL OPTIONAL INJECTOR PURPLE BLACK INDICATOR LAMP MOTOR NEUTRAL WIRING DIAGRAM - Model A-100NA & A-100NC CYCLE ADJUSTMENT POTENTIOMETER OPTIONAL POWER...
-
Page 10: How To Install The Tubing And Fittings
Outlet Adapter A-100N 100% Inlet Adapter BLUE-WHITE INDUSTRIES ! Injection/Check Valve Fitting Installation - The Injection/Check valve fitting is designed to install directly into either 1/4” or 1/2” female pipe threads. This fitting will require periodic cleaning, especially when injecting fluids that calcify such as sodium hypochlorite. -
Page 11: How To Adjust The Output
25 percent, the pump will run for 15 seconds and turn off for 45 BLUE-WHITE INDUSTRIES seconds (60 second total cycle). This cycle is repeated until either the power switch is turned off, the cycle time is changed or the input power is disconnected from the pump. -
Page 12: Tfd - Tube Failures Detection System
A-100N Page 12 6.3 TFD (Tube Failure Detection) - The pump is equipped with a Tube Failure Detection System which is designed to stop the pump and provide an open collector (sinking) output signal in the event the pump tube should rupture and chemical enters the pump head. - Page 13 Plug the connector onto the circuit board at the pins marked “FVS”. See page 6. Outlet Adapter A-100N FVS Sensor 100% BLUE-WHITE INDUSTRIES Inlet Adapter Open Collector Alarm Output - An open collector (sinking) output signal is provided with the FVS system. (See page 6).
-
Page 14: How To Maintain The Pump
A-100N Page 14 7.0 How to Maintain the Pump CAUTION: Proper eye and skin protection must be CAUTION: Proper eye and skin protection must be worn when installing and servicing the pump. worn when installing and servicing the pump. 7.1 Routine Inspection and Maintenance The pump requires very little maintenance. -
Page 15: How To Replace The Pump Tube
+ With the pump running, pull the inlet 100% fitting out of the pumphead. Guide the tube counter clockwise away from the BLUE-WHITE INDUSTRIES rollers. Pull the outlet fitting out of the Inlet Adapter pump head. Install the New Pump Tube - Be sure the pump head chamber is clean and free of any debris. -
Page 16: Replacement Parts Drawing
A-100N Page 16 REPLACEMENT PARTS DRAWING... -
Page 17: Replacement Parts List
A-100N Page 17 REPLACEMENT PARTS LIST... -
Page 18: Warranty Information
Blue-White Industries will not be liable for any damage that may result by the use of chemicals with their injectors and it’s components. Thank you. -
Page 19: Authorized Service Centers
V.J. Mini & Son, Inc. 408-378-2607 TENNESSEE 1581 N. Dixie Highway Rock City Machine Pompano Beach, FL 33060 CALIFORNIA (SOUTHERN) 307 3rd Avenue South 305-946-0920 Blue-White Industries Nashville, TN 37201 (Repair Center) 615-244-1371 ILLINOIS 5422 Business Drive Mullarkey Associates Huntington Bch. CA 92649 TEXAS... - Page 20 Blue-White Industries, Ltd. 5300 Business Drive Huntington Beach, CA 92649 Phone: 714-893-8529 FAX: 714-894-9492 E mail: sales@blue-white.com or techsupport@blue-white.com Website: www.blue-white.com # 80000-327 Rev. 2/26/2007...
