Certified to
NSF/ANSI Standard 50
Exclusive:
TF D
system
Tube Failure Detection
Patented
ProSeries
2
T WO-YEAR
WARRANTY
5300 Business Drive, Huntington Beach, CA 92649, USA
Phone: 714-893-8529
E mail: sales@blue-white.com | techsupport@blue-white.com

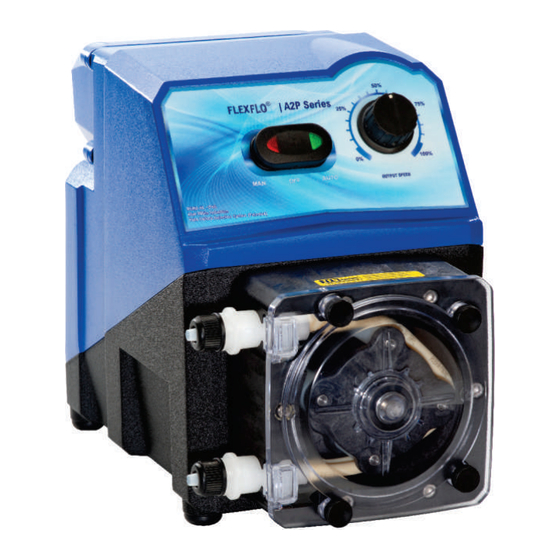

Peristaltic Metering Pump
R
SERIES A2P
FAX: 714-894-9492
Operating Manual
URL: www.Blue-White.com
®
Protected by Patents: 8,418,364; 8,215,931;
7,001,153; 7,284,964; 4,496,295
and other patents pending
Advertisement
Table of Contents
Related Manuals for Blue-White industries FLEXFLO A2P Series
Summary of Contents for Blue-White industries FLEXFLO A2P Series
- Page 1 ® Peristaltic Metering Pump SERIES A2P Certified to NSF/ANSI Standard 50 Exclusive: TF D Operating Manual system Tube Failure Detection Patented ProSeries T WO-YEAR Protected by Patents: 8,418,364; 8,215,931; WARRANTY 7,001,153; 7,284,964; 4,496,295 and other patents pending 5300 Business Drive, Huntington Beach, CA 92649, USA Phone: 714-893-8529 FAX: 714-894-9492 E mail: sales@blue-white.com | techsupport@blue-white.com...
-
Page 2: Table Of Contents
® Page 2 FlexFlo TABLE OF CONTENTS Section Heading Page Introduction ......... . 3 Available Models . -
Page 3: Introduction
NOTE: Your new pump has been pressure tested at factory with clean water before shipping. You may notice trace amounts of clean water in pre-installed tube assembly. This is part of our stringent quality assurance program at Blue-White Industries, Ltd. Available Models... -
Page 4: Engineering Specifications
® Page 4 FlexFlo Engineering Specifications Maximum Working Pressure Motor: (Excluding pump tubes) 50 psig (3.4 bar) Brushed DC, 1/8 H.P. NOTE: See the individual pump tube assembly maximum pressure Duty Cycle: ratings. Continuous Maximum Suction Lift: Motor Speed Adjustment Range 100:1: 30 ft. -
Page 5: Features
® Page 5 FlexFlo Features > Peristaltic pump design does not have valves that can clog requiring maintenance. > Self priming - even against maximum line pressure. By-pass valves are not required. Cannot vapor lock or lose prime. > Variable speed DC motor. >... -
Page 6: Installation
® Page 6 FlexFlo Installation CAUTION Risk of chemical overdose. Be certain pump does not overdose chemical during backwash and periods of no flow in circulation system. CAUTION Always wear protective clothing, face shield, safety glasses and gloves when working on or near your metering pump. -
Page 7: Installing Injection Fitting And Strainer
® Page 7 FlexFlo Installing Injection Fitting and Strainer CAUTION Proper eye and skin protection must be worn when installing and servicing pump. This pump has been evaluated for use with water only. Also, this pump has been CAUTION tested by NSF International for use with 12-1/2% sodium hypochlorite only. Injection Fitting and Strainer for 1/4”... -
Page 8: Power Connections
® Page 8 FlexFlo Power Connections WARNING Risk of electric shock – cord connected models are supplied with a grounding conductor and grounding-type attachment plug. To reduce risk of electric shock, be certain that it is connected only to a properly grounded, grounding-type receptacle. WARNING Electrical connections and grounding (earthing) must conform to local wiring codes. -
Page 9: Wiring Terminal And I/O Schematics
® Page 9 FlexFlo Wiring Terminals and I/O Schematics WARNING Risk of electric shock - All N.O. = Normally Open wiring must be insulated N.C. = Normally Closed and rated 300V minimum. COM = Common N/C = Not connected LINE N EUTRAL (HOT) (COMMON) -
Page 10: How To Adjust The Output
® Page 10 FlexFlo How to Adjust the Output Speed of the pumping mechanism is adjustable from 1% to 100%. With manual (MAN) selected, turn the adjustment knob to the desired percentage of speed. Tube Failure Detection (TFD) ® FlexFlo is equipped with a Tube Failure Detection (TFD) system, which is designed to stop pump and provide an output alarm in event pump tube should rupture and chemical enters pump head. -
Page 11: Tube Replacement
® Page 11 FlexFlo Tube Replacement CAUTION Prior to service, pump clean water through pump and suction / discharge line to remove chemical. Always wear protective clothing, face shield, safety glasses and gloves when working on or CAUTION near your metering pump. Additional precautions should be taken depending on solution being pumped. -
Page 12: Tube Installation
® Page 12 FlexFlo Tube Installation NOTE: Thoroughly clean the pump head and rotor. Rotor can be removed by pulling straight out. After the cleaning process, push the rotor back on the shaft. Refer to the drawing below for proper assembly. NOTE: For the rotor direction, the word, “FRONT,”... -
Page 13: Pump Maintenance
® Page 13 FlexFlo 10.0 Pump Maintenance CAUTION Always wear protective clothing, face shield, safety glasses and gloves when working on or near your metering pump. Additional precautions should be taken depending on solution being pumped. Refer to MSDS precautions from your solution supplier. Routine Inspection and Maintenance The pump requires minimal maintenance. - Page 14 Page 14 ® FlexFlo THIS PAGE IS INTENTIONALLY LEFT BLANK...
-
Page 15: Pump Head Replacement Parts List
Page 15 ® FlexFlo Price List Replacement Parts List Peristaltic Metering Pump Item Description Part Number Spacer, Back 90011-217 Roller Assembly Complete (Rotor), For NEE and NGG Tubes A2-SNGG-R Tube Assembly, 3/8” OD Tube Compression, Flex-A-Prene NGG (.187 ID) A2P-SNGG-T Tubing in this group are interchangeable with Tube Assembly, 3/8”... -
Page 16: Warranty
Should it become necessary to return the pump for repair or service, you must attach information regarding the chemical used as some residue may be present within the unit which could be a hazard to service personnel. Blue-White Industries, Ltd. will not be liable for any damage that may result by the use of chemicals with their injectors and its components.
