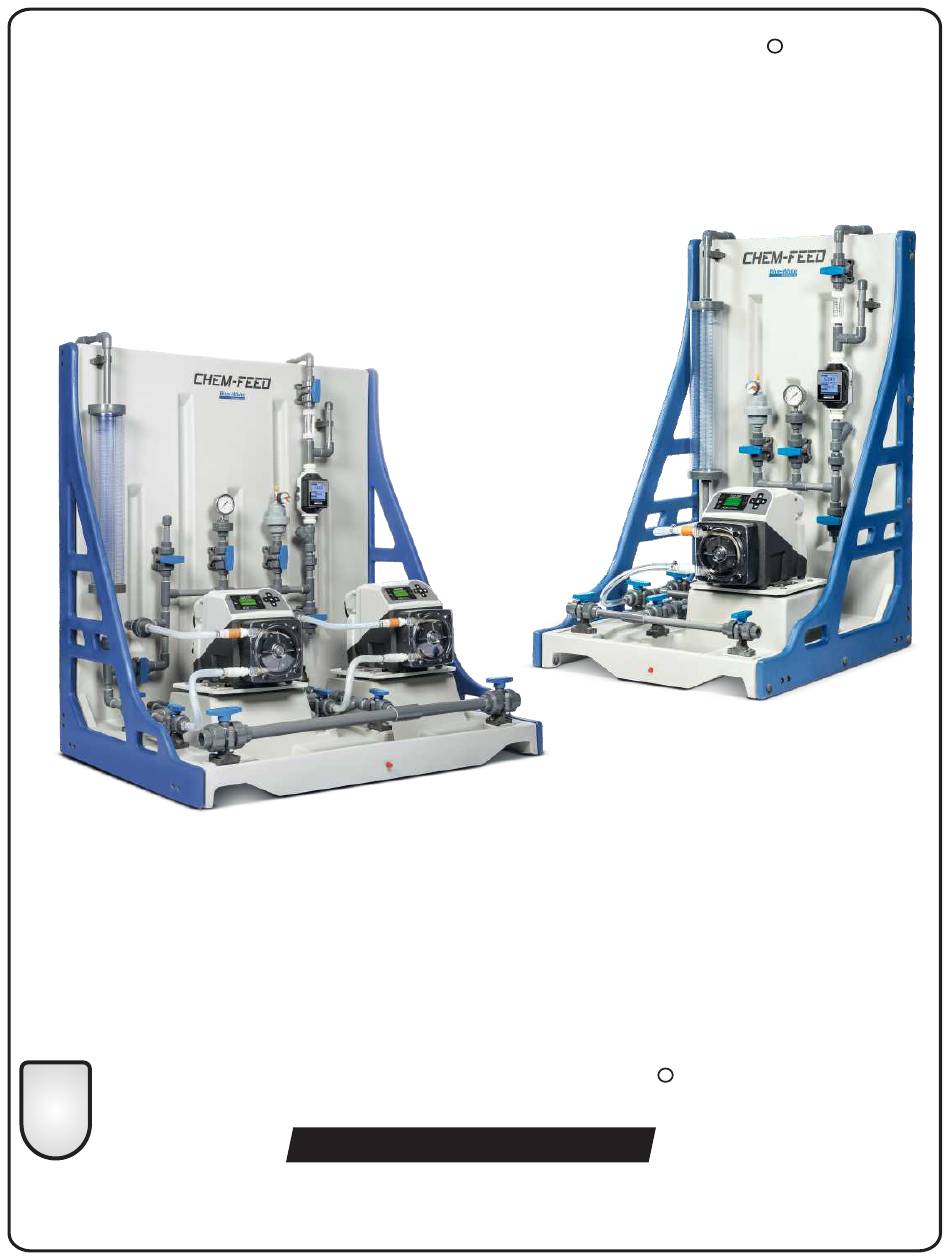

R
CHEM-FEED
Engineered Skid Systems

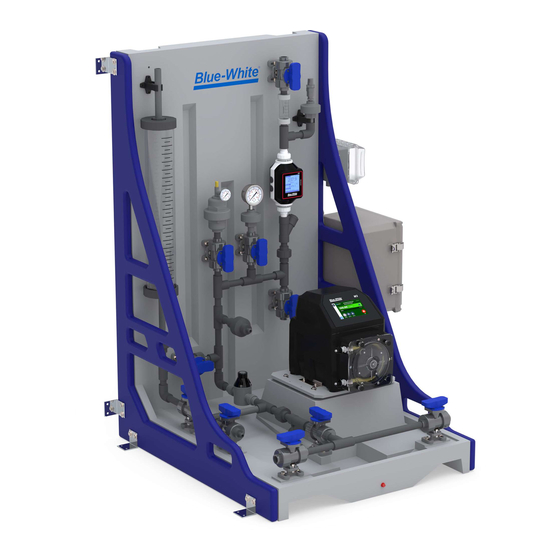

CFPS-1 Single pump system
CFPS-2 Dual pump system
Note: Your Chem-Feed Engineered Skid System may be designed differently from above photos.
ProSeries
ProSeries
R
TM
2
T WO-YEAR
WARRANTY
by Blue-White Ind.
5300 Business Drive, Huntington Beach, CA 92649
USA
Phone: 714-893-8529
FAX: 714-894-9492
E mail: sales@blue-white.com or techsupport@blue-white.com
URL: www.blue-white.com
Advertisement
Table of Contents
Related Manuals for Blue-White industries ProSeries Chem-Feed CFPS-1
Summary of Contents for Blue-White industries ProSeries Chem-Feed CFPS-1
- Page 1 CHEM-FEED Engineered Skid Systems CFPS-1 Single pump system CFPS-2 Dual pump system Note: Your Chem-Feed Engineered Skid System may be designed differently from above photos. ProSeries ProSeries T WO-YEAR WARRANTY by Blue-White Ind. 5300 Business Drive, Huntington Beach, CA 92649 Phone: 714-893-8529 FAX: 714-894-9492 E mail: sales@blue-white.com or techsupport@blue-white.com...
-
Page 2: Table Of Contents
Please Note: Your new Chem-Feed® System has been pressure tested at the factory with clean water for a minimum of four hours before shipping. You may notice trace amounts of clean water in the system. This is part of our stringent quality assurance program at Blue-White Industries. Features Chem-Feed®... -
Page 3: Specifications
Page 3 CFS System Specifications Items listed below are standard available items and ship with most configurations. Your system may be custom- ized with components not listed below. Skid Universal mounting blocks Chemically resistant polyethylene structure. PA 12 Pump extended mounting brackets Pump (sold separately) 316 Stainless Steel... -
Page 4: Dimensions
Page 4 CFS System Dimensions Your Chem-Feed System may be designed differently from drawings below. However, the dimensions shown below remain the same no matter your configuration. Single Pump System: 49.50in 45.37in 46.47in 125.73cm 115.24cm 118.04cm 32.15in 30.00in 81.65cm 76.20cm 34.00in 88.90cm 86.36cm... -
Page 5: Mounting A Pump To The System (Single And Dual)
Page 5 CFS System Mounting Pump to the Chem-Feed® System - Single and Dual System Socket Head Screw, SS #10-32 - .625” #10 washer, and 10-32 nut. (Qty: 4 of each per pump) Mounting Bracket (Qty: 2 per pump) -
Page 6: Component Identification And Typical Operation - Single Pump
Page 6 CFS System Component Identification and Typical Operation - Single Pump Skid Cali brat ion Cyli nder Gaug e Guard Pulse Dampener Press ure Gaug e (optional) One way Check Valve Chemical Feed (with union) Flowmeter * PRV = Pressure Relief Valve preset at 50psi... -
Page 7: How To Operate The Chem-Feed® Skid System - Single Pump
Page 7 CFS System How To Operate the Chem-Feed® Skid System - Single Pump Skid Connections: Connect chemical solution into either Inlet 1 or inlet 2. (V-1 or V-2) Connect chemical treated system to outlet. (V-10) To Pump chemical solution into system. Open ball valve V-1 or V-2, depending on your inlet side. -
Page 8: Component Identification And Typical Operation - Dual Pump
Page 8 CFS System Component Identification and Typical Operation - Dual Pump Skid One way Check Valves (with union) Cali brat ion Cyli nder Pres sure Pulsation Gau ge Dampener (optional) Chemical Feed Flowmeter * PRV = Pressure Relief Valve preset at 50psi... -
Page 9: How To Operate The Chem-Feed Skid System - Dual Pump
Page 9 CFS System How To Operate the Chem-Feed® Skid System - Dual Pump Skid Connections: Connect chemical solution into either Inlet 1 or inlet 2. (V-1 or V-2) Connect chemical treated system to outlet. (V-11) To Pump chemical solution into system. Open ball valve V-1 or V-2, depending on your inlet side. -
Page 10: Mounting The Skid System To Floor/Wall
Page 8 CFS System Mounting the Chem-Feed® System - Single and Dual System FLOOR MOUNT The Skid system is shipped with the mounting brackets ready for floor mounting. Mount the skid system to the floor using eight 1/4-20 Bolts (see fig. 1) through the mounting brackets. fig.1 WALL MOUNT Remove the mounting brackets using a 1/4”... -
Page 11: Chem-Feed® Matrix
Page 9 CFS System Chem-Feed® Skid System Matrix Chem-Feed® Engineered Plastic Skid System Matrix System type CFPS-1 Single pump system - single chemical / single outlet, PE structure Dual pump system - single chemical / single outlet, PE structure CFPS-2 Piping / Valves / Unions / Seal Materials PVC piping, 1/2”... -
Page 12: Warranty
Should it become necessary to return the system or system components for repair or service, you must attach information regarding the chemical used as some residue may be present within the unit which could be a hazard to service personnel. Blue-White Industries will not be liable for any damage that may result by the use of chemicals with their system and its components.
