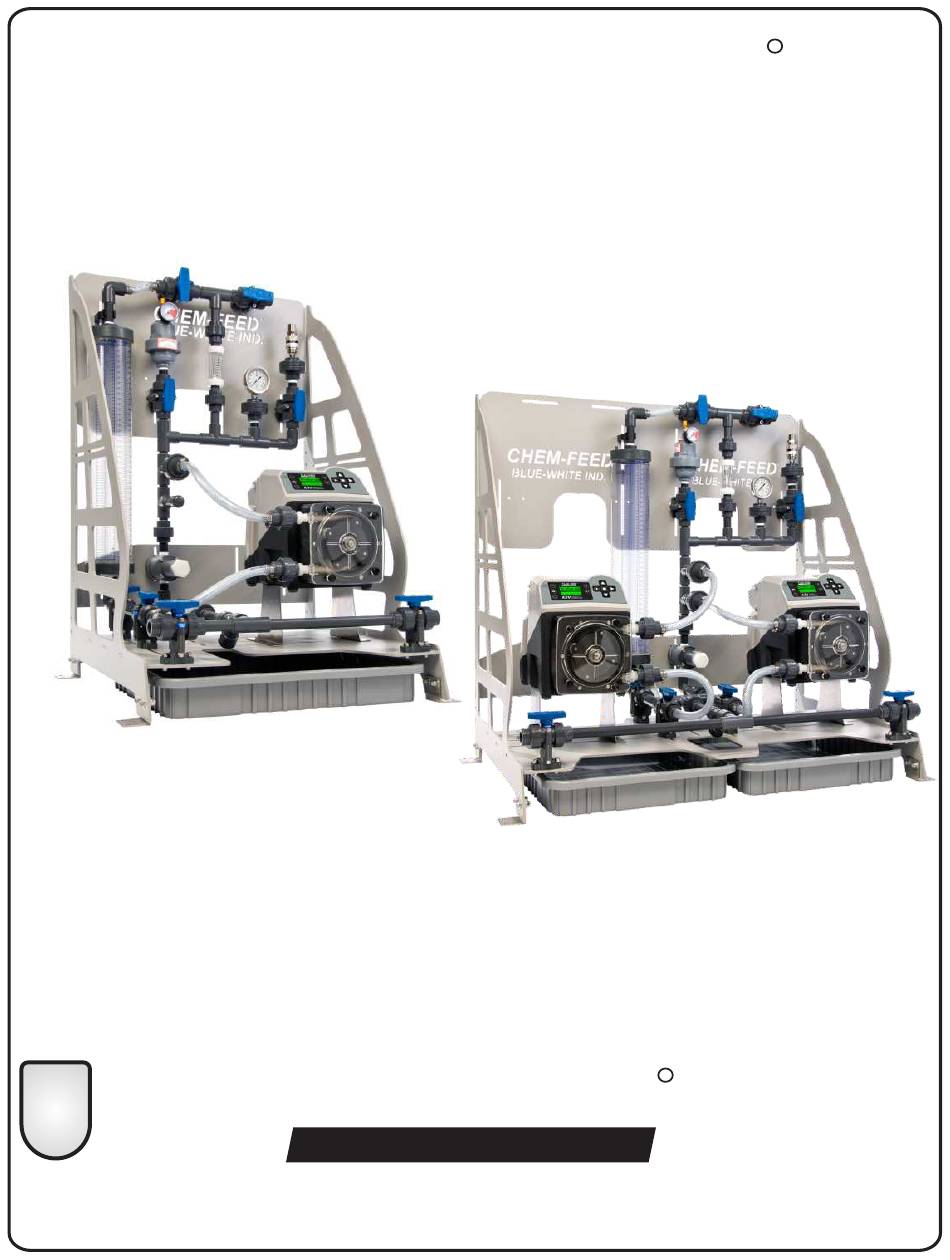

CHEM-FEED

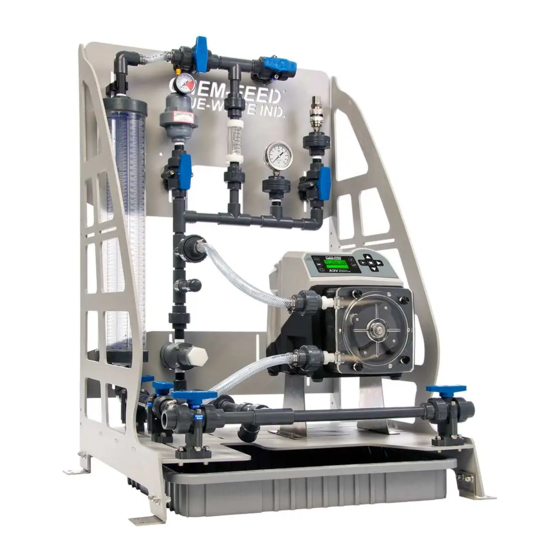

Single pump model number CFS-1AA-XAAA
Shown with Flex-Pro A3 pump sold separately
Note: Your Chem-Feed Engineered Skid System may be designed differently from above photos.
ProSeries
2
T WO-YEAR
WARRANTY
E mail: sales@blue-white.com or techsupport@blue-white.com
Engineered Skid Systems
ProSeries
5300 Business Drive, Huntington Beach, CA 92649
Phone: 714-893-8529
by Blue-White Ind.
FAX: 714-894-9492
R
Dual pump model number CFS-2AA-XAAA
Shown with Flex-Pro A3 pumps, sold separately
R
TM
USA
URL: www.blue-white.com
Advertisement
Table of Contents
Related Manuals for Blue-White industries ProSeries Chem-Feed CFS-1AA-XAAA
Summary of Contents for Blue-White industries ProSeries Chem-Feed CFS-1AA-XAAA
- Page 1 CHEM-FEED Engineered Skid Systems Single pump model number CFS-1AA-XAAA Shown with Flex-Pro A3 pump sold separately Dual pump model number CFS-2AA-XAAA Shown with Flex-Pro A3 pumps, sold separately Note: Your Chem-Feed Engineered Skid System may be designed differently from above photos. ProSeries ProSeries T WO-YEAR...
-
Page 2: Table Of Contents
Please Note: Your new Chem-Feed® System has been pressure tested at the factory with clean water for a minimum of four hours before shipping. You may notice trace amounts of clean water in the system. This is part of our stringent quality assurance program at Blue-White Industries. -
Page 3: Specifications
Page 3 CFS System Specifications Items listed below are standard available items and ship with most configurations. Your system may be custom- ized with components not listed below. Skid Universal mounting blocks Chemically resistant polyester powder coated 6061 T6 aluminum. Welded joint construction. -
Page 4: Dimensions
Page 4 CFS System Dimensions Your Chem-Feed System may be designed differently from drawings below. However, the dimensions shown below remain the same no matter your configuration. Single Pump System: 2.5" (6.4cm) 35.0" (88.9cm) 30.75” (78.1cm) 6.0" (15.2cm) 20.25" 22.75" (51.4cm) (57.8cm) 23.75”... -
Page 5: Features
Page 5 CFS System Features Chem-Feed® Engineered Skid Systems were designed and engineered using solid modeling tools for superior piping installation and easy component maintenance. Custom engineered universal mounting blocks and pre-machined mounting slots provide for easy component servicing and replacement. Each factory built and tested system includes the following standard components: Pressure Relief Valve - Protects the system from over-pressurization, 5-100 psi setting range, 150 psi maximum system pressure. -
Page 6: Chem-Feed® Matrix
Page 6 CFS System Chem-Feed® Skid System Matrix Chem-Feed® Engineered Skid System Matrix Chem-Feed Engineered Skid System Matrix System type CFS-1 Single pump system - single chemical / single outlet CFS-2 Dual pump system - single chemical / single outlet Piping / Valves / Unions / Seal Materials PVC piping, FKM seals, 3/4”... -
Page 7: Mounting A Pump To The System (Single And Dual)
Page 7 CFS System Mounting Pump to the Chem-Feed® System - Single and Dual System A4 Pump Before securing, move pump as far over to right as possible. Socket Head Screw, SS #10-32 - .5” (Qty: 4 per pump) Extended Brackets SS (Qty: 4) Washer, SS (Qty: 8) Hex Nut, SS (Qty: 4) -
Page 8: Component Identification And Typical Operation - Single Pump
Page 8 CFS System Component Identification and Typical Operation - Single Pump Skid Pulse Dampener (optional) Vent To Chemical Tank Flow Calib ratio n Gaug e Verification Sensor Cylin der G a u g G u a r d One way Check Valve (with union) Drip Containment Tray... -
Page 9: How To Operate The Chem-Feed® Skid System - Single Pump
Page 9 CFS System How To Operate the Chem-Feed® Skid System - Single Pump Skid Connections: Connect chemical solution into either Inlet 1 or inlet 2. (V-1 or V-2) Connect chemical treated system to outlet. (V-7) Connect safety vent adapter with 1/4” ID tube from top of calibration cylinder to chemical supply tank. To Pump chemical solution into system. -
Page 10: Component Identification And Typical Operation - Dual Pump
Page 10 CFS System Component Identification and Typical Operation - Dual Pump Skid Chemical Output Pulse Dampener (optional) Vent To Chemical Gauge Tank Flow Verification Sensor Gauge Calibration Guard Cylinder One way Check Valve (with union) PRV* Chemical Chemical Input #1 Input #2 Drip Containment Tray Drip Containment Tray... -
Page 11: How To Operate The Chem-Feed Skid System - Dual Pump
Page 11 CFS System How To Operate the Chem-Feed® Skid System - Dual Pump Skid Connections: Connect chemical solution into either Inlet 1 or inlet 2. (V-1 or V-2) Connect chemical treated system to outlet. (V-8) Connect safety vent adapter with 1/4” ID (3/8” OD) tube from top of calibration cylinder to chemical supply tank. To Pump chemical solution into system. - Page 12 Should it become necessary to return the system or system components for repair or service, you must attach information regarding the chemical used as some residue may be present within the unit which could be a hazard to service personnel. Blue-White Industries will not be liable for any damage that may result by the use of chemicals with their system and its components.
