Step 3. Release the screwdriver that hold the slot.

3.2 Device Installation

Warning:
Contents in this chapter are for ITC237-PW1B-IRZ only.

3.2.1 (Optional) Install SD Card

Note:
When the device has SD card slot and needs SD card, you shall:

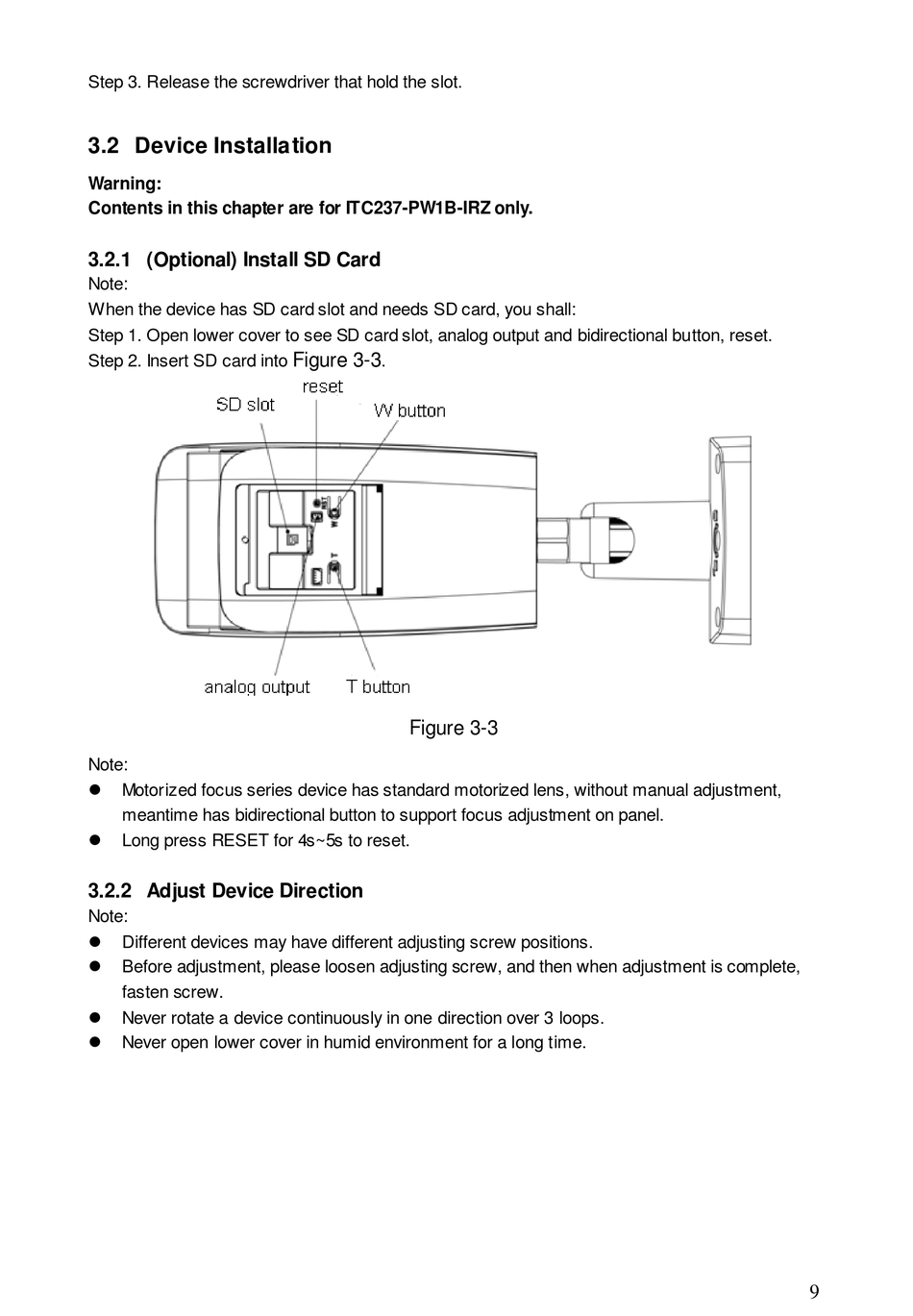

Step 1. Open lower cover to see SD card slot, analog output and bidirectional button, reset.
Step 2. Insert SD card into
Note:

Motorized focus series device has standard motorized lens, without manual adjustment,
meantime has bidirectional button to support focus adjustment on panel.

Long press RESET for 4s~5s to reset.

3.2.2 Adjust Device Direction

Note:

Different devices may have different adjusting screw positions.

Before adjustment, please loosen adjusting screw, and then when adjustment is complete,
fasten screw.

Never rotate a device continuously in one direction over 3 loops.

Never open lower cover in humid environment for a long time.
Figure 3-3
.
Figure 3-3
