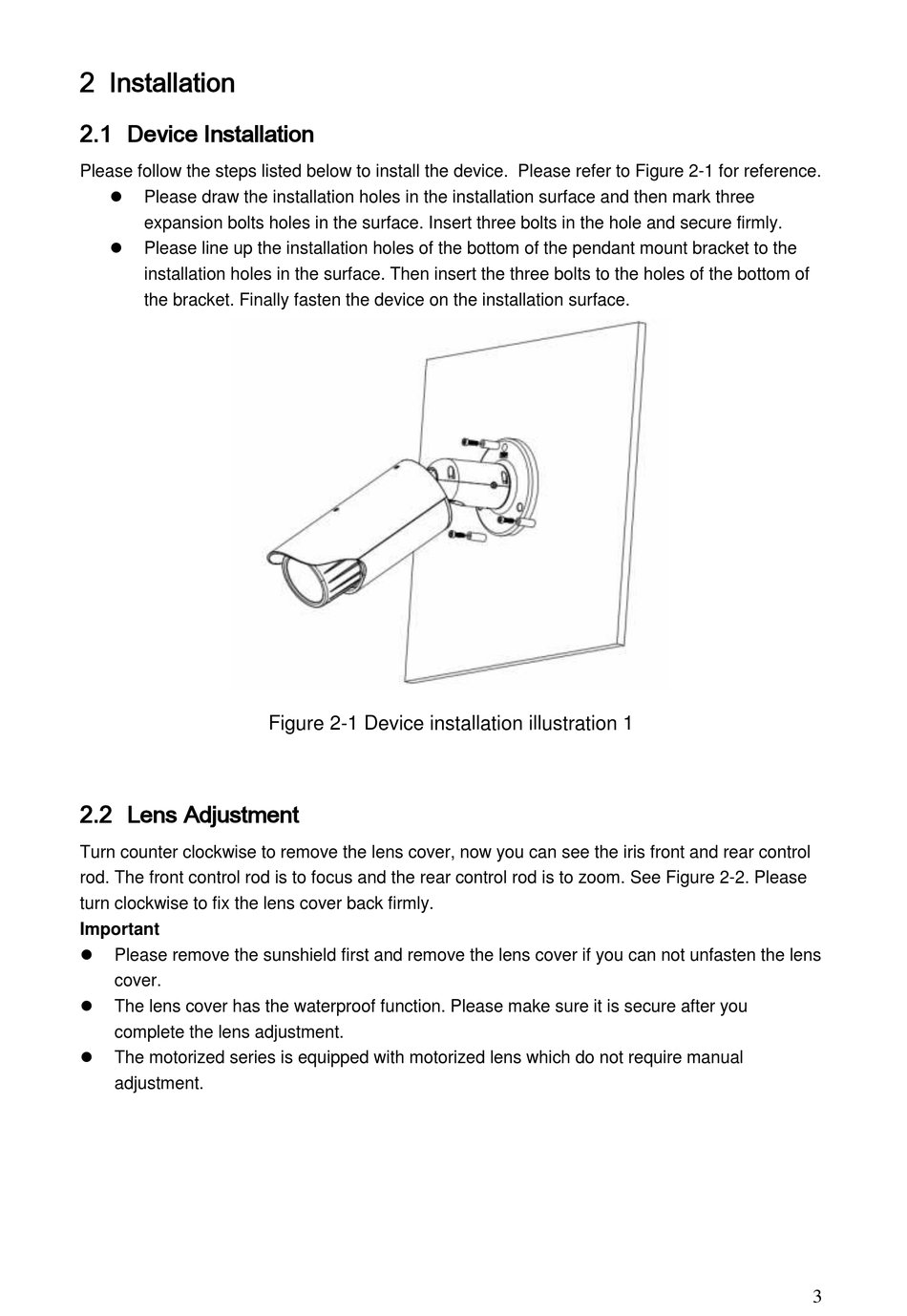

2 Installation
2.1 Device Installation
Please follow the steps listed below to install the device. Please refer to Figure 2-1 for reference.
Please draw the installation holes in the installation surface and then mark three
expansion bolts holes in the surface. Insert three bolts in the hole and secure firmly.
Please line up the installation holes of the bottom of the pendant mount bracket to the
installation holes in the surface. Then insert the three bolts to the holes of the bottom of
the bracket. Finally fasten the device on the installation surface.
2.2 Lens Adjustment
Turn counter clockwise to remove the lens cover, now you can see the iris front and rear control
rod. The front control rod is to focus and the rear control rod is to zoom. See Figure 2-2. Please
turn clockwise to fix the lens cover back firmly.
Important
Please remove the sunshield first and remove the lens cover if you can not unfasten the lens
cover.
The lens cover has the waterproof function. Please make sure it is secure after you
complete the lens adjustment.
The motorized series is equipped with motorized lens which do not require manual
adjustment.
Figure 2-1 Device installation illustration 1
3
