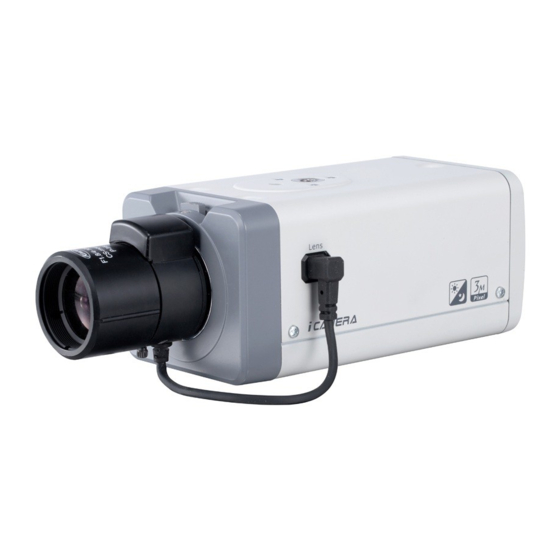

Dahua IPC-HF3500 Series User Manual

Megapixel indoor ip camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Megapixel Indoor IP Camera User's Manual
Version 3.5.0
eLineTechnology.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPC-HF3500 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dahua IPC-HF3500 Series

Summary of Contents for Dahua IPC-HF3500 Series

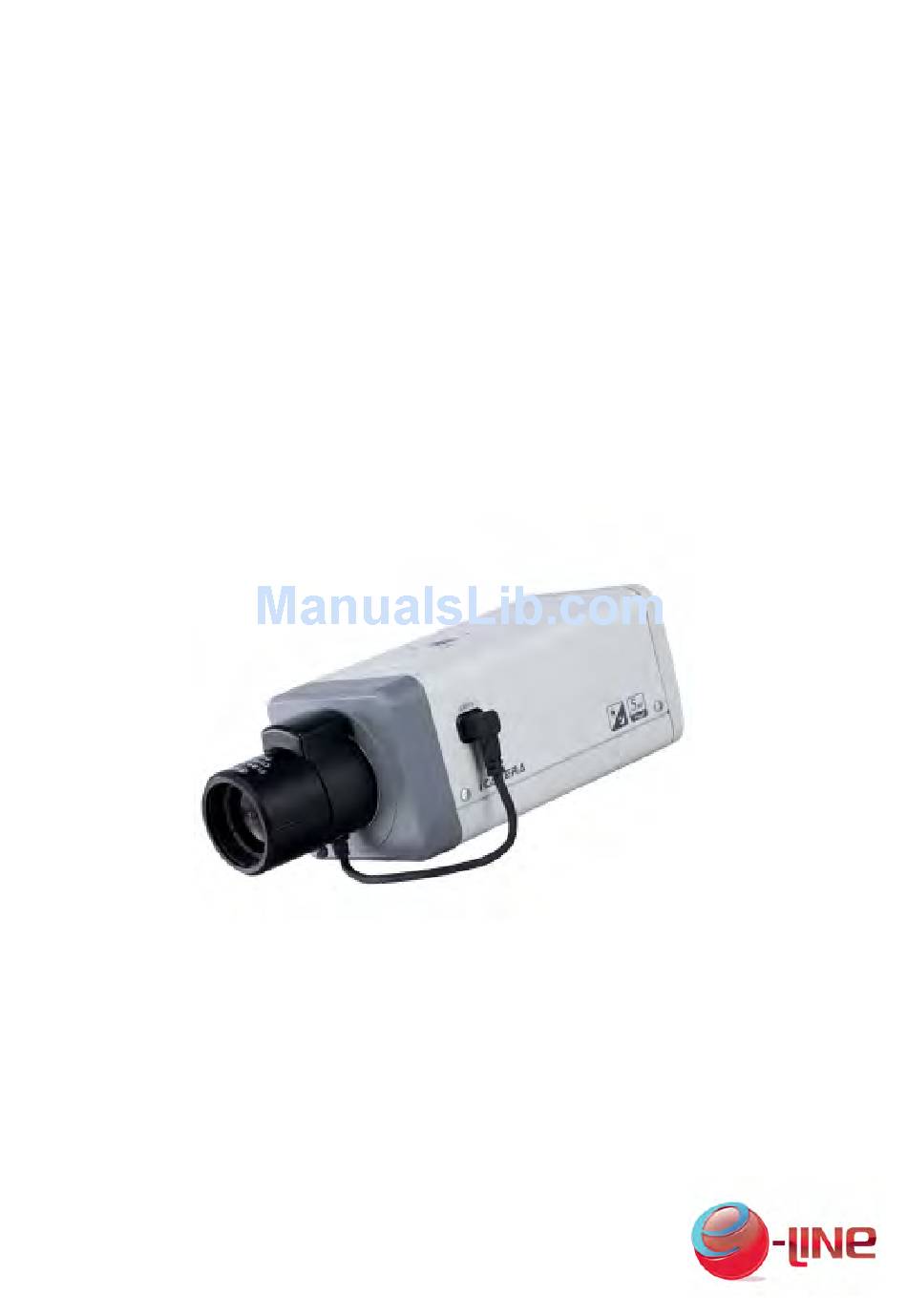

  • Page 1 Megapixel Indoor IP Camera User’s Manual Version 3.5.0 eLineTechnology.com...
  • Page 2 Welcome Thank you for purchasing our IP camera! This user’s manual is designed to be a reference tool for your system. Please read the following safeguard and warnings carefully before you use this series product! Please keep this user’s manual well for future reference! eLineTechnology.com...

  • Page 3: Important Safeguards And Warnings

    Important Safeguards and Warnings 1．Electrical safety All installation and operation here should conform to your local electrical safety codes. The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited power source is rated 12V DC or 24V AC in the IEC60950-1. Before you replace the SD card, please unplug the power cable and then remove the shell We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation.
  • Page 4 Quick Start ■ Guide ■ eLineTechnology.com...

  • Page 5: Table Of Contents

    Table of Contents General Introduction ........................1 Overview ........................1 Feature...........................1 Specifications ........................2 1.3.1 Performance......................2 1.3.2 Factory Default Setup ...................4 Framework..........................13 Rear Panel........................13 Side Panel ........................17 Front Panel ........................17 Bidirectional talk ......................18 2.4.1 Device-end to PC-end ..................18 2.4.2 PC-end to the Device-end..................18 Alarm Setup.........................19 2.5.1 Alarm Input and Output Connection..............19 2.5.2 IR Light Connection ....................20...
  • Page 6 3.4.1 Installation ......................25 3.4.2 Remove.........................25 I/O Port.........................26 Quick Configuration Tool......................28 Overview ........................28 Operation ........................28 Web Operation..........................31 Network Connection....................31 Login and Logout......................31 FAQ ............................34 Appendix Toxic or Hazardous Materials or Elements ...............35 eLineTechnology.com...

  • Page 7: General Introduction

    1 General Introduction 1.1 Overview This series IP camera integrates the traditional camera and network video technology. It adopts audio video data collection, transmission, storage together. It can connect to the network directly without any auxiliary device. This series IPC uses standard H.264 video compression technology and PCM, G.711a/u audio compression technology, which maximally guarantees the audio and video quality.

  • Page 8: Specifications

    realize the network power supply. To guarantee proper performance, please make sure the power sourcing device can supply at least 10W power. Usually, do not use the PoE for the WIFI/3G device. Day/Night mode auto switch (ICR switch.) Backlight compensation: screen auto split to realize backlight compensation to adjust the bright.
  • Page 9 PAL: Main PAL: Main PAL: Main PAL: Main PAL: Main stream stream stream stream stream （ 1920*1080 （ 1280*960 （ 1280*960 (2560*1920 (2048*1536 @8fps) @15fps) @12.5fps ） @25fps） @25fps）， Extra Extra ， extra stream extra stream, stream(704*5 stream(704*5 （ 704*576 （...

  • Page 10: Factory Default Setup

    Activation event, alarm device, audio/video storage, image snapshot, log, email SMTP function and etc. Alarm Input 1-channel input，1-channel output Record Manual>External alarm >Video detect>Schedule Priority Local Storage Support local SD card hot swap Storage Support display local storage status Management Wire Network 1-channel wire Ethernet port, 10/100 Base-T Ethernet Network...
  • Page 11 Default Setup IPC- IPC- IPC- IPC- IPC- Setup Item HF3500 HF3300 HF3200 HF3100 HF3110 Series Series Series Series Series Auto Iris Profile Auto Day&Night Auto Backlight Mirror Flip Bit stream General type Encode H.264 mode Resolution 1080P（1920*1080） 720P（1280*720） Frame PAL: 25 Rate NTSC:30 （FPS）...
  • Page 12 Default Setup IPC- IPC- IPC- IPC- IPC- Setup Item HF3500 HF3300 HF3200 HF3100 HF3110 Series Series Series Series Series Interval Privacy Disable Mask Video Overlay Channel Enable Title Time Title Enable Snapshot C:\PictureDownload Path Path Record C:\RecordDownload Path Enable Enable Main Stream Encode G.711A...
  • Page 13 Default Setup IPC- IPC- IPC- IPC- IPC- Setup Item HF3500 HF3300 HF3200 HF3100 HF3110 Series Series Series Series Series RTSP Port HTTPs Port Enable Disable PPPoE Username Password Server Disable，CN99 DDNS Type Server IP none Server Port Domain DDNS none Name User none...
  • Page 14 Default Setup IPC- IPC- IPC- IPC- IPC- Setup Item HF3500 HF3300 HF3200 HF3100 HF3110 Series Series Series Series Series Enable UPnP Disable UPnP SNMP v1 Disable SNMP v2 Disable SNMP Port Read public Community Write SNMP private Community Trap Address Trap Port SNMP v3 disable...
  • Page 15 Default Setup IPC- IPC- IPC- IPC- IPC- Setup Item HF3500 HF3300 HF3200 HF3100 HF3110 Series Series Series Series Series Enable Disable Record Enable Channel Record 10 seconds Delay Relay out Enable Video Record 10 seconds Masking Delay Send Email Disable Disable Activation Operation...
  • Page 16 Default Setup IPC- IPC- IPC- IPC- IPC- Setup Item HF3500 HF3300 HF3200 HF3100 HF3110 Series Series Series Series Series Relay out Enable Relay 10 seconds Delay Send Email Disable Enable Disable Relay out Enable Card Relay Error 10 seconds Delay Send email Disable Enable...
  • Page 17 Default Setup IPC- IPC- IPC- IPC- IPC- Setup Item HF3500 HF3300 HF3200 HF3100 HF3110 Series Series Series Series Series Pre-record 5 seconds Disk Full Overwrite Record Auto Mode Record Main Stream Stream Device No Device factory SN Local Host Language English Video Standard...
  • Page 18 Default Setup IPC- IPC- IPC- IPC- IPC- Setup Item HF3500 HF3300 HF3200 HF3100 HF3110 Series Series Series Series Series End Time Current time System Log Start Time The previous day All Types Select all eLineTechnology.com...

  • Page 19: Framework

    2 Framework 2.1 Rear Panel This series IP camera real panel is shown as below. See Figure 2-1. The rear panel with the network port The rear panel with the 100M fiber port Figure 2-1 Please refer to the following sheet for detail information. Interface Name Connector Function...
  • Page 20 TV monitor to view video. AC 24V/ DC 12V Power port Power port. Input 12V DC or AC 24V STATUS Red light System boot up- Indication Light red light is on System upgrades-red light flashes System resets- red light flashes. Green light Normal working status-green light...
  • Page 21 the external alarm device. Alarm output port Alarm output port. To output alarm signal to the alarm device. NO: Normal open alarm output end. C: Alarm output public end. Alarm input ground end. RS485 port RS485_A port, control external PTZ RS485_B port, control external PTZ RS232 port...
  • Page 22 JACK port. from devices such as pick-up. Network port Ethernet port Connect to standard Ethernet cable. Support PoE function. 100M fiber port 155M single fiber Transmit 100M dual-direction SFP Ethernet data. fiber module SD card port Connect to SD card. Note When you install the SD card,...

  • Page 23: Side Panel

    Please make sure the device is securely earthed to prevent the thunderstorm strike. 2.2 Side Panel Please refer to the following interface for side panel dimension information. The unit is mm. See Figure 2-2. Figure 2-2 2.3 Front Panel Please refer to the following interface for the front panel information. The unit is mm. See Figure 2-3.

  • Page 24: Bidirectional Talk

    Figure 2-3 2.4 Bidirectional talk 2.4.1 Device-end to PC-end Device Connection Please connect the speaker or the MIC to the audio input port in the device rear panel. Then connect the earphone to the audio output port in the PC. Login the Web and then click the Audio button to enable the bidirectional talk function.

  • Page 25: Alarm Setup

    2.5 Alarm Setup The alarm setup interface is shown as below. See Figure 2-4. Connect the alarm input device to the alarm input port. Connect the alarm output device to the alarm output port and alarm output public port. The alarm output port supports NO (normal open) alarm device only.

  • Page 26: Ir Light Connection

    If the type is NC, this button is normal off. The button becomes off when there is an alarm output. Figure 2-6 2.5.2 IR Light Connection Please refer to the following figure for external IR light information. See Figure 2-7. IR synchronization input signal.

  • Page 27: Installation

    3 Installation 3.1 Lens Installation 3.1.1 Auto Aperture Lens Please follow the steps listed below for auto aperture lens installation. The interface is shown as in Figure 3-1 and Figure 3-2. Remove the CCD protection cap of the device, and then line up the lens to the proper installation position.

  • Page 28: Remove Lens

    Figure 3-2 3.1.3 Remove Lens Please follow the steps listed below to remove lens. The interface is shown as in Figure 3-3. Turn the lens counter clockwise and then remove it from the camera. Unplug the auto lens cable socket from the auto lens connector. If you are using the manual aperture lens, please skip to the following step.

  • Page 29: Remove

    Figure 3-4 Figure 3-5 3.2.2 Remove Please follow the steps listed below to remove SD card. The interface is shown as Figure 3-6. Use the screwdriver to loosen the screw of SD card protection cap in the rear panel. Remove the cap from the camera. Follow the SD card direction to remove the SD card.

  • Page 30: Remove

    Use the screwdriver to loosen the 3G card protection cap screw in the side panel, and then remove the 3G card protection cap from the camera. Install the 3G card to the camera according to the proper installation position. Put the 3G card protection cap back. Use the screwdriver to fix the 3G card protection cap screw firmly to secure the 3G card protection cap.

  • Page 31: Wifi Antenna

    3.4 3G/WIFI Antenna 3.4.1 Installation Line up the thread of the screw of the 3G/WIFI antenna to the thread of the rear panel. See Figure 3-10. Please turn according to the direction in the following figure until antenna is secure firmly. See Figure 3-11.

  • Page 32: I/O Port

    Use your hands to hold the 3G/WIFI thread end and then turn according to the following figure. See Figure 3-13. Now you can see the antenna is away from the thread. See Figure 3-14. Figure 3-13 Figure 3-14 Remove the 3G/WIFI antenna from the port of the rear panel. See Figure 3-15. Figure 3-15 3.5 I/O Port Install Cable...
  • Page 33 Use the small slotted screwdriver to press the corresponding button of cable groove. Insert the cable into the groove and then release the screwdriver. Remove Cable Please follow the steps listed below to remove the cable. Use the small slotted screwdriver to press the corresponding button of cable groove. Remove the cable out of the groove and then release the screwdriver.

  • Page 34: Quick Configuration Tool

    4 Quick Configuration Tool 4.1 Overview Quick configuration tool can search current IP address, modify IP address. At the same time, you can use it to upgrade the device. Please note the tool only applies to the IP addresses in the same segment. 4.2 Operation Double click the “ConfigTools.exe”icon, you can see an interface is shown as in Figure 4-1.
  • Page 35 Select the “Open Device Web” item; you can go to the corresponding web login interface. See Figure 4-3. Figure 4-3 If you want to modify the device IP address without logging in the device web interface, you can go to the configuration tool main interface to set. In the configuration tool search interface (Figure 4-1), please select a device IP address and then double click it to open the login interface.
  • Page 36 Figure 4-5 For detailed information and operation instruction of the quick configuration tool, please refer to the Quick Configuration Tool User’s Manual included in the resources CD. eLineTechnology.com...

  • Page 37: Web Operation

    5 Web Operation This series IPC product support the Web access and management via PC. Web includes several modules: monitor channel preview, PTZ control, system configuration, alarm and etc. 5.1 Network Connection Please follow the steps listed below for network connection. Make sure the IPC has connected to the network properly.
  • Page 38 Figure 5-2 If it is your first time to login in, system pops up warning information to ask you whether install control webrec.cab or not after you logged in for one minute. Please click OK button, system can automatically install the control. When system is upgrading, it can overwrite the previous Web too. If you can’t download the ActiveX file, please check whether you have installed the plug-in to disable the control download.
  • Page 39 Figure 5-4 Please refer to the Web Operation Manual included in the resource CD for detailed operation instruction. eLineTechnology.com...

  • Page 40: Faq

    6 FAQ I can not boot up Please click RESET button for at least five seconds to restore the device or can factory default setup. not control the device. SD card hot swap Before draw out SD card, please stop record or snapshot first and then wait for at least 15 seconds to remove the SD card.

  • Page 41: Appendix Toxic Or Hazardous Materials Or Elements

    Appendix Toxic or Hazardous Materials or Elements Component Name Toxic or Hazardous Materials or Elements Cr VI PBDE ○ ○ ○ ○ ○ ○ Circuit Board Component ○ ○ ○ ○ ○ ○ Device Construction Material ○ ○ ○ ○ ○...

This manual is also suitable for:

Ipc-hf3300 seriesIpc-hf3110 seriesIpc-hf3200 seriesIpc-hf3100 series
