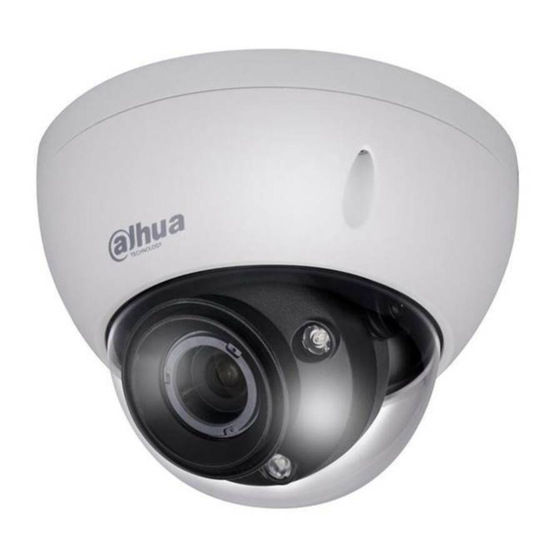

- Page 1 HDCVI IR Vandal-proof Dome Camera User’s Manual Version 1.0.0...
-
Page 2: Table Of Contents
Table of Contents General Introduction ........................1 Overview ........................1 Features ......................... 1 Applicable Models ......................1 Device Framework ........................2 Installation............................ 6 Menu ............................. 8 HDCVI Series DVR Settings ..................8 Menu Operation ......................8 Appendix Ⅰ Maintenance ......................... 11... - Page 3 Welcome Thank you for purchasing our HDCVI camera! This user’s manual is designed to be a reference tool for your system. Please read the following safeguard and warnings carefully before you use this series product! Please keep this user’s manual well for future reference! Important Safeguards and Warnings 1．Electrical safety All installation and operation here should conform to your local electrical safety codes.
- Page 4 Please do not dismantle the device; there is no component which can be fixed by users themselves in the machine. It may cause water leakage or bad image for the device due to unprofessional dismantling. It is recommended to use the device with thunder proof device in order to improve thunder proof effect. The grounding holes of the product are recommended to be grounded to further enhance the reliability of the camera.
-
Page 5: General Introduction
1 General Introduction 1.1 Overview This series HDCVI camera conforms to the HDCVI standard. It supports video signal high- speed long distance transmission without any delay. It can be controlled by the DVR conforming to the HDCVI. 1.2 Features High-performance CMOS image sensor, megapixel definition. -
Page 6: Device Framework
2 Device Framework HAC-HDBWXXXXR HAC-HDBWXXXXR. See Figure 2-1 for the dimension of Figure 2-1 See Figure 2-2 for the structure components of HAC-HDBWXXXXR. Figure 2-2 HAC-HDBWXXXXE See Figure 2-3 for the dimension of HAC-HDBWXXXXE Figure 2-3 See Figure 2-4 for the structure components of HAC-HDBWXXXXE. -
Page 7: Figure
Figure 2-4 HAC-HDBWXXXXE-Z See Figure 2-5 for the dimension of HAC-HDBWXXXXE-Z. Figure 2-5 See Figure 2-6 for the structure components of HAC-HDBWXXXXE-Z. Figure 2-6 HAC-HDBWXXXXF HAC-HDBWXXXXF. See Figure 2-7 for the dimension of... - Page 8 Figure 2-7 See Figure 2-8 for the structure components of HAC-HDBWXXXXF. Figure 2-8 See Figure 2-9 for the cable sequence of aviation port. Figure 2-9...
- Page 9 See Figure 2-10 for the structure components of HAC-HDBWXXXXFP/N. Figure 2-10 Note: There are two kinds of cable for HAC-HDBWXXXXF, please refer to the actual product for more details.
-
Page 10: Installation
3 Installation Dome camera mainly uses ceiling installation; installation surface includes ceiling and wall. Users can install the device with the installation position map and the screws in the accessories bag. Attention: Before the installation, please make sure the installation surface is thick enough to sustain at least 3X weight of the camera. - Page 11 then fasten the self-tapping screws into expansion bolts and lock them, and fix the dome on the installation surface. Step 4 Connect the video output port of device cable to the back-end encoding device, and connect the power port to power supply. Step 5 Adjust lens angle to a proper monitoring location after displaying image on the back- end encoding device, and adjust focal length of the lens to make image clear.
-
Page 12: Menu
4 Menu 4.1 HDCVI Series DVR Settings This HDCVI camera series can adjust OSD menu via coaxial control. After connected the camera to the HDCVI series DVR, from Main Menu->Setting->System->PTZ, you need to select the channel number for access and set control mode as HDCVI and the protocol as DH- SD1. - Page 13 Figure 4-3 See Sheet 4-1 for the details of button functions. Button Function Open menu or confirm Open menu Select menu item 、 Select menu value 、 Adjust lens zoom and auto trigger focus Note: Adjust lens focal length Thesse buttons are only applied for motorized vari- Auto focus under current focal camera.
- Page 14 Figure 4-4 If there is “ ”, click iris “+” or the “Confirm” button in “Menu Operation” interface to go to the 2nd menu. Click “Return” button to go back to the previous menu interface. Note: The operation interface above is the example of HCVRHG-AF series, different rear-end devices have different operation interfaces;...
-
Page 15: Appendix Ⅰ Maintenance
Appendix Ⅰ Maintenance Attention: Please maintain the device according to the following instructions in order to ensure the image effect and long-term stable operation of the device. Maintenance for lens and mirror surface The lens and mirror surface are covered with antireflection coating, so it may produce hazardous substance and lead to performance reduction or scratch, dimness etc when it is stained with dust, grease, fingerprint and so on, please refer to the following methods to deal with once dirt is found:... - Page 16 Note This manual is for reference only. Slight difference may be found in the user interface. All the designs and software here are subject to change without prior written notice. All trademarks and registered trademarks mentioned are the properties of their respective owners.
