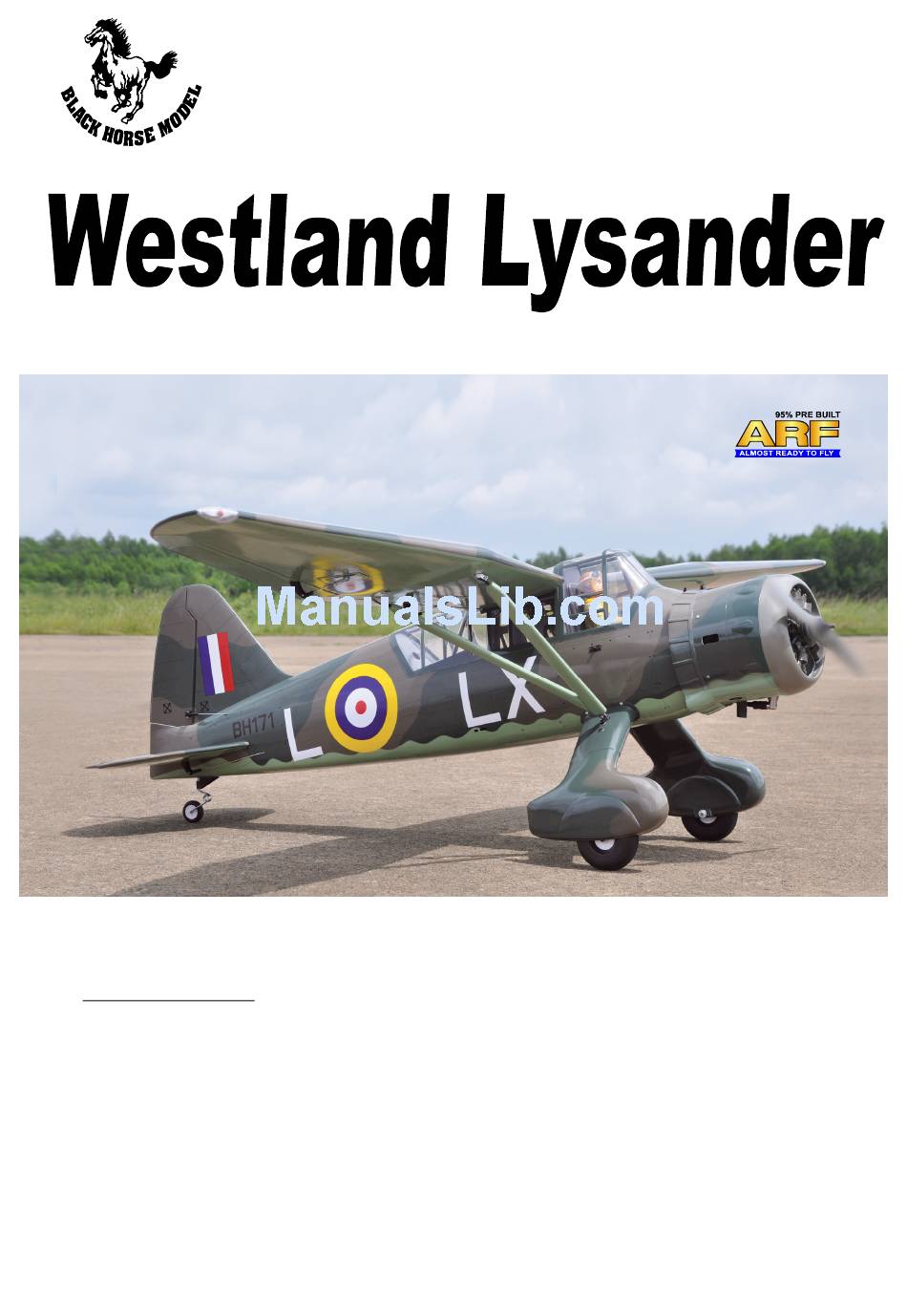

Black Horse Model BH180 Instruction Manual Book
Black Horse Model BH180 Instruction Manual Book

Black Horse Model BH180 Instruction Manual Book

Scale 1:6 glow and ep
Hide thumbs Also See for BH180:

Advertisement

Quick Links

Scale 1:6
ALL BALSA - PLY WOOD CONSTRUCTION.
COVERED IN A HEAT-SHRINK FILM WITH PRINTED.
95% ALMOST READY TO FLY
SPECIFICATION:
- Wingspan: 2,540mm (100in).
- Length: 1,600mm (63in).
- Weight: 6.8 - 7.1kg (14.96 - 15.62 lbs).
- Wing area: 68.6 dm .
- Wing loading: 99.13g/dm .
- Wing type: Naca Airfoil.
- Servo mount: 42mm x 21mm.
- Gear type: Aluminium Hi-grade for main gear
and spring wire for tail gear (included).
Instruction Manual Book
2
2
Item code: BH170.
Glow and EP
Parts listing required (not included):
- Radio: 06 channels.
- Servo: 08 servos.
- Engine: 30 - 40 cc gas.
- Motor: Brushless outrunner 2500 - 3200W, 250KV.
- Propeller: Suit with your engine.
Recommended Motor
and Battery set up
(not included):
- Motor: RIMFIRE.1.60.
- Lipo cell: 12 cells 4,000-5,500mAh.
- Receiver battery: 6V/ 1200mAh.
- ESC: 120A
.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BH180 and is the answer not in the manual?

Questions and answers

Summary of Contents for Black Horse Model BH180

  • Page 1 Instruction Manual Book Item code: BH170. Scale 1:6 Glow and EP ALL BALSA - PLY WOOD CONSTRUCTION. COVERED IN A HEAT-SHRINK FILM WITH PRINTED. 95% ALMOST READY TO FLY SPECIFICATION: Parts listing required (not included): - Radio: 06 channels. - Wingspan: 2,540mm (100in). - Servo: 08 servos.
  • Page 2: Table Of Contents

    Instruction manual WESTLAND LYSANDER Item code: BH170 TABLE OF CONTENTS Symbols used throughout this instruction Installing the main gear ....17 manual, comprise: ......2 Installing the tail gear .
  • Page 3: Warranty

    The the use or misuse of Black Horse Model products. By the model will only be strong and fly well if you complete your...
  • Page 4: Parts Listing (Not Included)

    Instruction manual WESTLAND LYSANDER Item code: BH170 PARTS LISTING (NOT INCLUDED). Servo extension leads....pcs. 540mm ..2 pcs. 220mm ..4 pcs. Engine: 33cc Gas. 190mm ..2 pcs. Propeller. Suit with your engine. Motor: RIMFIRE.1.60 LiPo. 6S - 22.2V- 4,000 - 5,500mAh. 2 Packs 8 servos.
  • Page 5 Instruction manual WESTLAND LYSANDER Item code: BH170 : Fuselage. ood - motor mount Wing panel ( 2a, 2b . luminium landing gear (13a, 13b) Horizontal stabilizer ( 3a, 3b Wheel pants (14a, 14b) ertical stabilizer : Wheels. Aluminium wing dihedral brace. : Aluminium tube horizontal stabilizer : Cockpit fuselage ( 7a, 7b...
  • Page 6: Wing Plastic Light

    Instruction manual WESTLAND LYSANDER Item code: BH170 WING PLASTIC LIGHT INSTALLING THE AILERONS AND FLAPS. Bottom view...
  • Page 7: Installing The Ailerons And Flaps Servos

    Instruction manual WESTLAND LYSANDER Item code: BH170 1) Test fit the ailerons to the wing with the hinges. If the hinges don’t remain centered, stick a pin through the middle of the hinge to hold it in position. Temporary pin to keep hinge centered.
  • Page 8: Installing The Control Horns And Linkages

    Instruction manual WESTLAND LYSANDER Item code: BH170 2 x 10mm Screw Warning! - - - - 16 Flap Aileron Aileron and flap servos. approx.16mm 2x10mm Screw For Flap. For Flap. 1.5mm For Aileron. For Aileron. Screw 1.5mm 1.5mm For Aileron. Tie the string.
  • Page 9 Instruction manual WESTLAND LYSANDER Item code: BH170 Horn Horn 3x25mm 3x25mm 3mm Nut 3x12mm Spring Secure Push rod Horn Servo arm...
  • Page 10: Installing The Fuselage Servos

    Instruction manual WESTLAND LYSANDER Item code: BH170 INSTALLING THE FUSELAGE SERVOS 1) Install the rubber grommets and brass collets into the elevator, rudder and throttle servos. Test fit the servos into the servo tray. Trim the tray if necessary to fit your servos. 2) Mount the servo to the tray using the mounting screws provided with your radio system.
  • Page 11: Installing The Engine Mount

    Instruction manual WESTLAND LYSANDER Item code: BH170 INSTALLING THE ENGINE MOUNT THERE ARE TWO OPTIONS: 1. ELECTRIC MOTOR 2. ENGINE MOUNT. OPTION 1: INSTALLING THE ELECTRIC MOTOR (EP VERSION) 5mm Washer 10x45mm Aluminum - - - - - - - - 4 - - - - - 4 5mm Washer 10x40mm Aluminum...
  • Page 12: Installing The Engine

    Instruction manual WESTLAND LYSANDER Item code: BH170 Zip tie 5 mm Spring Washer 10x45mm 5mm Washer 5x70mm 152mm OPTION 2: INSTALLING THE ENGINE INSTALLING THE FUEL TANK. The stopper has been pre-assembled at the 4) Carefully bend the third nylon tube down at a 45 factory.
  • Page 13 Instruction manual WESTLAND LYSANDER Item code: BH170 Be sure to equip Not included. air vent pipe. Do not secure the tank into place permanently Tygon tubing (Gas). And silicone tubing (Methanol). until after balancing the airplane. You may need to remove the tank to mount the battery in the fuel tank To carburetor compartment.
  • Page 14: Installing The Throttle

    Instruction manual WESTLAND LYSANDER Item code: BH170 152mm Pushrod choke Pushrod Gas INSTALLING THE THROTTLE direction. When the throttle stick is moved forward from idle to full throttle, the throttle barrel should Connector - - - - 1 also open and close using this motion. If not, reverse the direction of the servo, using the transmitter.
  • Page 15: Mounting The Cowl

    Instruction manual WESTLAND LYSANDER Item code: BH170 Adjust the throttle input (transmitter throttle 4x4mm stick), throttle trim movement and the 2x10mm carburattor opening to the suitable position and screw in the 4x4mm set screw. Linkage stopper Screw Pushrod wire Fuselage top side Throttle servo MOUNTING THE COWL Remove the muf f ler and needle valve assembly...
  • Page 16 Instruction manual WESTLAND LYSANDER Item code: BH170 Enlarging the holes through the cowl will prevent the fiberglass from splitting when the mounting screws are installed. Slide the cowl back over the engine and secure it in place using four screws. Install the muffler.
  • Page 17: Installing The Main Gear

    Instruction manual WESTLAND LYSANDER Item code: BH170 INSTALLING THE MAIN GEAR 115mm Wheels. 5x50mm Cap Screw 4mm Spring Washer - - - - - - - - - - - 4 4x20mm Cap Screw 5mm Nut 5mm Nut - - 6 - - 6 - - - - - 4 5mm Washer...
  • Page 18 Instruction manual WESTLAND LYSANDER Item code: BH170 Secure the gear to the fuselage. Fuselage Bottom side. 4x20mm Screw 3x10mm 3x10mm 2.5mm...
  • Page 19: Installing The Tail Gear

    Instruction manual WESTLAND LYSANDER Item code: BH170 INSTALLING THE TAIL GEAR 4mm Colar - - 1 3x15mm Screw - - - - - 2 Fuselage Bottom side Secure 3x15mm Screw 2.5mm Fuselage top side INSTALLING HORIZONTAL STABILIZER 1) Elevators are installed the same way as the aileron before (see page 6).
  • Page 20 Instruction manual WESTLAND LYSANDER Item code: BH170 - Attach the aluminium tube into the fuselage. - Attach the stabilizer to the fuselage. Top side Bottom side Horn Elevator pushrod...
  • Page 21: Installing Vertical Stabilizer

    Instruction manual WESTLAND LYSANDER Item code: BH170 Connectors are installed the same way as the t hrottle (see page 15). Fuselage top side Elevator pushrod Elevator servo Connector Elevator servo Connector Elevator servo INSTALLING VERTICAL STABILIZER 100mm Push rod - - - 1 Horn - - - 1 3x25mm Cap Screw...
  • Page 22 Instruction manual WESTLAND LYSANDER Item code: BH170 Rudder Horn Rudder pushrod...
  • Page 23: Installing The Switch, Receiver And Battery

    Instruction manual WESTLAND LYSANDER Item code: BH170 Connectors are installed the same way as the t hrottle (see page 15). Connector Rudder pushrod Rudder Rudder servo Fuselage top side Connector Rudder servo Rudder servo INSTALLING THE SWITCH, RECEIVER AND BATTERY . INSTALLING THE SWITCH Plug the servo leads and the switch lead into the receiver.
  • Page 24: Installing Cockpit Fuselage

    Instruction manual WESTLAND LYSANDER Item code: BH170 Switch Fuselage top side Switch Receiver Battery Zip tie Battery INSTALLING COCKPIT FUSELAGE Position the canopy so the rear frame on the canopy is aligned with the rear edge of the cockpit opening. Use canopy glue to secure the canopy to the canopy hatch.
  • Page 25 Instruction manual WESTLAND LYSANDER Item code: BH170 Open/Close Canopy glue Adhesive tape. Canopy glue...
  • Page 26: Wing Struts Set

    Instruction manual WESTLAND LYSANDER Item code: BH170 Adhesive tape. Adhesive tape. WING STRUT SET 3x12mm Cap Screw 4x6mm Cap Screw - - - - - - 8 - - - - - - 4 3mm Spring Washer - - - - - - 4 - - - - - - - 4 - - - - - - - 2 - - - - - - - 2...
  • Page 27: Installing The Wing To The Fuselage

    Instruction manual WESTLAND LYSANDER Item code: BH170 3x12mm Screw 3x12mm Screw Bottom view INSTALLING THE WING TO THE FUSELAGE 19x542mm Aluminium tube. *** Test fit the aluminium tube dihedral brace - - - - 1 into each wing haft. The brace should slide in easily.
  • Page 28 Instruction manual WESTLAND LYSANDER Item code: BH170 Attach the wings to the joiner tube and secure the wing panels to the fuselage. Main wing must be inserted and attached completely before fixing with screw.
  • Page 29 Instruction manual WESTLAND LYSANDER Item code: BH170...
  • Page 30: Installing The Propeller

    Instruction manual WESTLAND LYSANDER Item code: BH170 INSTALLING THE PROPELLER...
  • Page 31: Balancing

    Instruction manual WESTLAND LYSANDER Item code: BH170 2) If one side of the wing fall, that side is heavier BALANCING than the opposite. Add small amounts of lead weight to the bottom side of the lighter wing half's It is critical that your airplane be balanced wing tip.
  • Page 32: For Your Radio Installation Basic Connection For Airplane And Adjustment Of Servos

    Instruction manual WESTLAND LYSANDER Item code: BH170 FOR YOUR RADIO INSTALLATION BASIC CONNECTION FOR AIRPLANE AND ADJUSTMENT OF SERVOS Example of connection For more information, refer to radio system instruction manual. Follow instruction manual of Engine and Battery. Aileron Servo Aileron Engine Aileron Servo...
  • Page 33: Main Gear Dimensional Detail

    Instruction manual WESTLAND LYSANDER Item code: BH170 MAIN GEAR DIMENSIONAL DETAIL 23mm 35mm 66.5mm 210mm TAIL GEAR DIMENSIONAL DETAIL 28mm Wheel 50mm...
  • Page 35 I/C FLINGT WARNINGS Always operate in open areas, away from NEVER fly near power lines,aerials or ALWAYS adjust the engine from behind factories, hospitals, schools, buildings other dangerous areas including airports, the propeller, and do not allow any part of and houses etc.
  • Page 36 I/C FLINGT GUIDELINES Operate the control sticks on the ALWAYS land the model INTO When ready to fly, first extend transmitter and check that the the wind, this ensures that the the transmitter aerial. control surfaces move freely and in model lands at the slowest possible the CORRECT directions.
