ANALOG - ANALOG OUTPUT PARAMETERS (DAT 400/A ONLY)
FULL SCALE
F-SCaL
It's the weight corresponding to the full scale of the analog output
that can be different from the capacity of the weighting system.
Value to be set from 000 to 99999.
Default: the same value of the CAPACITY parameter
ANALOG OUTPUT OPERATION MODE
NodE
Selection of the value to be associated to the analog output, corre-
sponding to the net weight, gross weight or the peak value.
Value to be selected:
NET
GROSS
PEAK
Default: GROSS
ZERO VALUE OF THE ANALOG OUTPUT
AnZEro
Analog value related to the full scale of the analog output to be
subtracted.
ANALOG OUTPUT TEST PROCEDURE
tEst
With this procedure it is possible to check the operation of the analog
output, causing the output value through the use of the keyboard.
The display shows the percentage of the output value than the full
scale set.
FUN
Use the SET and
ANALOG OUTPUT RANGE
ranGE
Select the analog output range.
Value to be selected:
0÷20mA
4÷20mA
0÷10Vdc
0÷5Vdc
Default: 4÷20mA
Page 36
keys to increase/decrease the output value.
FUN

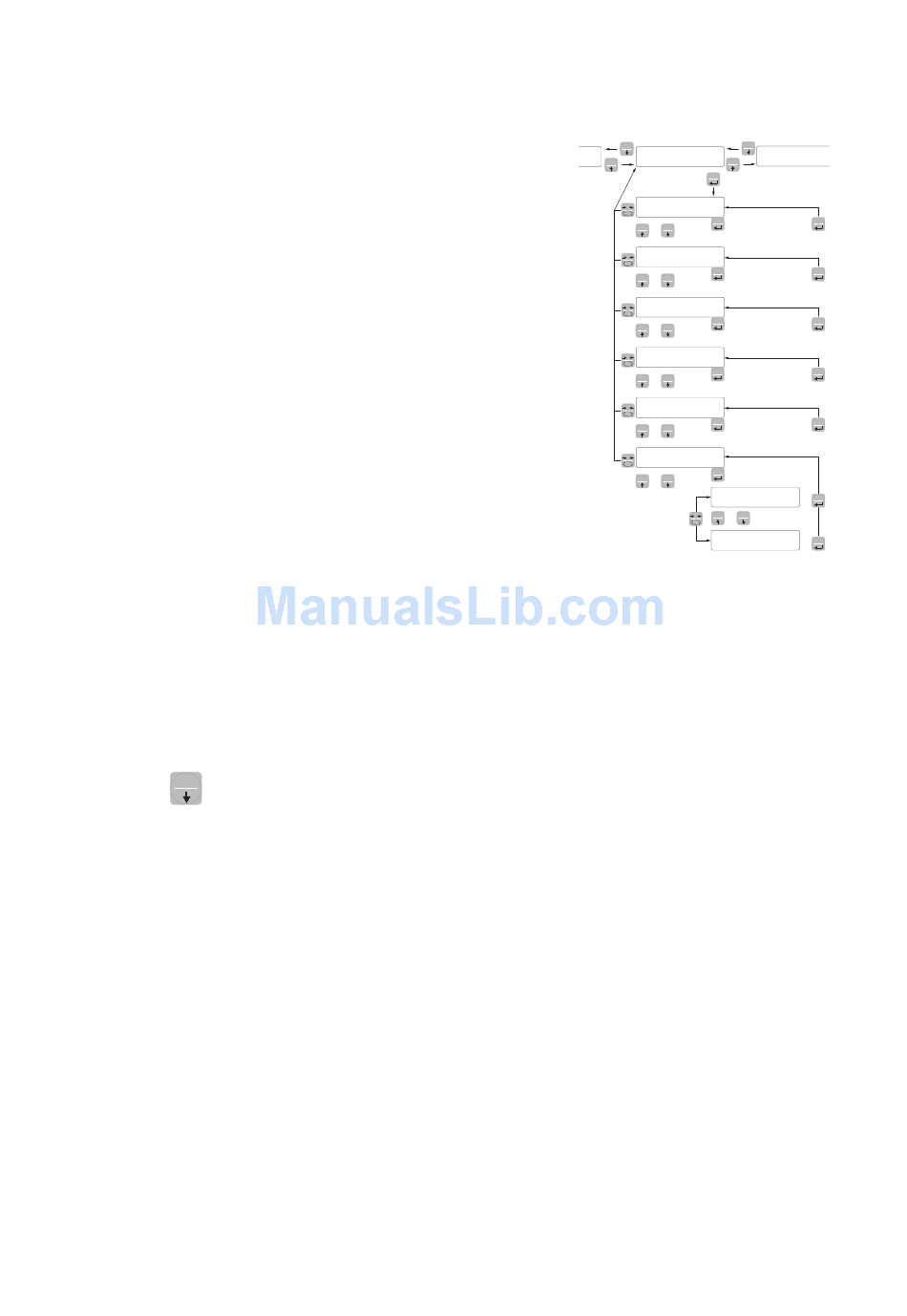

SEr1aL AnaLoG
SET
f-sCaL
0
SET FUN
NodE
0
SET FUN
AnzEro
0
SET FUN
tEst
0
SET FUN
ranGE
0
SET FUN
offsEt
0
SET FUN
FUN
ConF1G
SET
PRG
Enter Value
PRG PRG
Select Value
PRG PRG
Enter Value
PRG PRG
Select Value
PRG PRG
Select Value
PRG PRG
PRG
-0-
PRG
Set Offset
SET FUN
0
-Fs-
PRG
