Precise Instrument DAT 400 Technical Manual page 32

SETPOINT 2 OPERATION MODE
NodE 2
Select 4 operation criteria of the setpoint 2 in sequence:
NET The relay output is active in Net Weight mode
GROSS The relay output is active in Gross Weight mode
PEAK The relay output is active in Peak mode
Default: GROSS
Comparison with the net weight, gross weight or the peak. In this
last case, the comparison is made with the last peak value acquired,
even when the peak function is not active.
N.O. The relay 2 is normally open
N.C. The relay 2 is normally closed
Default N.O.
POS. The output is operating with positive weight
NEG. The output is operating with negative weight
Default: POS
NORML Output 2 is active with unstable weight
STABL Output 2 is active with stable weight
Default: Norml
HYSTERESIS OF THE SETPOINT 2
Hyst-2
Hysteresis value than the setpoint value set
Value: from 0 to 999
Default: 2
SETPOINT 2 TEMPORIZATION
t1NEr2
Value of time, in tenths of a second, during which, when the weight
value set is overcome, the output relative to setpoint 2 remains
enabled.
After this time, even if the weight value is still above the setpoint, the
output is automatically disabled.
The function is not activated if the programmed time is equal to zero.
Value: from 0 to 999
Default: 0
SETPOINT 2 DELAY
dELay2
Value of time, in tenths of a second, after which, when the weight va-
lue set is overcome, the output relative to setpoint 2 remains enabled.
The function is not activated if the programmed time is equal to zero.
Value: from 0 to 999
Default: 0
Page 30

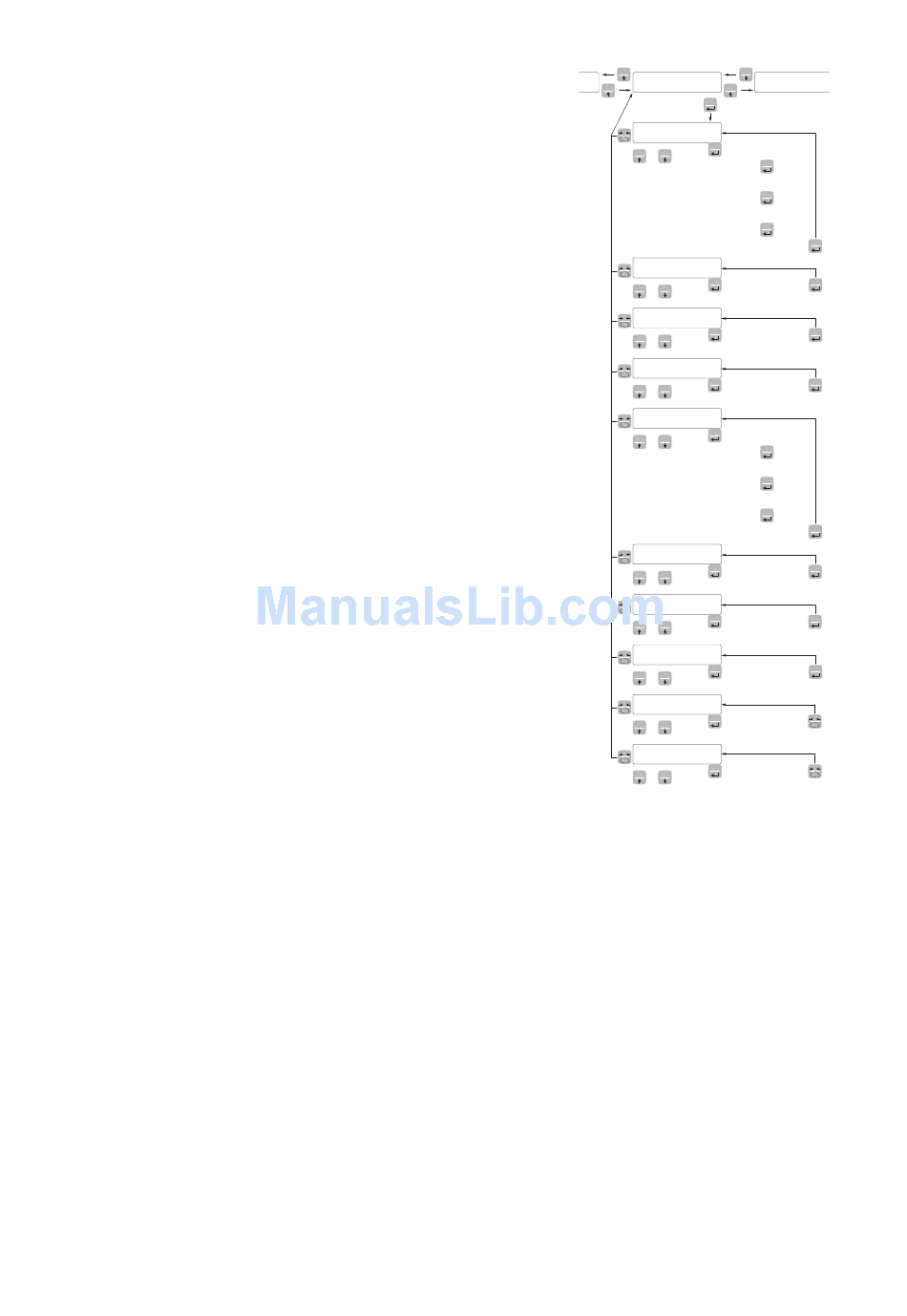

FUN
ParaN In-oUt
SET
NodE 1
0
SET FUN
Hyst-1
0
SET FUN
t1NEr1
0
SET FUN
dELay1
0
SET FUN
NodE 2
0
SET FUN
Hyst-2
0
SET FUN
t1NEr2
0
SET FUN
dELay2
0
SET FUN
tEst1n
0
SET FUN
tstoUt
0
SET FUN
FUN
SEr1aL
SET
PRG
Select Value
PRG
PRG
Select Value
PRG
Select Value
PRG
Select Value
PRG
Enter Value
PRG PRG
Enter Value
PRG PRG
Enter Value
PRG PRG
Select Value
PRG
PRG
Select Value
PRG
Select Value
PRG
Select Value
PRG
Enter Value
PRG PRG
Enter Value
PRG
PRG
Enter Value
PRG PRG
Read and
PRG 0
change status
Read and
PRG 0
change status
