CAN_L
2
CAN_H
4
V-
1
V+
5
SHIELD
3

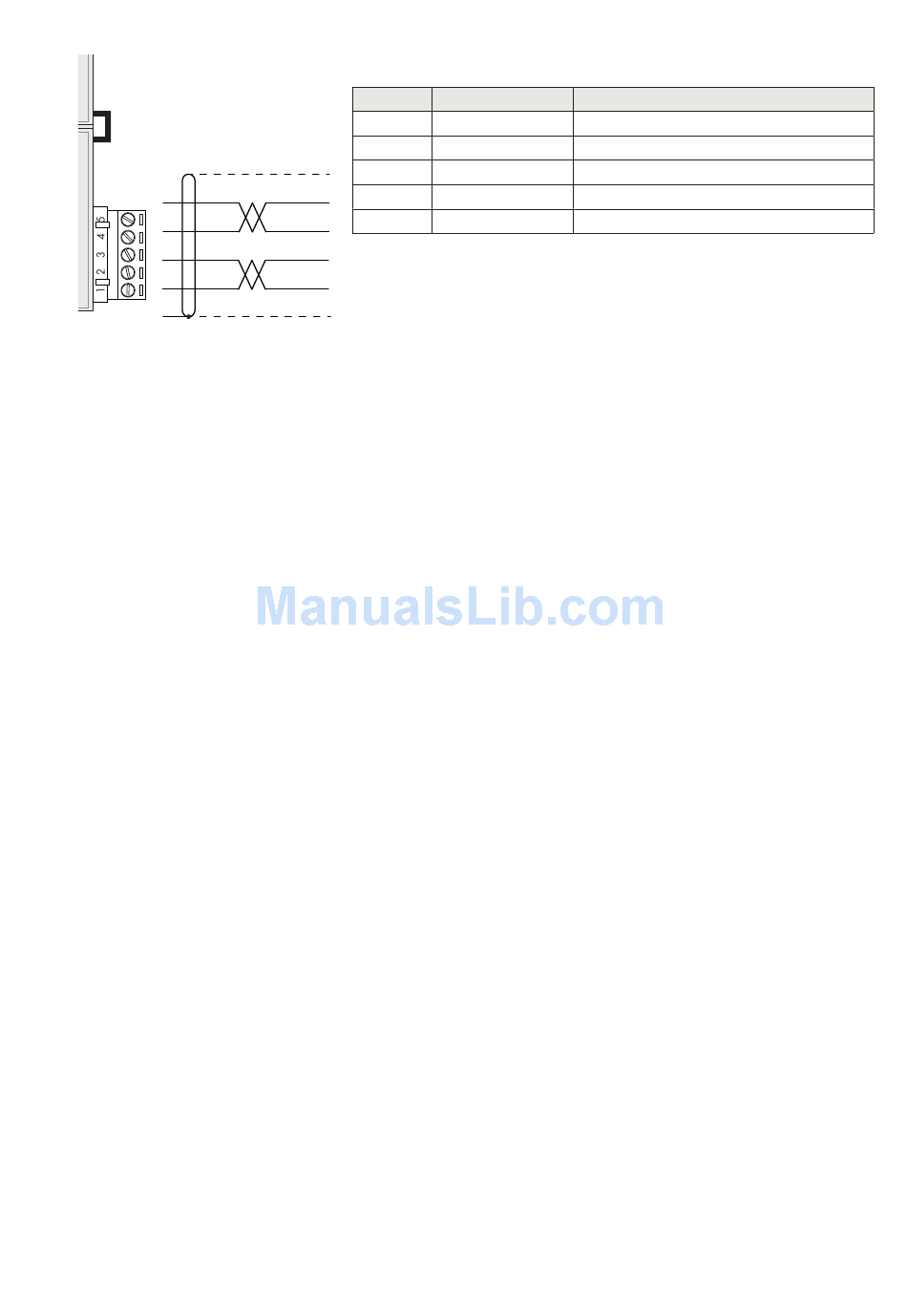

DEVICENET CONNECTION (OPTIONAL)
Pin Signal
1 V-
2 CAN_L
3 SHIELD
4 CAN_H
5 V+
To connect to the DeviceNet master, use a standard DeviceNet cable
or shielded twisted-pair cable as shown on the diagram.
The cable must not be channeled with power cables. For reliable
operation of the Fieldbus, should be used as a line termination of
121 Ω value between the terminal CAN_L and CAN_H.
For the configuration of the card is available ESD file that must be
installed in the master.
Description
Negative power bus
CAN low bus line
Shield
CAN high bus line
Positive power bus
