Precise Instrument DAT 400 Technical Manual page 26

RECEIVING DATA FUNCTION
UpLoad
Receiving function from a serial of a file containing the setup data
that will be automatically set in the instrument.
SENDING DATA FUNCTION
dnLoad
Sending function from a serial of a file with the content of the setup
memory of the instrument.
EXAMPLE OF SETTING/CALIBRATION
To weigh a tank, with empty weight of 750 kg and with a capacity
of 1000 liters, containing a product with a specific gravity of 1.33
to read the weight with a display resolution of 0.2 Kg.
Before proceeding with the configuration, make sure that the load
cells are connected properly to the unit and the tank is empty and
set the parameters.
They are used:
Nr 3 load cells with capacity of 1000 kg
Sensitivity of respectively 2.0015, 2.0008 and 1.9998 mV/V (ave-
rage value = 2.0007 mV/V)
Set the following values in the configuration parameters:
CapaC = 3000
2.0007
sEnsit
1500
t
NE
0
dEad L
0.2
dsPd1J
Make sure that the value read in the SIGNL parameter corresponds
with the calibration weight of the system according to the following
proportion:
3000:2.0007=750:X
Where X is the value of the signal expressed in mV/V corresponding
to the theoretical value of the weight of the empty tank. The value
should be about 0.5 mV/V.
Proceed to the calibration described in the following paragraph,
or you can exit the configuration menu by saving the data entered.
The instrument should indicate the value corresponding to the weight
of the empty tank (for example 756.8).
Re-access the configuration menu and enter the weight value read
in the dEad L parameter and enter the value 756.8.
Quit the configuration menu by saving the data.
For greater accuracy, prepare some sample weights or the pre-
weighed material on a certified system and calibrate as described
in the next paragraph.
Page 24

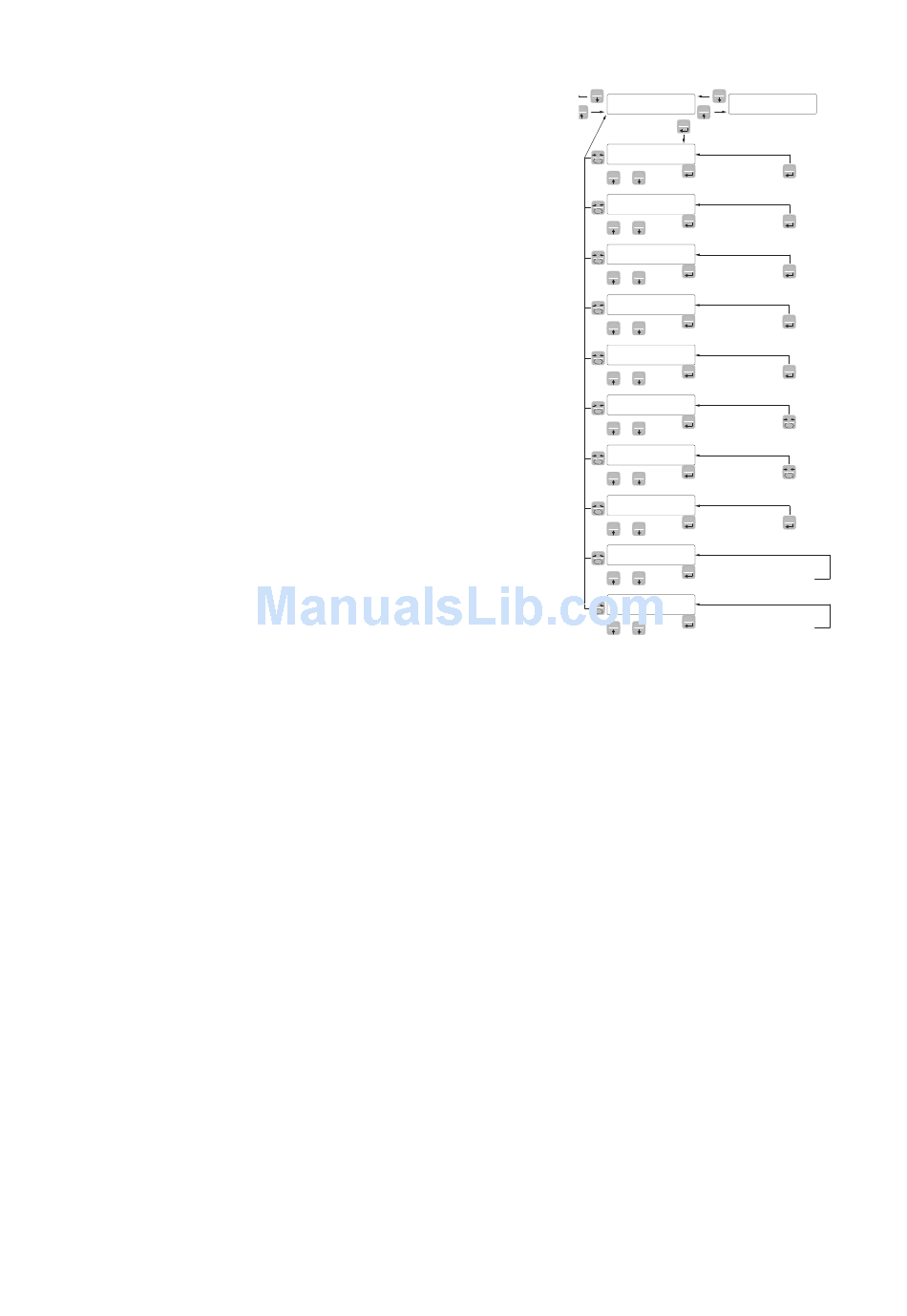

FUN
AnaLog Conf1G
SET
CapaC
0
SET FUN
SEns1t
0
SET FUN
nEt
0
SET FUN
dEad L
0
SET FUN
dspd1J
0
SET FUN
S1GnaL
0
SET FUN
CoUnts
0
SET FUN
opNodE
0
SET FUN
UpLoad
0
SET FUN
dnLoad
0
SET FUN
FUN
CaL1br
SET
PRG
Enter Value
PRG PRG
Enter Value
PRG PRG
Enter Value
PRG
PRG
Enter Value
PRG PRG
Select Value
PRG PRG
Read Value
PRG 0
Read Value
PRG 0
Select Value
PRG
PRG
Receive setup data
PRG
from serial port
Transmit setup data
PRG
to serial port
