Page 8
ENGLISH

Section 2. General Description

HEATER
CELL
The cell must be installed
as the last piece of equipment in
the circulation plumbing system
just before the pool.

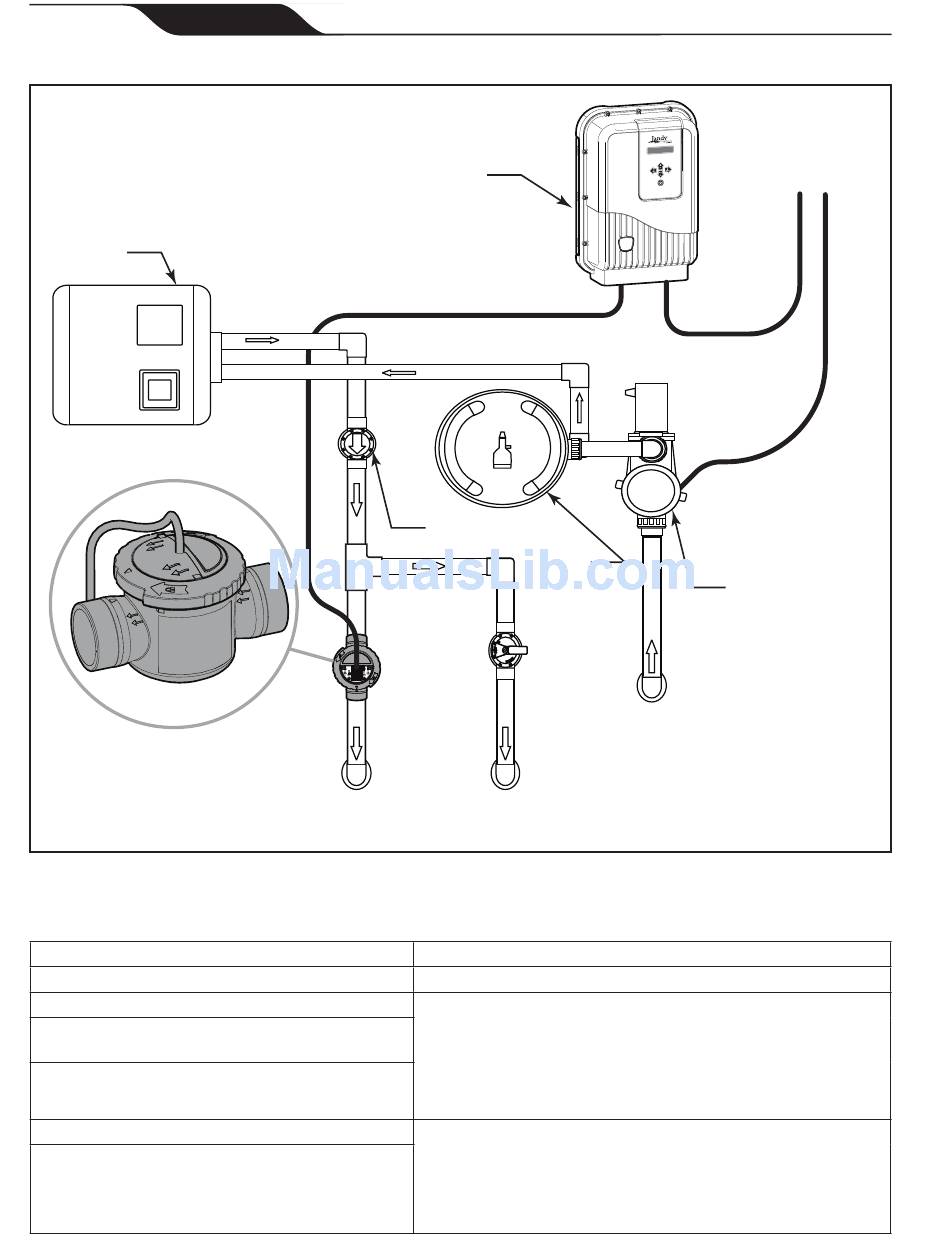

Figure 1.
Example of Installation
2.1
Product Specifi cations
Maximum Operating Pressure: 50 psi
Minimum Flow Rate: 76 lpm (20 gpm)
Required Salt Level: 3.0 gpl (3,000 ppm)
Maximum water volume treated:
132,000 L (35,000 gal.)
Chlorine Output:
0.42 kg (0.93 lbs) per day
Input Voltages: 240 VAC
Input Current @ 240 VAC: ~1 A
Jandy
Pro Series TruClear
®
POWER PACK
CHECK VALVE
RETURN
WATER FEATURE /
IN FLOOR CLEANER
Input Freq: 60 Hz
Output Voltage: 25V DC (max)
Dimensions:
Power Pack (L x W x H):
25.4 cm x 11.4 cm x 33 cm (10 in. x 4.5 in. x 13 in.)
Electrolytic Cell (L x W x H):
16.5 cm x 14 cm x 30.5 cm (6.5 in. x 5.5 in. x 12 in.)
Weight:
Power Pack: 3.2 kg. (7 lbs)
Electrolytic Cell: 0.9 kg (2 lbs)
|
Chlorine Generating System
Installation & Operation Manual
FILTER
INTAKE
TO COMMON
POWER SOURCE
PUMP
