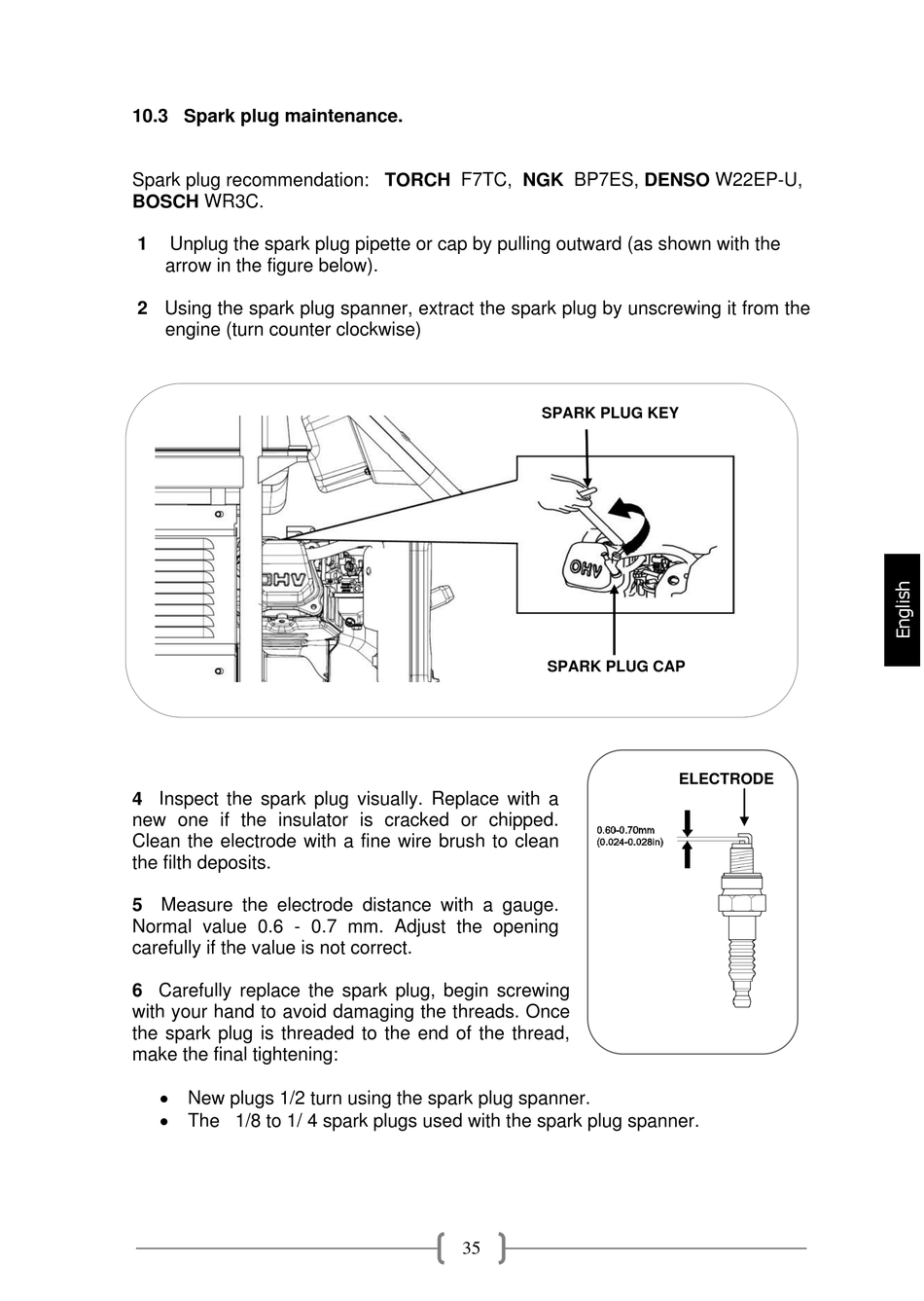

10.3 Spark plug maintenance.
Spark plug recommendation: TORCH F7TC, NGK BP7ES, DENSO W22EP-U,
BOSCH WR3C.
1 Unplug the spark plug pipette or cap by pulling outward (as shown with the
arrow in the figure below).
2 Using the spark plug spanner, extract the spark plug by unscrewing it from the
engine (turn counter clockwise)
4 Inspect the spark plug visually. Replace with a
new one if the insulator is cracked or chipped.
Clean the electrode with a fine wire brush to clean
the filth deposits.
5 Measure the electrode distance with a gauge.
Normal value 0.6 - 0.7 mm. Adjust the opening
carefully if the value is not correct.
6 Carefully replace the spark plug, begin screwing
with your hand to avoid damaging the threads. Once
the spark plug is threaded to the end of the thread,
make the final tightening:
 New plugs 1/2 turn using the spark plug spanner.
 The 1/8 to 1/ 4 spark plugs used with the spark plug spanner.
SPARK PLUG KEY
SPARK PLUG CAP
35
ELECTRODE
