9. Automatic use of GUARDIAN SC-6 model
9.1 Installation of the generator GUARDIAN SC-6 is extremely simple. Both the
maneuvers driver of startup and stop are built into the generator itself so it is not
necessary any external control box.
The generator can be started by a remote signal through normally open contact in
photovoltaic installations. It is imperative that the inverter charger has
available a relay in order to do the start up maneuvers of the generator.

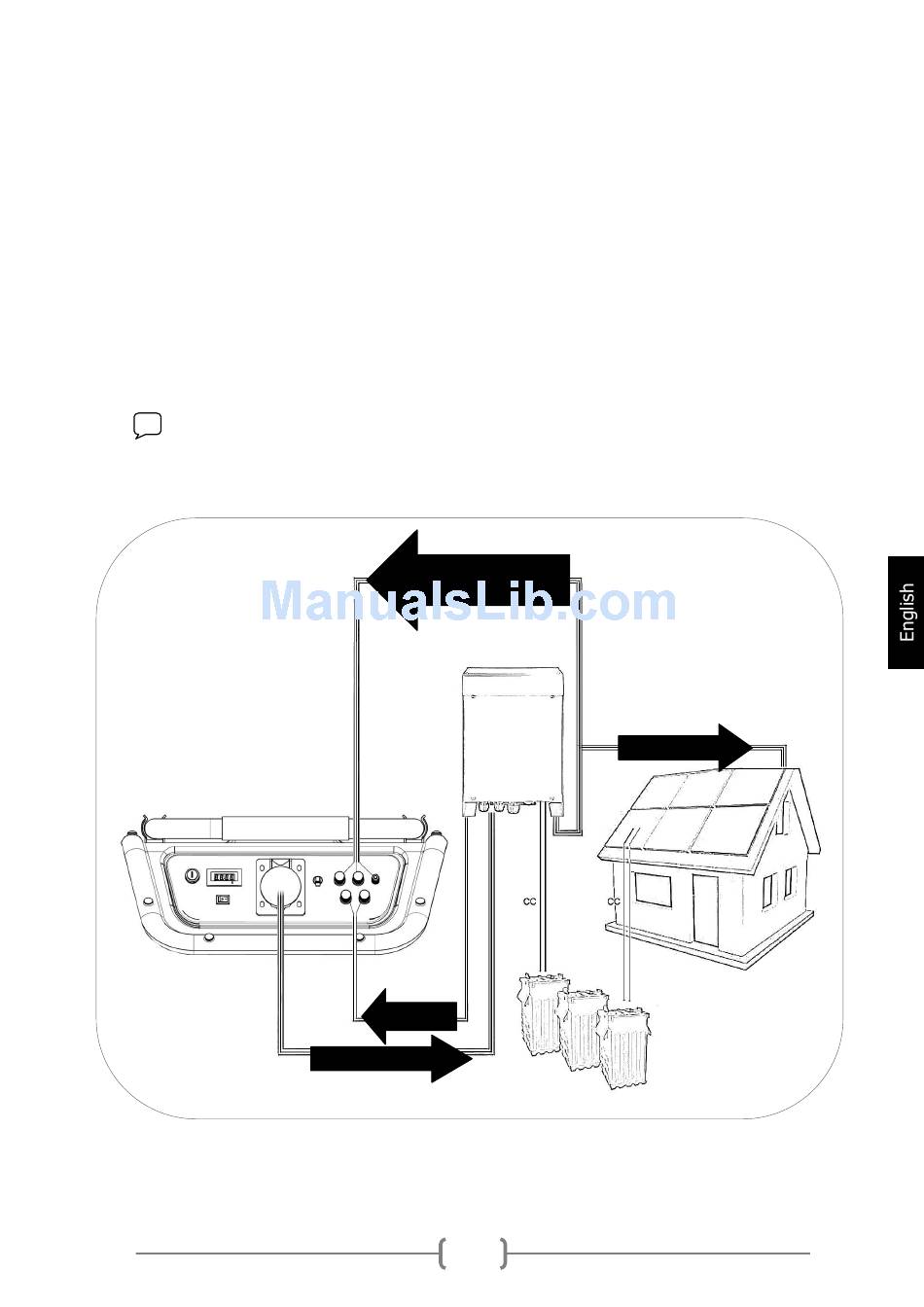

Example of a connection of an off grid photovoltaic installation:
Note: The following diagram is only indicative and as a general idea for
understanding the generator's operation. Consult an installer to perform a correct

installation.

Power input 230 V
Generator's battery
maintenance
INVERTER
CHARGER
SIGNAL
230V GENERATOR
25
230 V TO USES
SOLAR
PANELS
BATTERY
