Valor 725RTB Black Installation Instructions

Riser panel use with valor 700, valor 738 & valor 739 models only

Advertisement

Available languages

Available languages

The 725 Riser is intended to be used on Valor heaters models 700, 738 & 739. Mounting of the 725 does not affect
clearances or other specifi cations listed in the heater installation manuals—see installation manual supplied with the
heater for more information.
The Insert appliance is approved for shimming underneath using combustible material.
Compatible with 700 (G3.5)
709 - 3 sided fl oating trim includes
710 backing plate only
717BPB - Backing plate for Edgemont 716 or 721
719BPB - Backing plate for Edgemont 716 or 721
Compatible with 738/739 (G3)
741, 742, 743, 744, 745 & 772 - Standard insert fronts
746 - Contour trim kit
756 - 3 sided square trim kit
725 is a 2.1/2" high sheet metal riser that fi ts beneath
the fi replace engine and various trims to raise the
heater to cover a higher fi replace opening.
3-15/16"
(100 mm)
4004914-02
© Copyright Miles Industries Ltd., 2016

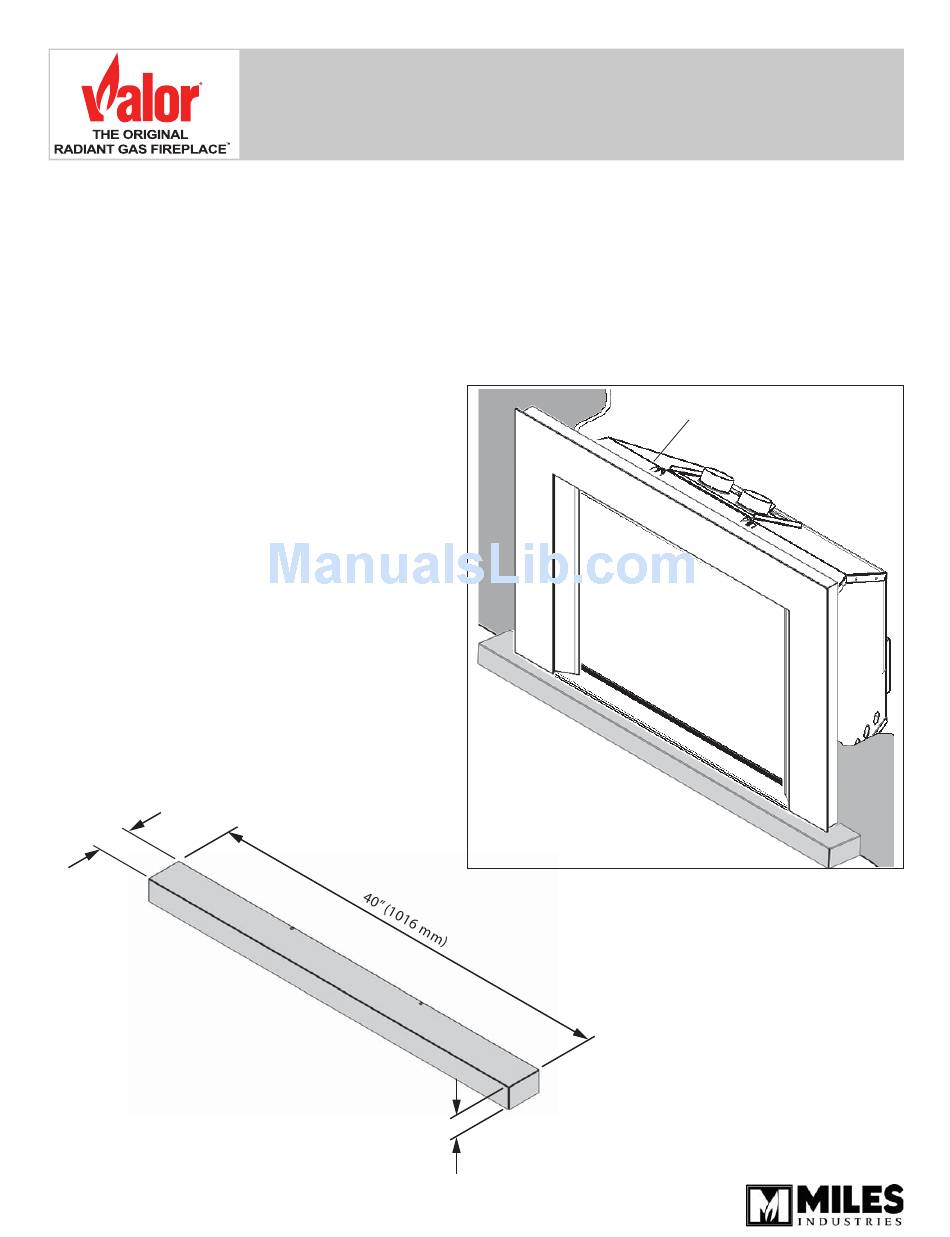

725 Riser Kit
Use with Valor 700, 738 & 739 Models only
Installation Instructions
2-1/2"
(64 mm)

Overview

700/738/739 engine
