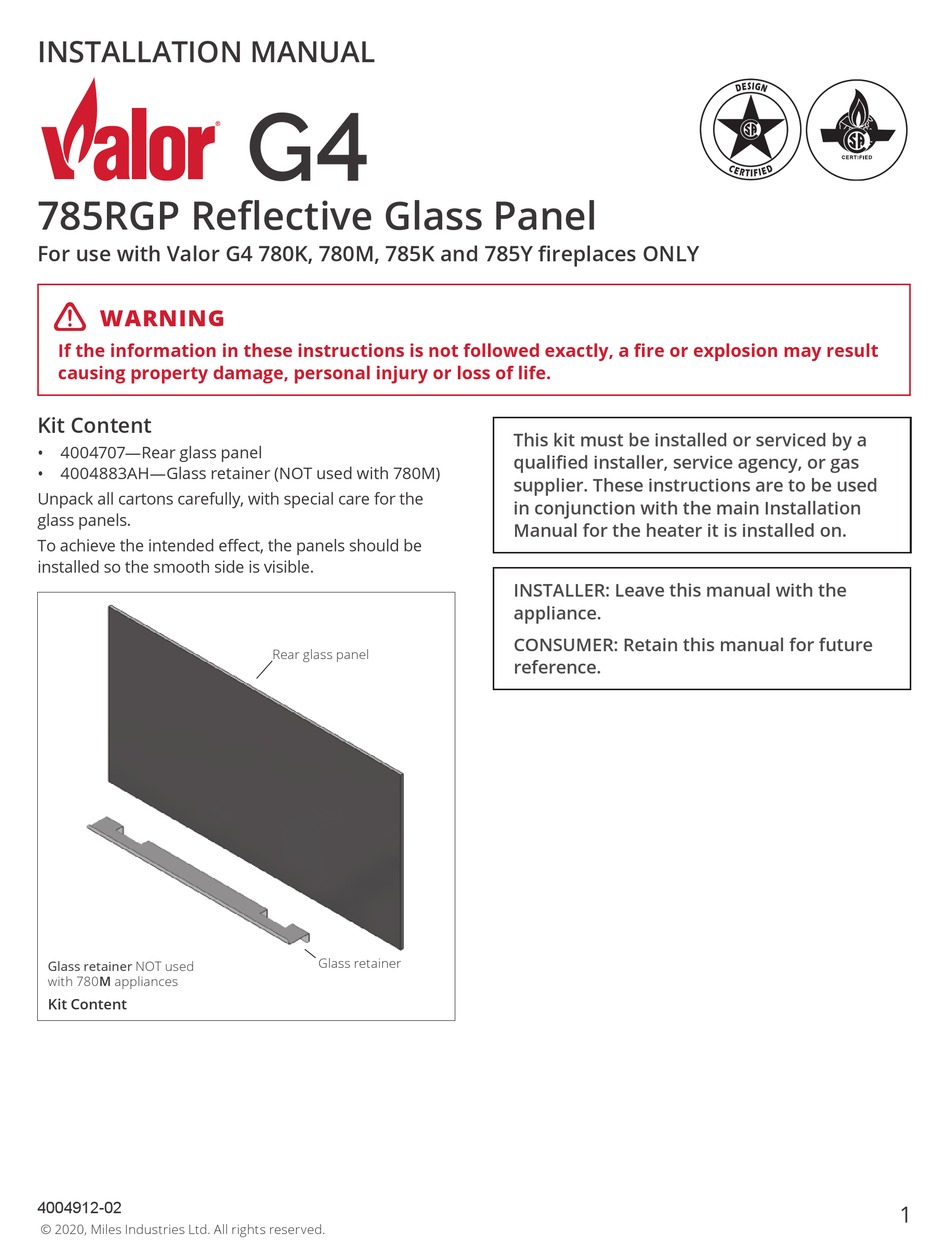

INSTALLATION MANUAL
785RGP Refl ective Glass Panel
For use with Valor G4 780K, 780M, 785K and 785Y fireplaces ONLY
 WARNING
If the information in these instructions is not followed exactly, a fi re or explosion may result
causing property damage, personal injury or loss of life.
Kit Content
• 4004707—Rear glass panel
• 4004883AH—Glass retainer (NOT used with 780M)
Unpack all cartons carefully, with special care for the
glass panels.
To achieve the intended effect, the panels should be
installed so the smooth side is visible.
Glass retainer NOT used
with 780M appliances
Kit Content
4004912-02
© 2020, Miles Industries Ltd. All rights reserved.
G4
Rear glass panel
Glass retainer
This kit must be installed or serviced by a
qualifi ed installer, service agency, or gas
supplier. These instructions are to be used
in conjunction with the main Installation
Manual for the heater it is installed on.
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for future
reference.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the G4 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Valor G4 Series

Summary of Contents for Valor G4 Series

  • Page 1 INSTALLATION MANUAL 785RGP Refl ective Glass Panel For use with Valor G4 780K, 780M, 785K and 785Y fireplaces ONLY  WARNING If the information in these instructions is not followed exactly, a fi re or explosion may result causing property damage, personal injury or loss of life.
  • Page 2 Retrofitting appliance 2. Grab the burner as indicated and gently pull up the rear fi rst and then the front. Be careful not to hook If retrofitting an existing appliance follow the guidelines the pilot hood as you pull the burner up. below according to the appliance’s model.
  • Page 3 Because our policy is one of constant development and improvement, details may vary slightly from those given in this publication. Designed and Manufactured by / for Miles Industries Ltd. 190 – 2255 Dollarton Highway, North Vancouver, B.C., CANADA V7H 3B1 Tel. 604-984-3496 Fax 604-984-0246 www.valorfi replaces.com...

  • Page 4: Guide D'installation

    GUIDE D’INSTALLATION Panneaux de verre 785RGP Pour installation sur les foyers Valor G4 780K, 780M, 785K et 785Y SEULEMENT  AVERTISSEMENT Si les instructions fournies dans le présent guide ne sont pas suivies à la lettre, un feu ou une explosion pourraient résulter et causer des dommages matériels, des blessures ou la mort.
  • Page 5 Installation dans un foyer existant 2. Saisissez le brûleur tel qu’indiqué et tirez-le douce- ment à l’arrière d’abord et ensuite l’avant. Faites Si le panneau est installé dans un foyer existant, suivez attention de ne pas accrocher le capuchon de la les instructions suivantes selon le modèle.
  • Page 6 3. Pour réinstaller le brûleur, insérez ses pattes avant 2. Placez le support du panneau de verre tel qu’in- d’abord et ensuite l’arrière. diqué et fixez-le à l’aide des 2 vis enlevées en 1. Screw Note : Assurez-vous que les pattes à l’avant du brûleur sont bien accro- chées dans leurs sup- Installation du panneau de verre...
