Vertex Standard VXR-9000EV Service Manual page 40

CNTL Unit

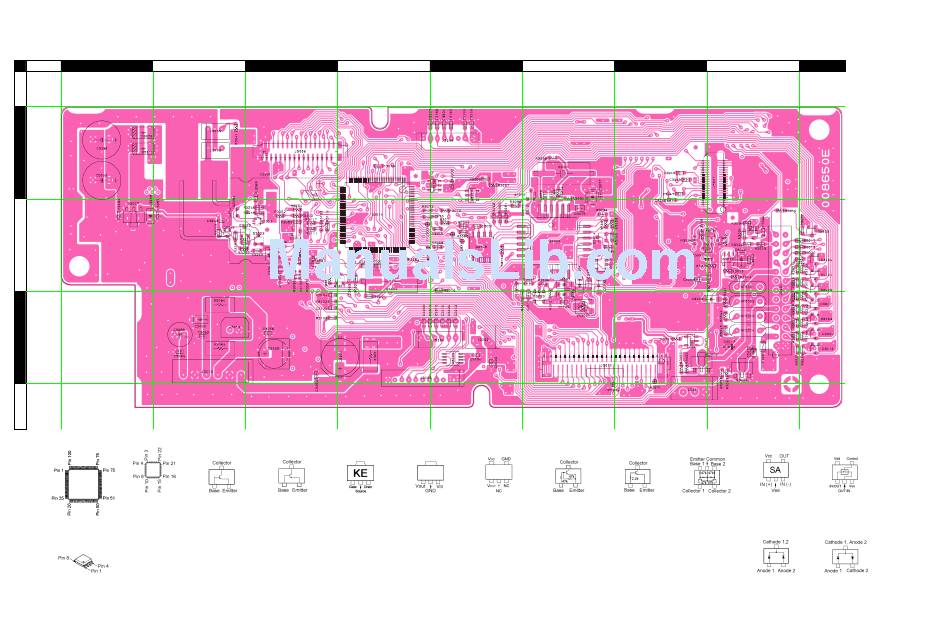

Parts Layout (Side B)
a
1
2
3
4
FX805LG
(Q3020)
HD64F2238BFA
(Q3014)
BR24L32F
(Q3006)
TC4W53FU
(Q3003)
I-4
b c
2SA1586Y (SY) 2SC4116GR (LG) 3SK3065 (LG)
(Q3022, 3054) (Q3017, 3018) (Q3005, 3009)
d e
AN8005M (LG) BD4845FVE DTC144EE (26)
(Q3007) (Q3012) (Q3046, 3052, 3053)
g
f
DTC323TK (H02) FMG2 (G2)
(Q3038) (Q3010, 3011, 3039) (Q3002, 3019, 3023)
h i
TA75S01F (SA) TC7S66FU (E9)
(Q3051)
MC2848 (A6) MC2850 (A7)
(D3023) (D3001, 3003, 3004,
3005, 3006, 3007,
3008, 3009, 3010,
3014, 3015)
