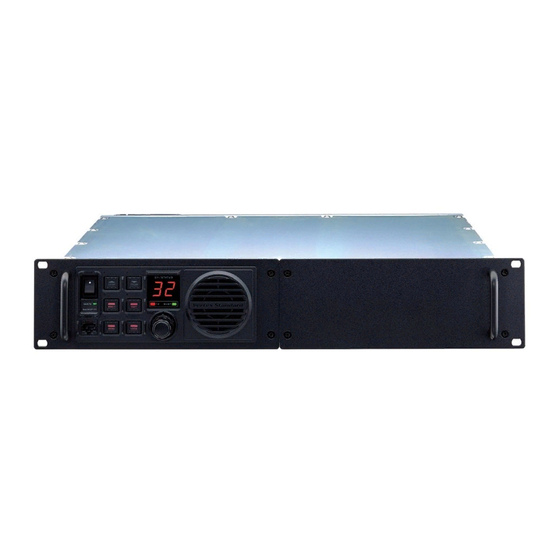

Vertex Standard VXR-9000 Service Manual

Rack Mount Repeater
VXR-9000
Service Manual
©
2010 VERTEX STANDARD CO., LTD.
This manual provides the technical information necessary for servicing the VXR-9000 Rack Mount Repeater.
Servicing this equipment requires expertise in handing surface-mount chip components. Attempts by non-qualified
persons to service this equipment may result in permanent damage not covered by the warranty, and may be illegal
in some countries.
Two PCB layout diagrams are provided for each double-sided board in this transceiver. Each side of the board is
referred to by the type of the majority of components installed on that side ("Side A" or "Side B"). In most cases one
side has only chip components (surface-mount devices), and the other has either a mixture of both chip and leaded
components (trimmers, coils, electrolytic capacitors, ICs, etc.), or leaded components only.
As described in the pages to follow, the advanced microprocessor design of the VXR-9000 allows a complete align-
ment of this transceiver to be performed without opening the case of the radio; all adjustments can be performed from
the personal computer, using with the Vertex Standard VPL-1 Programming Cable and CE60 Software.
While we believe the information in this manual to be correct, Vertex Standard assumes no liability for damage that
may occur as a result of typographical or other errors that may be present. Your cooperation in pointing out any
inconsistencies in the technical information would be appreciated.
After Lot. 31 of this transceiver was assembled using Pb (lead) free solder, based on the RoHS specification.
Only lead-free solder (Alloy Composition: Sn-3.0Ag-0.5Cu) should be used for repairs performed on this apparatus. The
solder stated above utilizes the alloy composition required for compliance with the lead-free specification, and any solder
with the above alloy composition may be used.
Specifications ........................................................... A-1
DSUB 25-pin Accessory Connector ...................... B-1
Exploded View & Miscellaneous Parts ............... C-1
Block Diagram ......................................................... D-1
Connection Diagram ............................................... E-1
Circuit Description .................................................. F-1
Alignment ................................................................ G-1
EC044N90E
Important Note
Contents
Board Units (Schematics, Layouts & Parts)
MAIN Unit .......................................................... H-1
CNTL Unit ............................................................ I-1
PANEL Unit .......................................................... J-1
PA Unit ................................................................. K-1
PA-2 Unit .............................................................. L-1
REG Unit ............................................................. M-1
100 W PA Unit (Option: Version C) ................ N-1
RELAY Unit (Option) ......................................... O-1
