2.1 Preparing the Mac Pro

2. Use the included driver to remove the Torx T8 screw from the end of the SSD, as shown
below. When the screw has been removed, lift the SSD out of the connector and set the
SSD aside. Notes: the screw that was removed in this step will not be used to mount the
Aura SSD; store original screw in a safe place. The Apple SSD can also be installed into
an OWC Envoy Pro enclosure.
OWC Aura SSD for Mac Pro

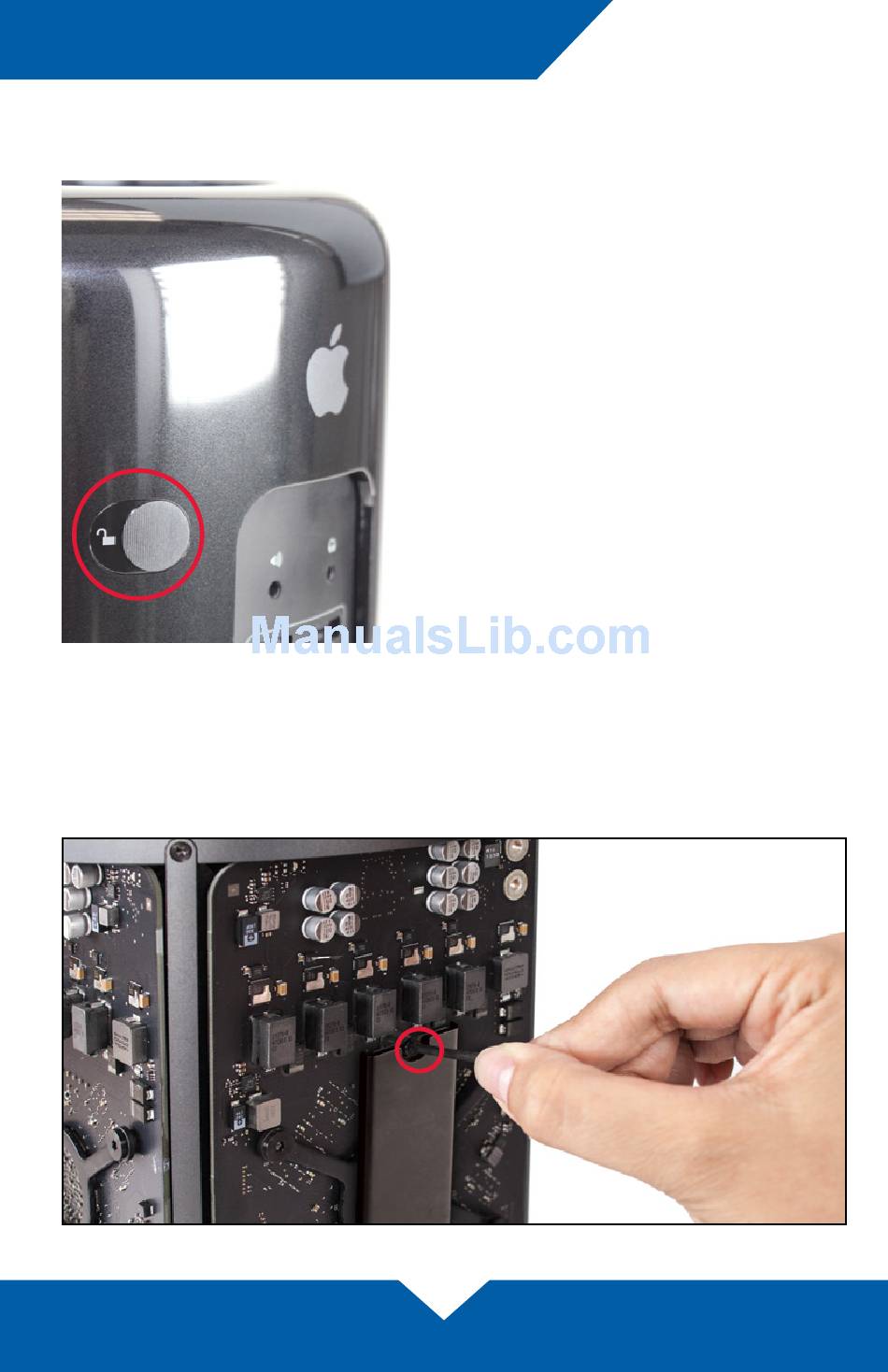

1. Turn off your Mac Pro and unplug all cables,
including the power cable. Make sure the lock
switch on the outer case is set to the unlocked
position (circled at left), then remove the outer
case by lifting it straight up. Set aside the outer
case and proceed to the next step.
2
INSTALLATION
Installation
