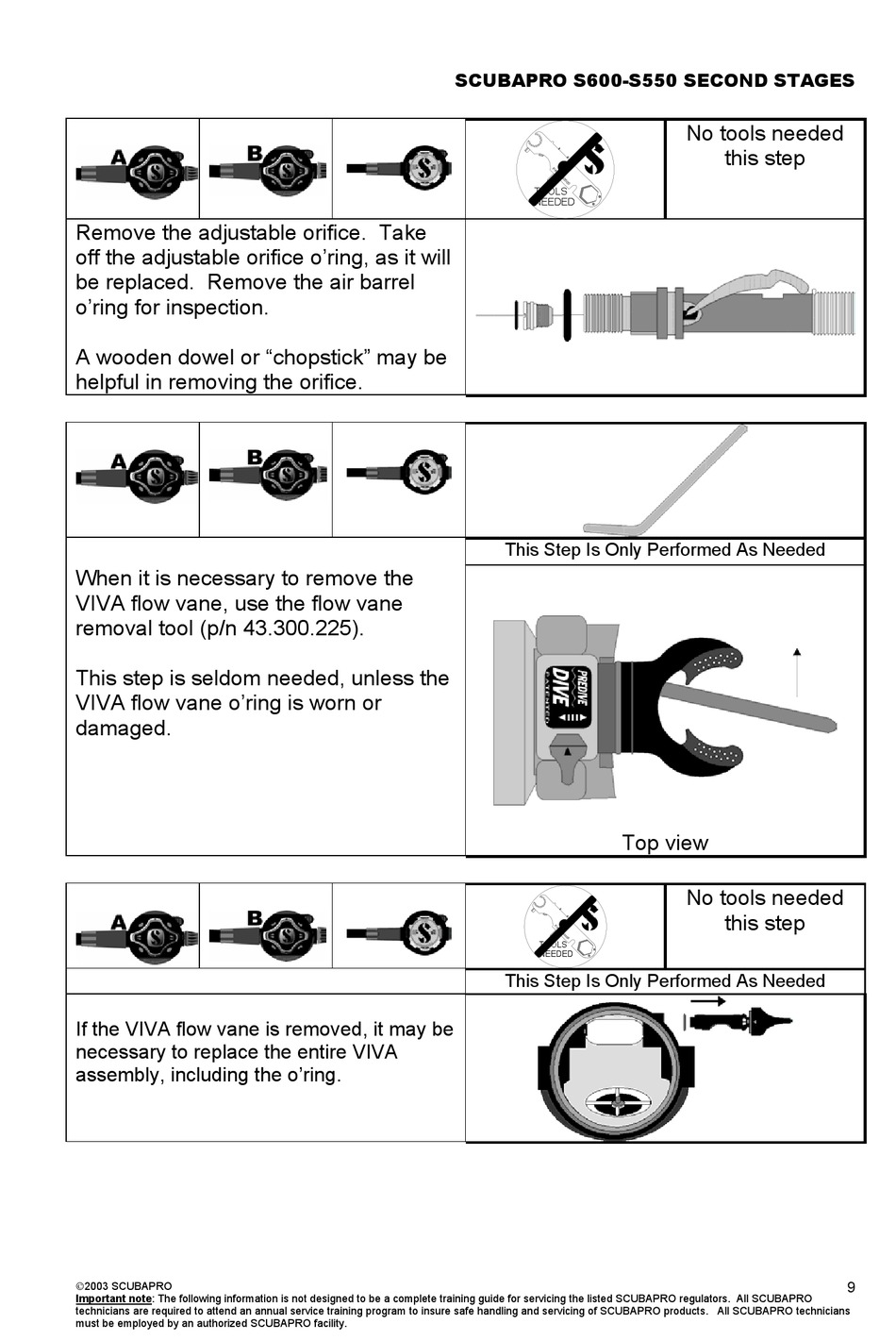

Uwatec S600 Configuration A Repair Manual page 9

Remove the adjustable orifice. Take
off the adjustable orifice o'ring, as it will
be replaced. Remove the air barrel
o'ring for inspection.
A wooden dowel or "chopstick" may be
helpful in removing the orifice.
When it is necessary to remove the
VIVA flow vane, use the flow vane
removal tool (p/n 43.300.225).
This step is seldom needed, unless the
VIVA flow vane o'ring is worn or
damaged.
If the VIVA flow vane is removed, it may be
necessary to replace the entire VIVA
assembly, including the o'ring.
