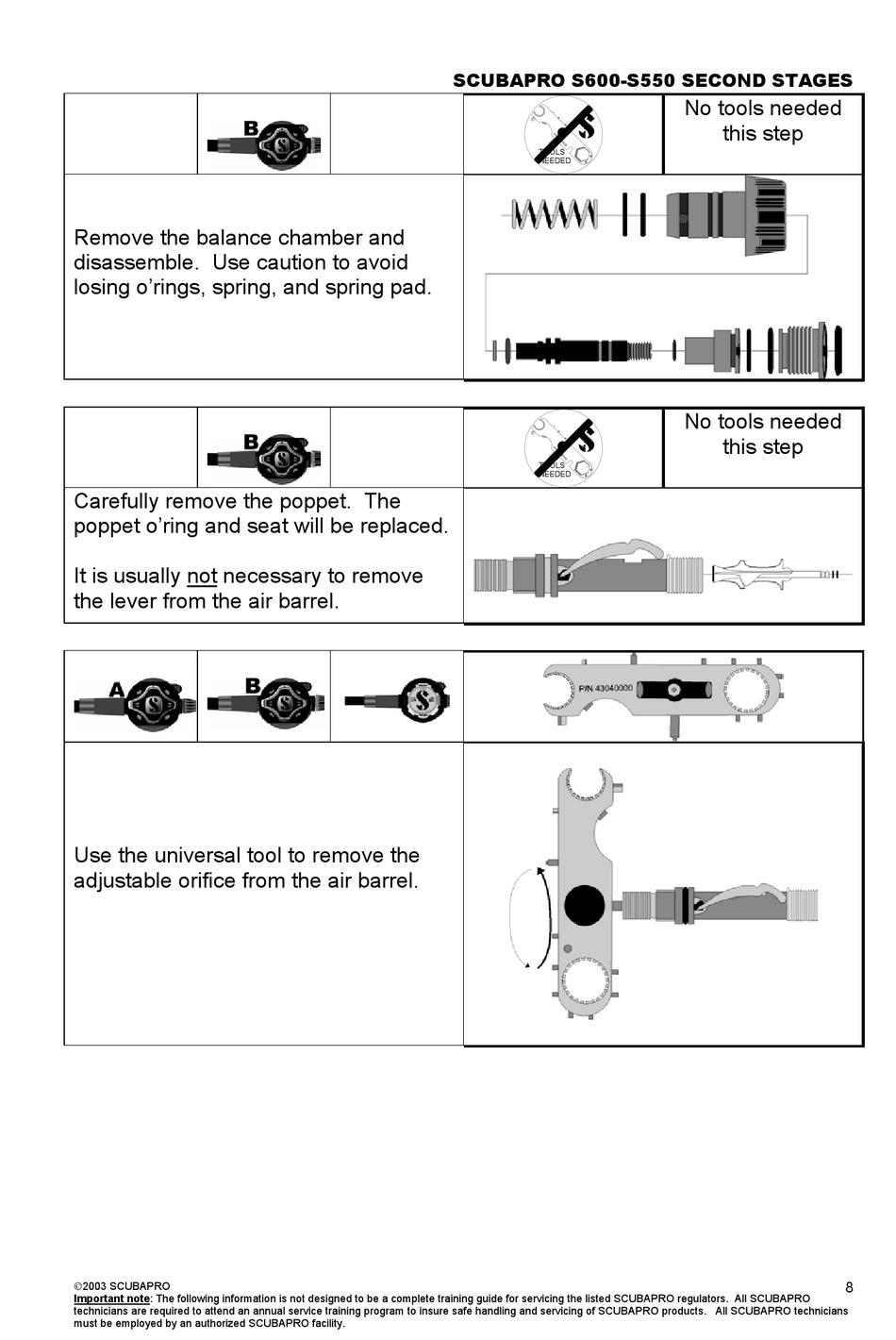

Remove the balance chamber and
disassemble. Use caution to avoid
losing o'rings, spring, and spring pad.
Carefully remove the poppet. The
poppet o'ring and seat will be replaced.
It is usually not necessary to remove
the lever from the air barrel.
Use the universal tool to remove the
adjustable orifice from the air barrel.
2003 SCUBAPRO
Important note: The following information is not designed to be a complete training guide for servicing the listed SCUBAPRO regulators. All SCUBAPRO
technicians are required to attend an annual service training program to insure safe handling and servicing of SCUBAPRO products. All SCUBAPRO technicians
must be employed by an authorized SCUBAPRO facility.
SCUBAPRO S600-S550 SECOND STAGES
TOOLS
NEEDED
TOOLS
NEEDED
No tools needed
this step
No tools needed
this step
8
